2027 Cub Cadet Z3 54S - 112009

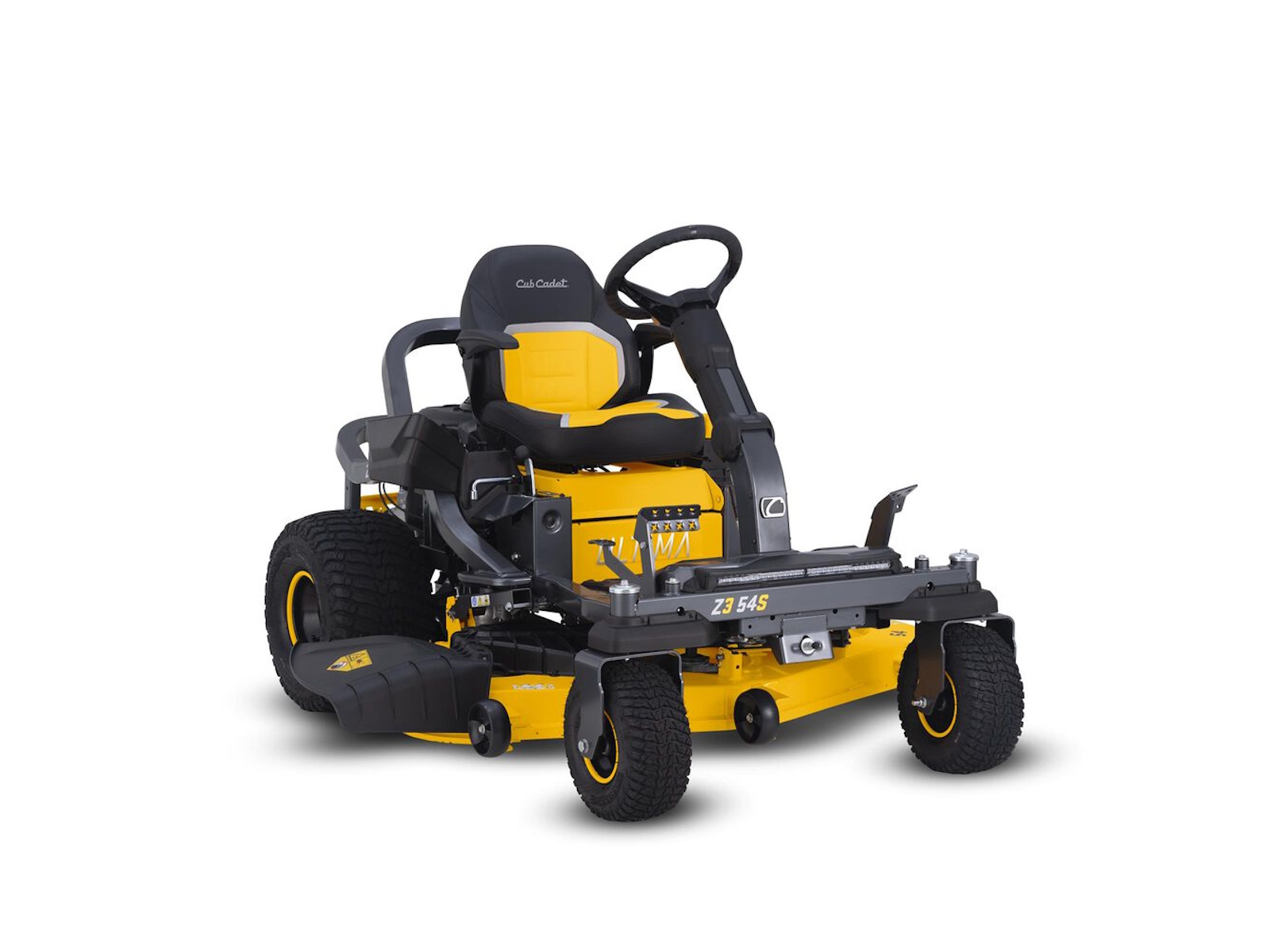

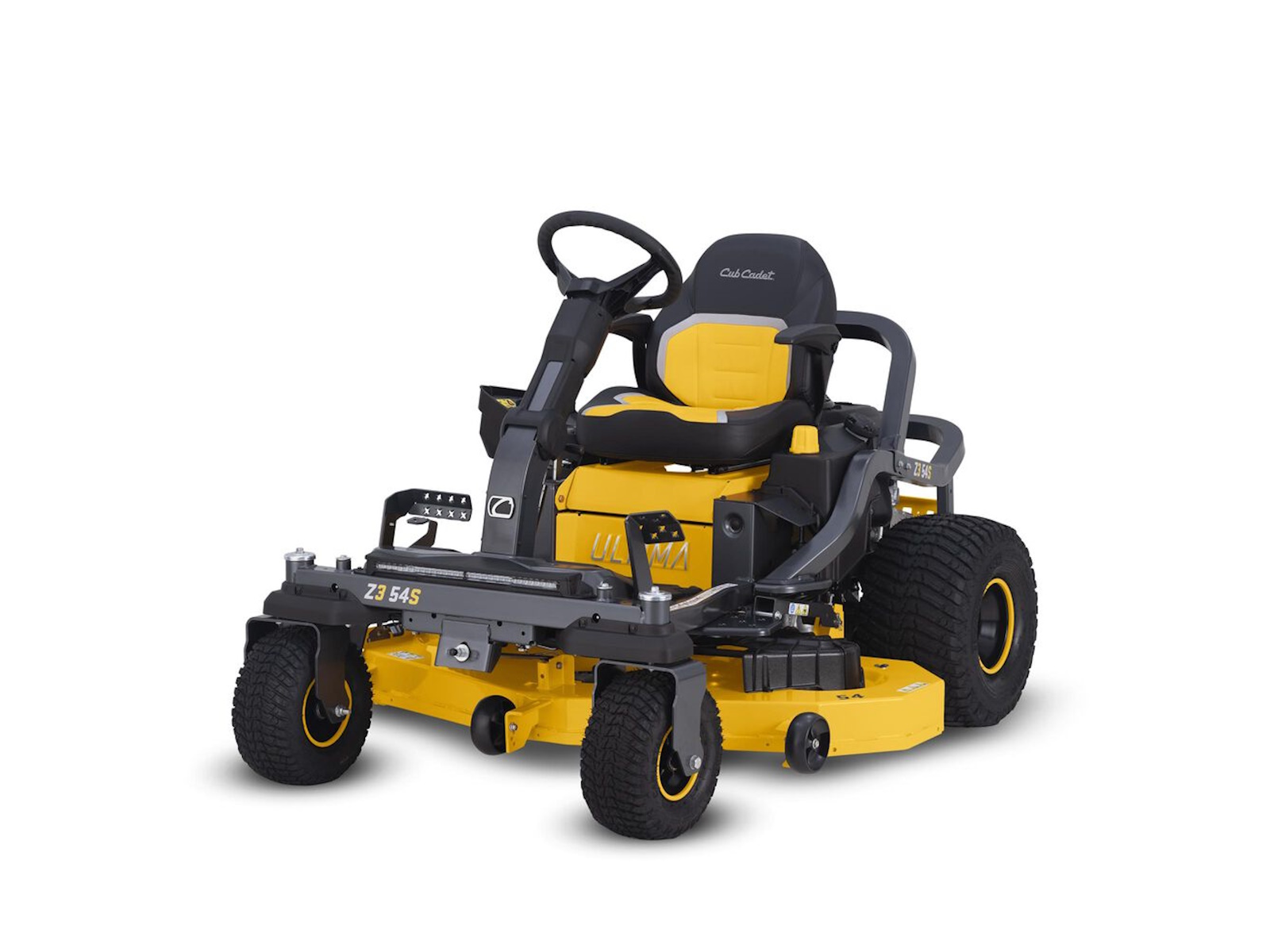

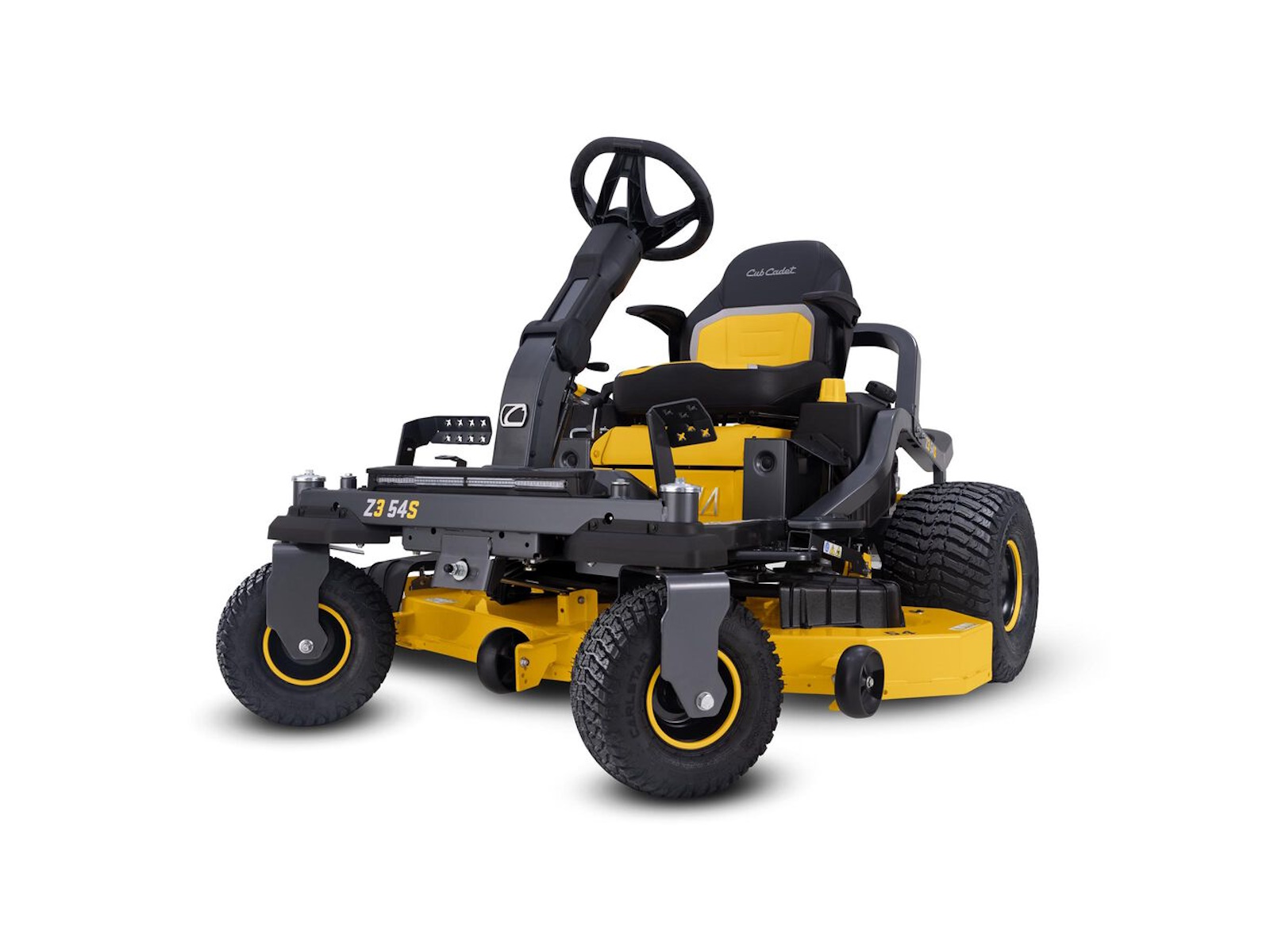

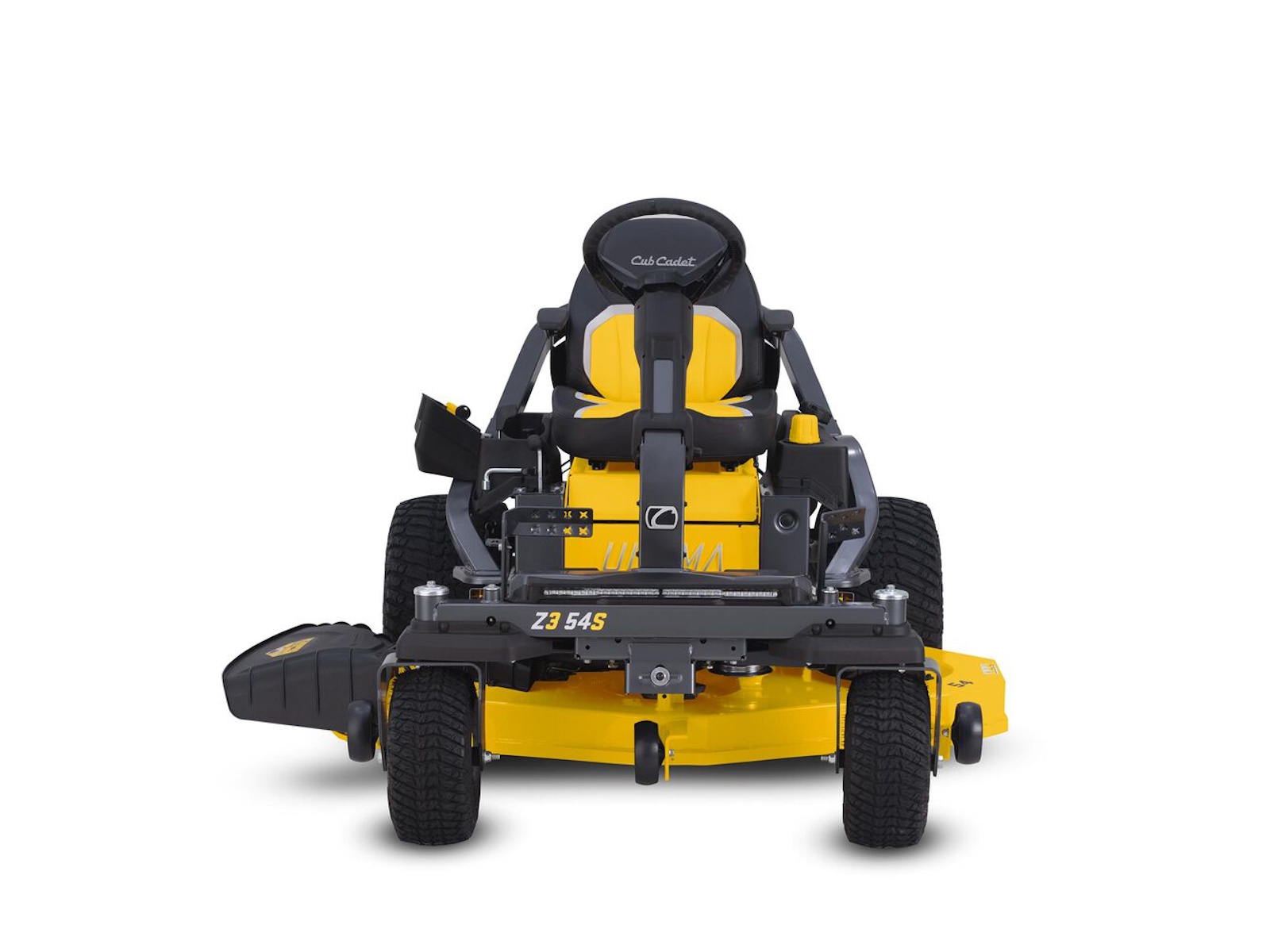

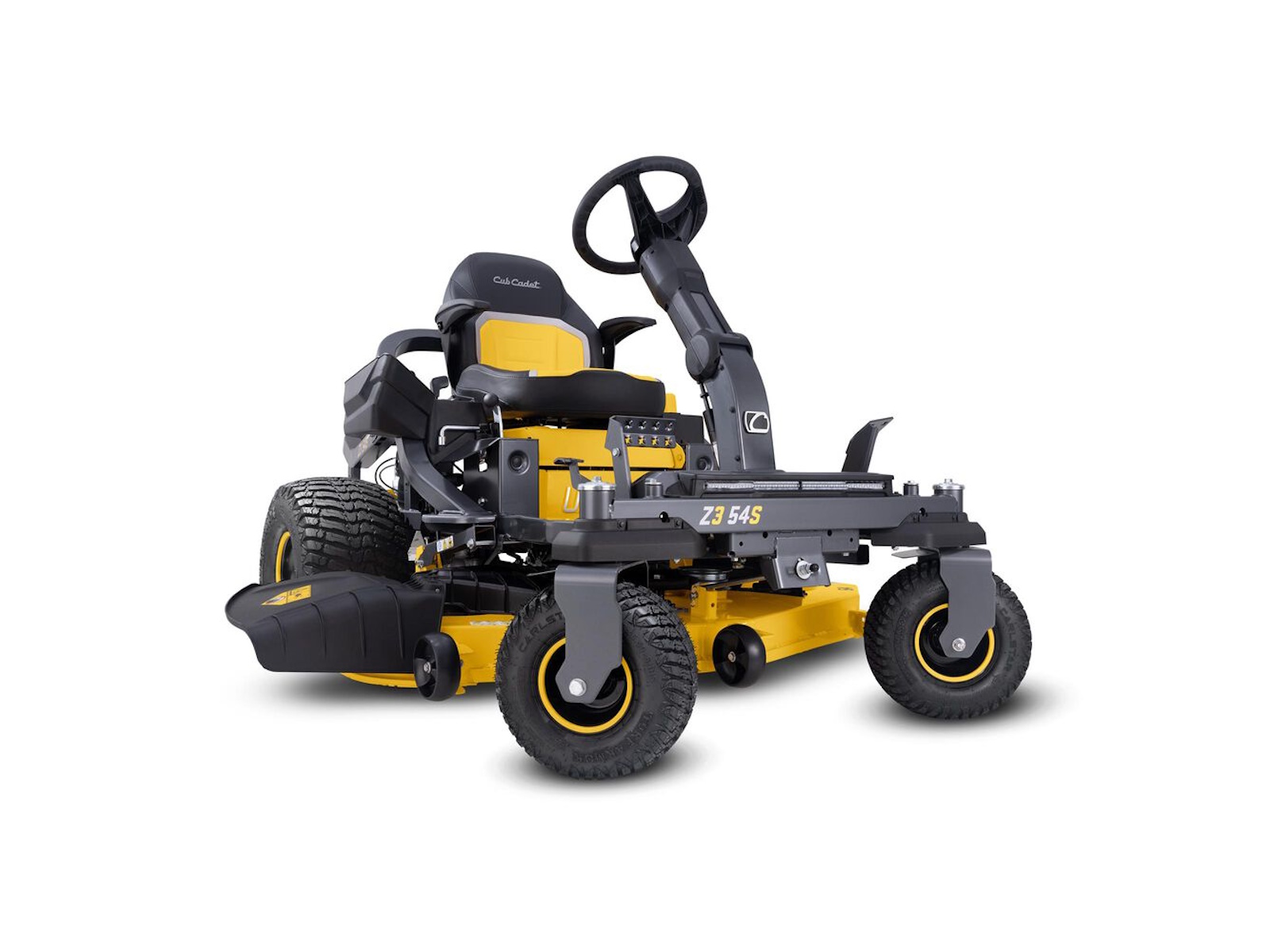

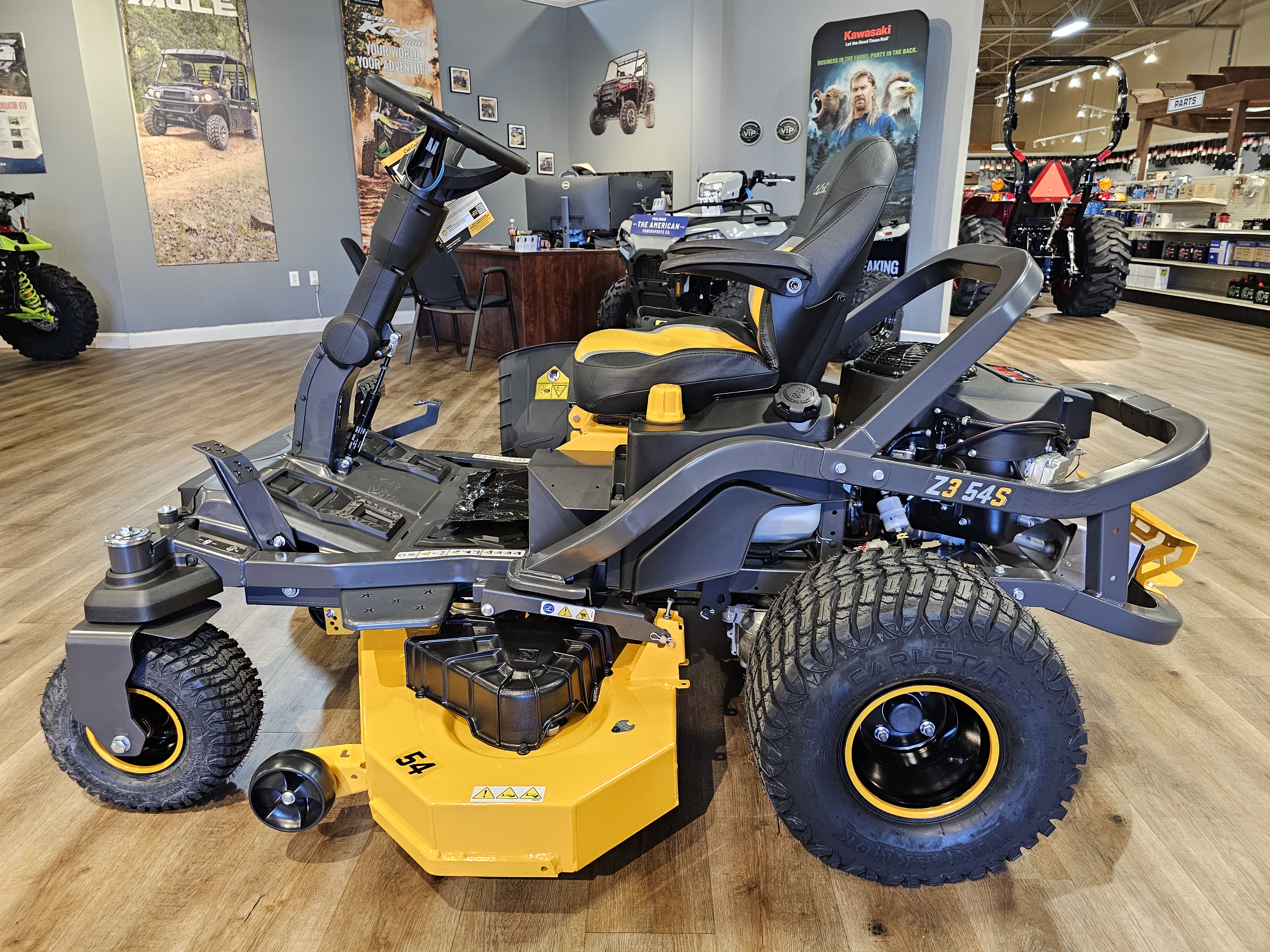

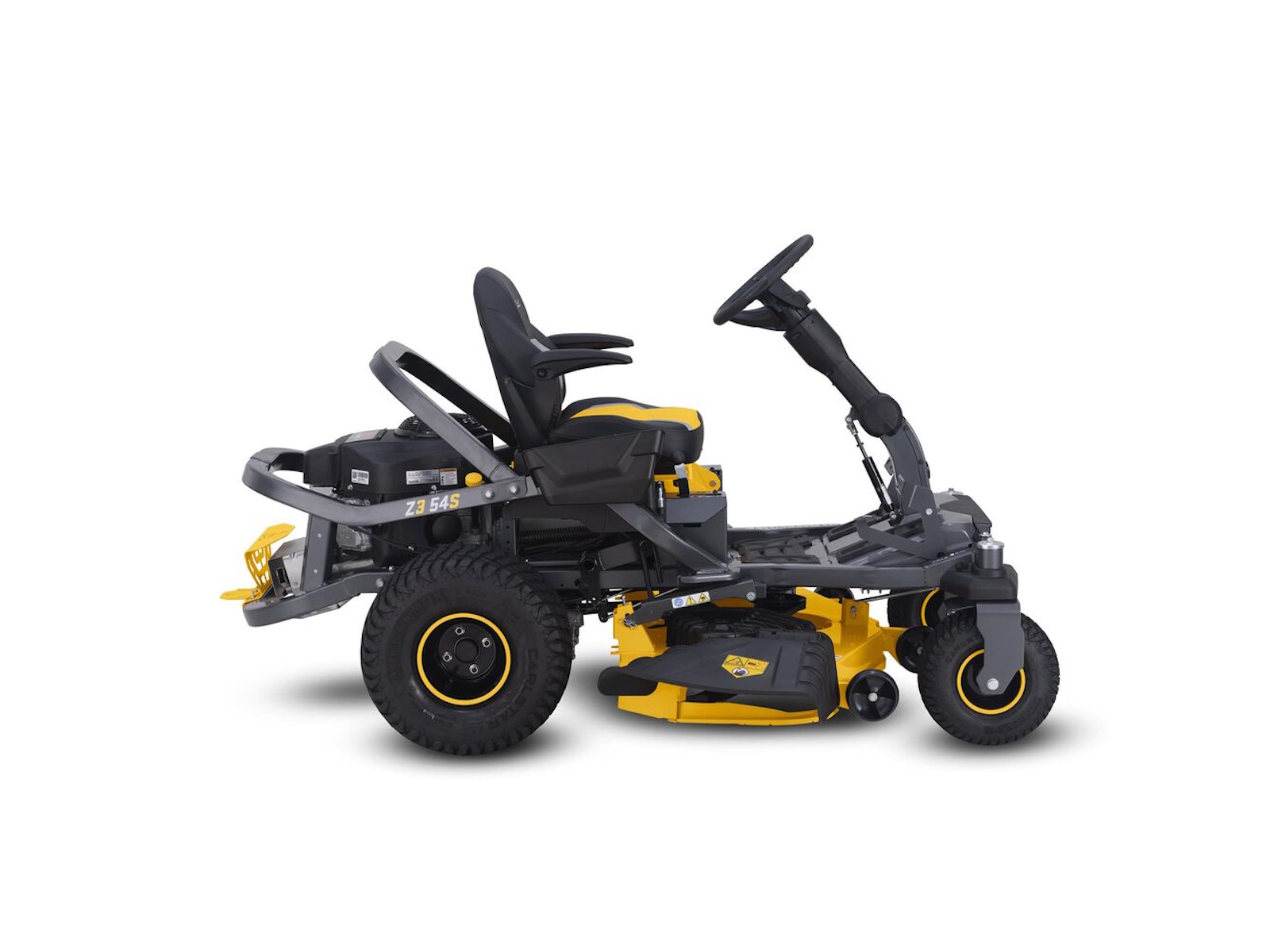

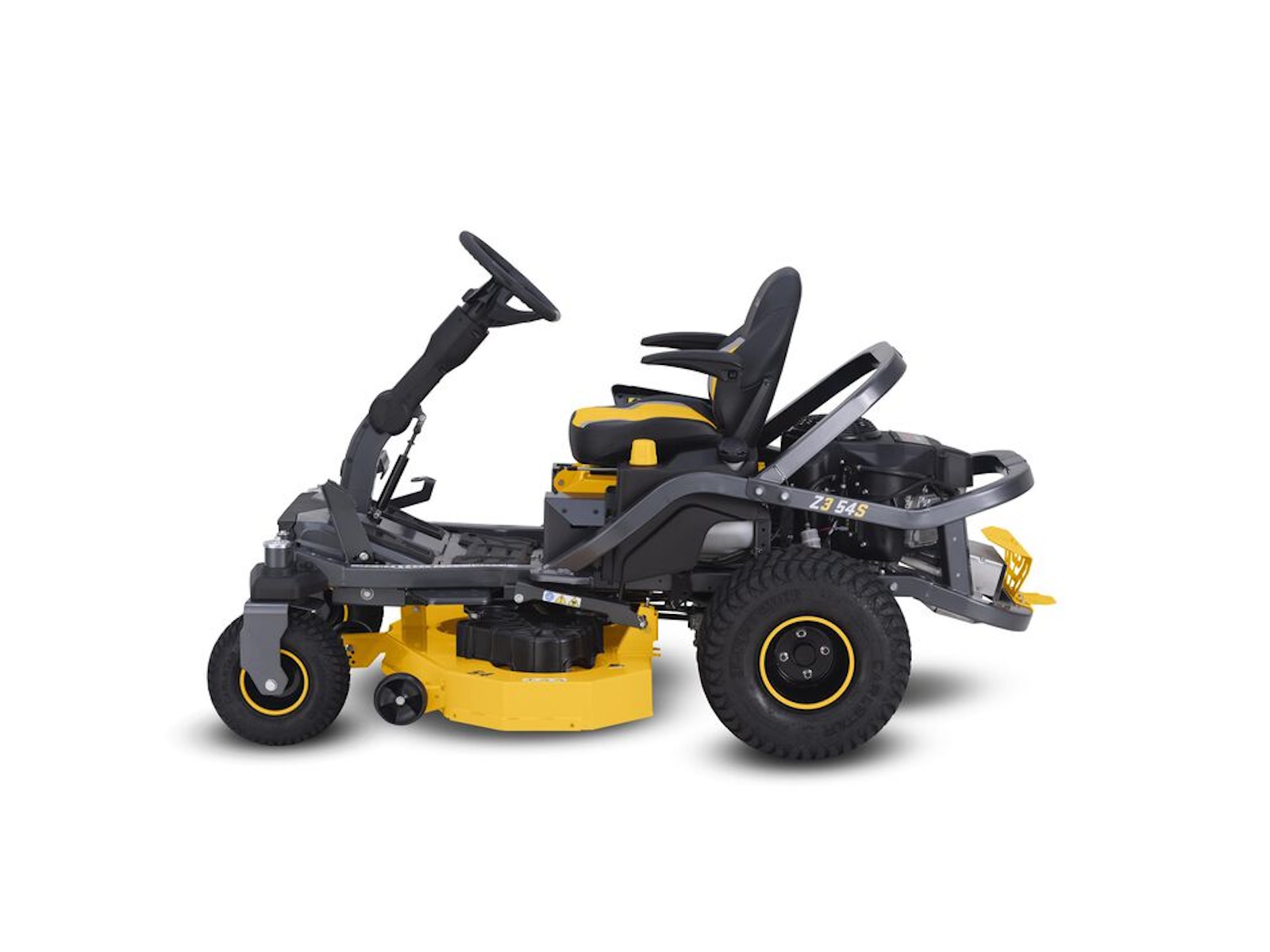

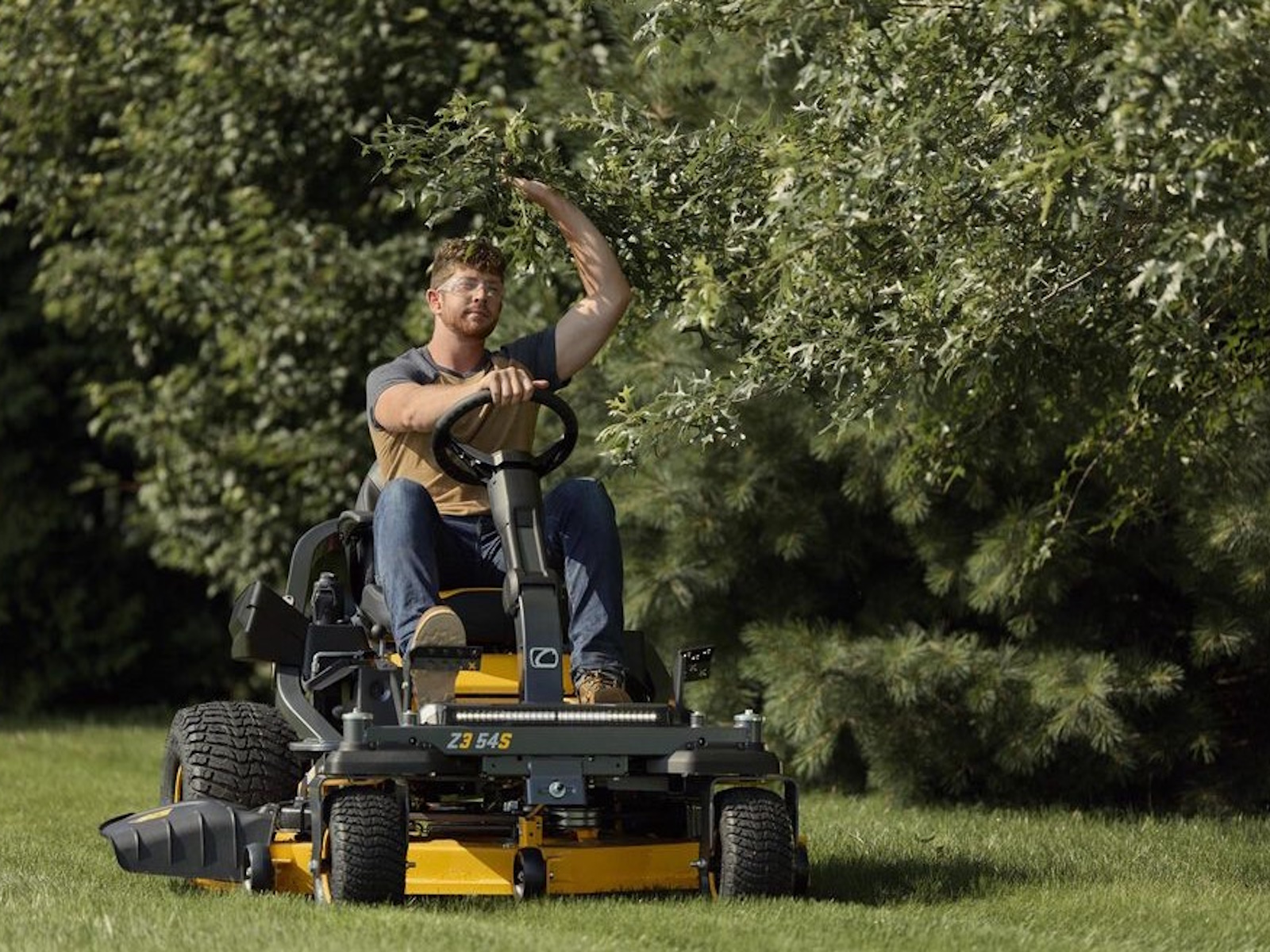

2027 Cub Cadet Z3 54S

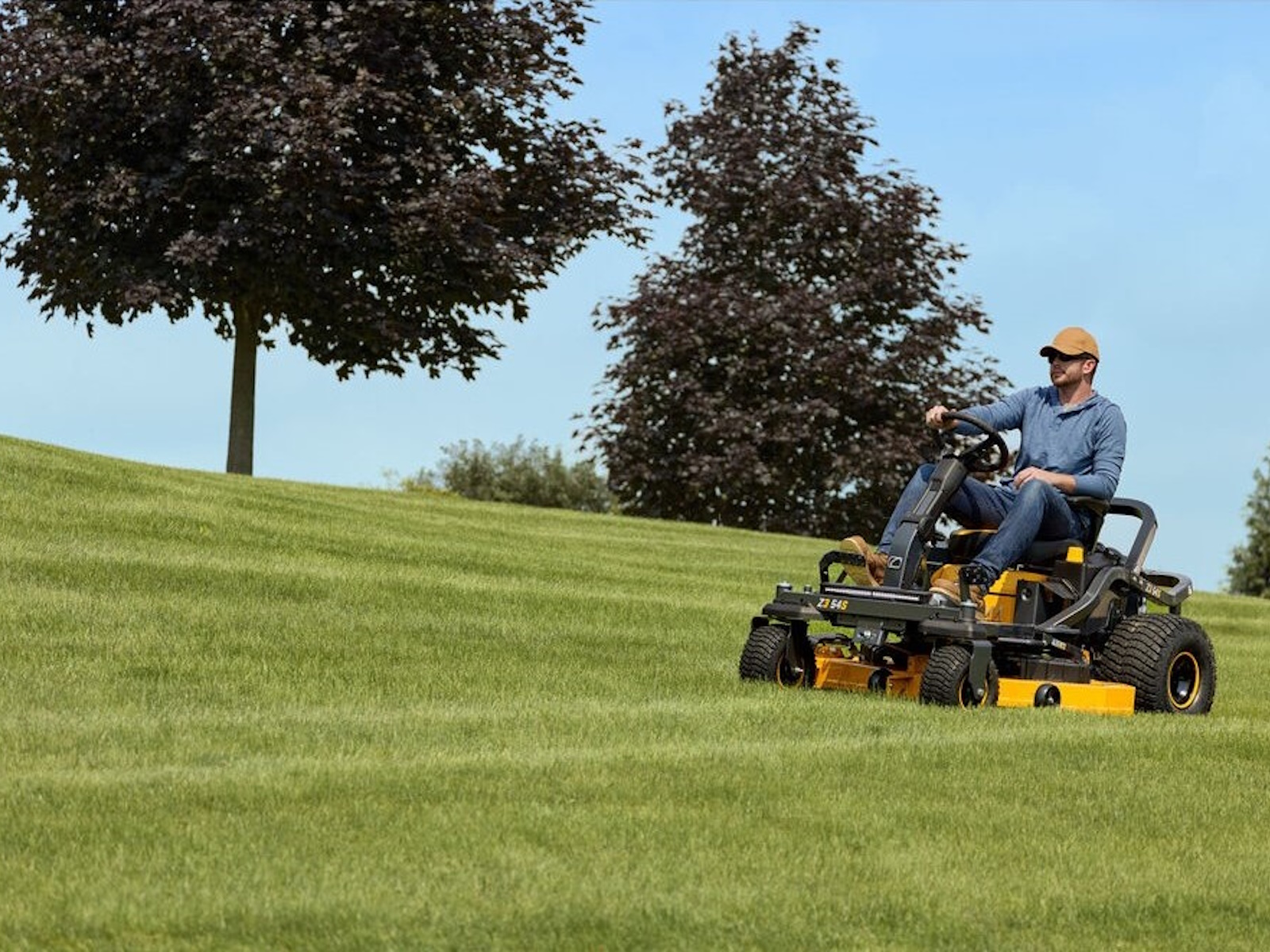

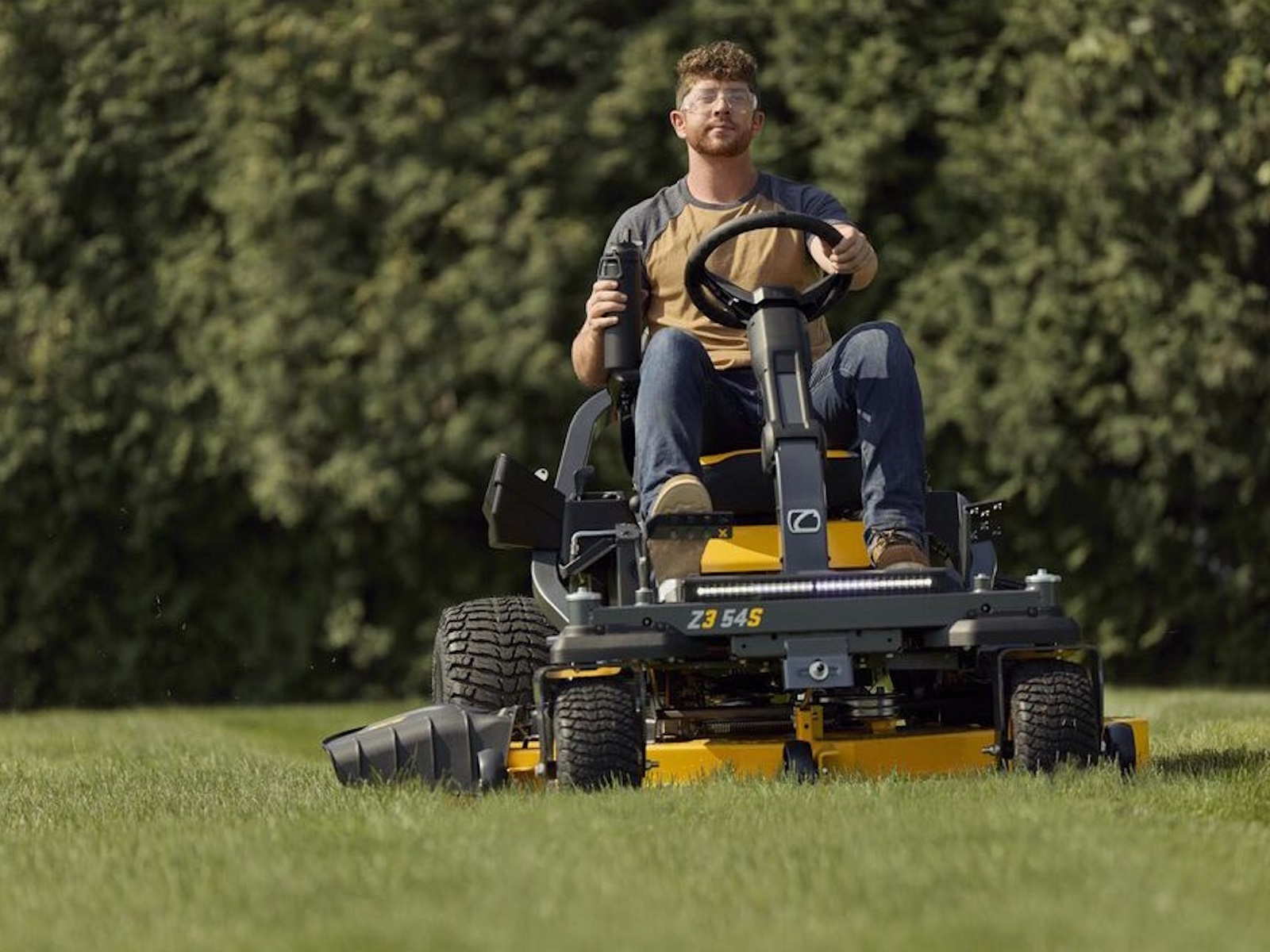

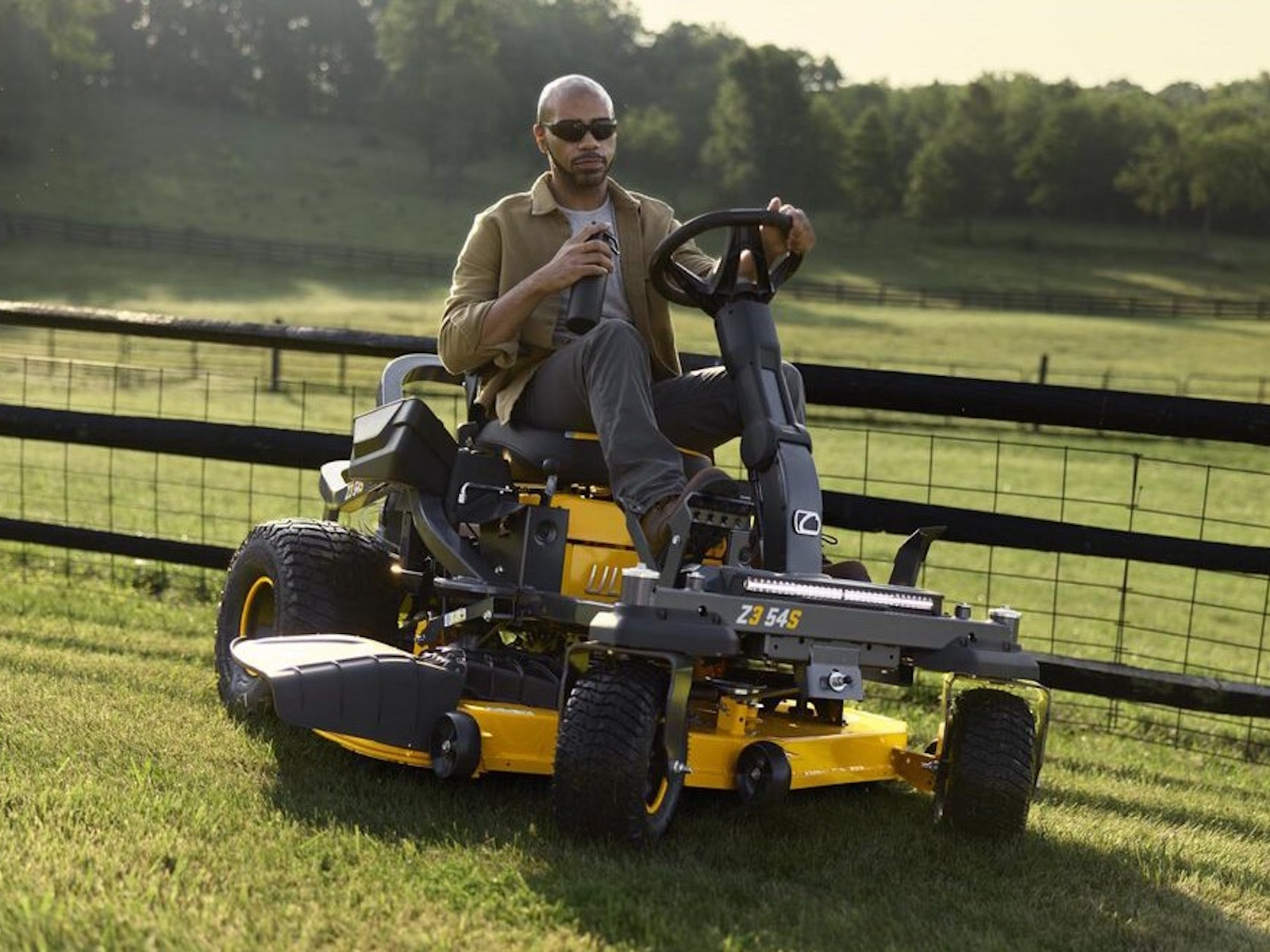

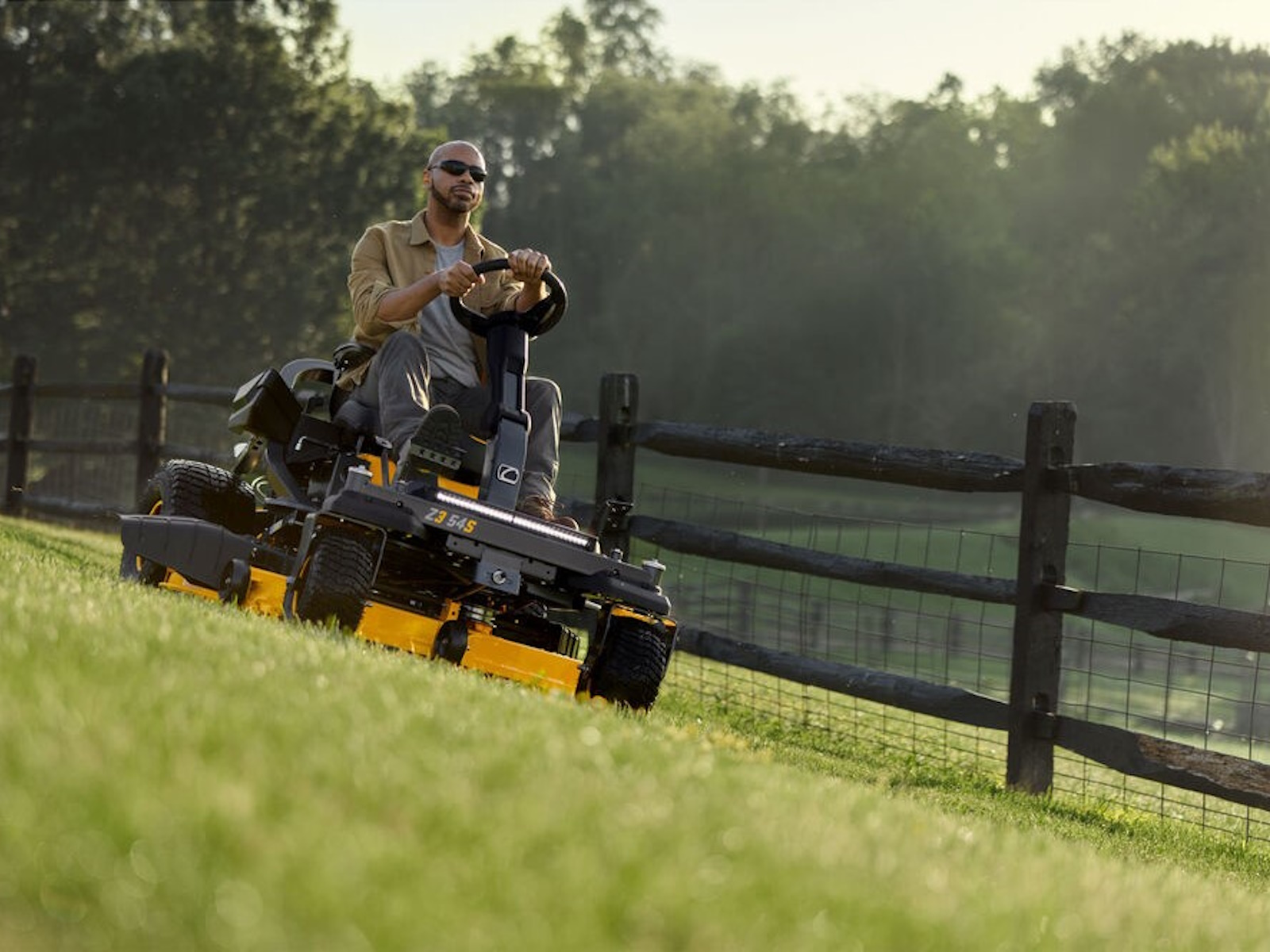

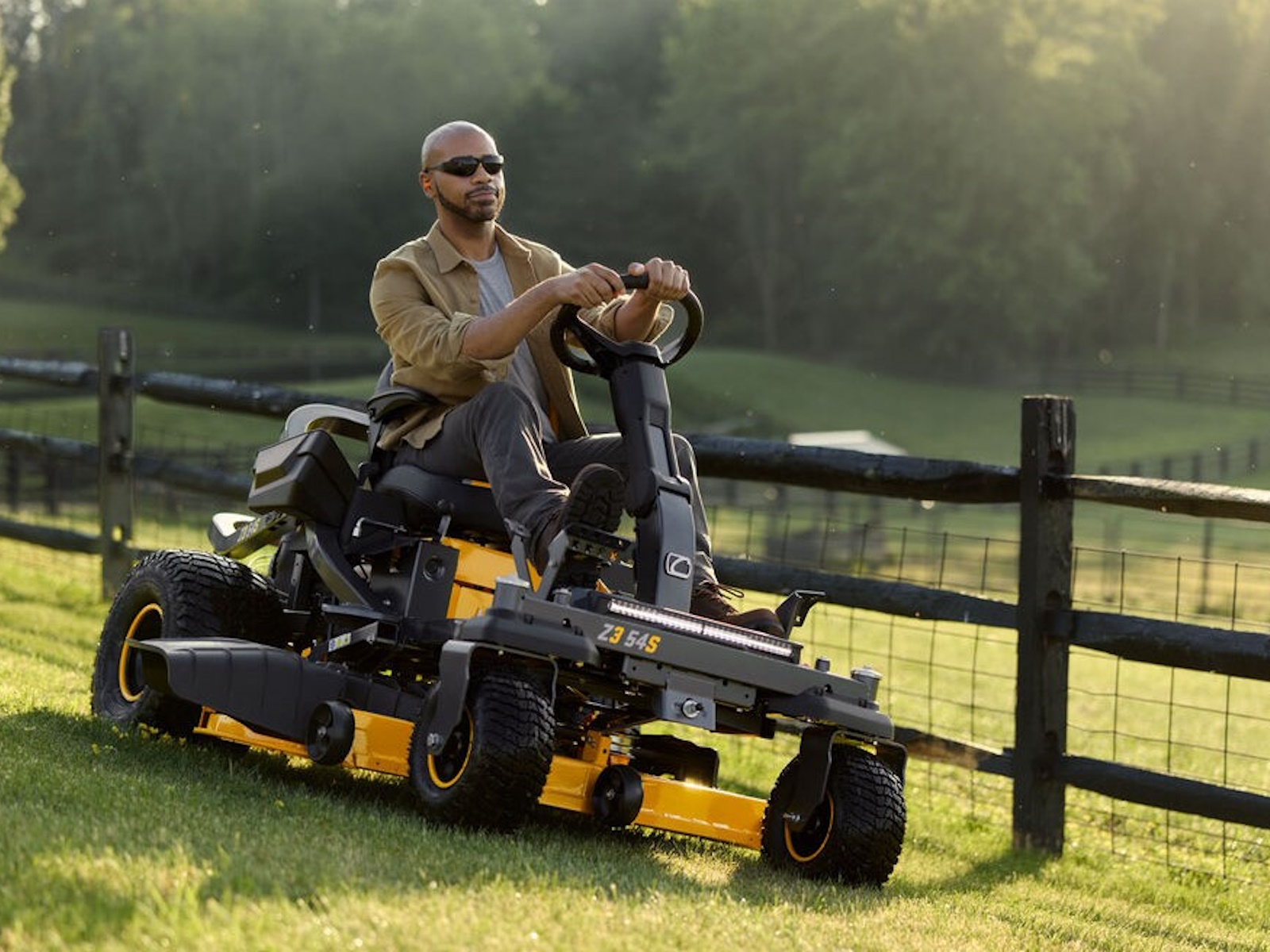

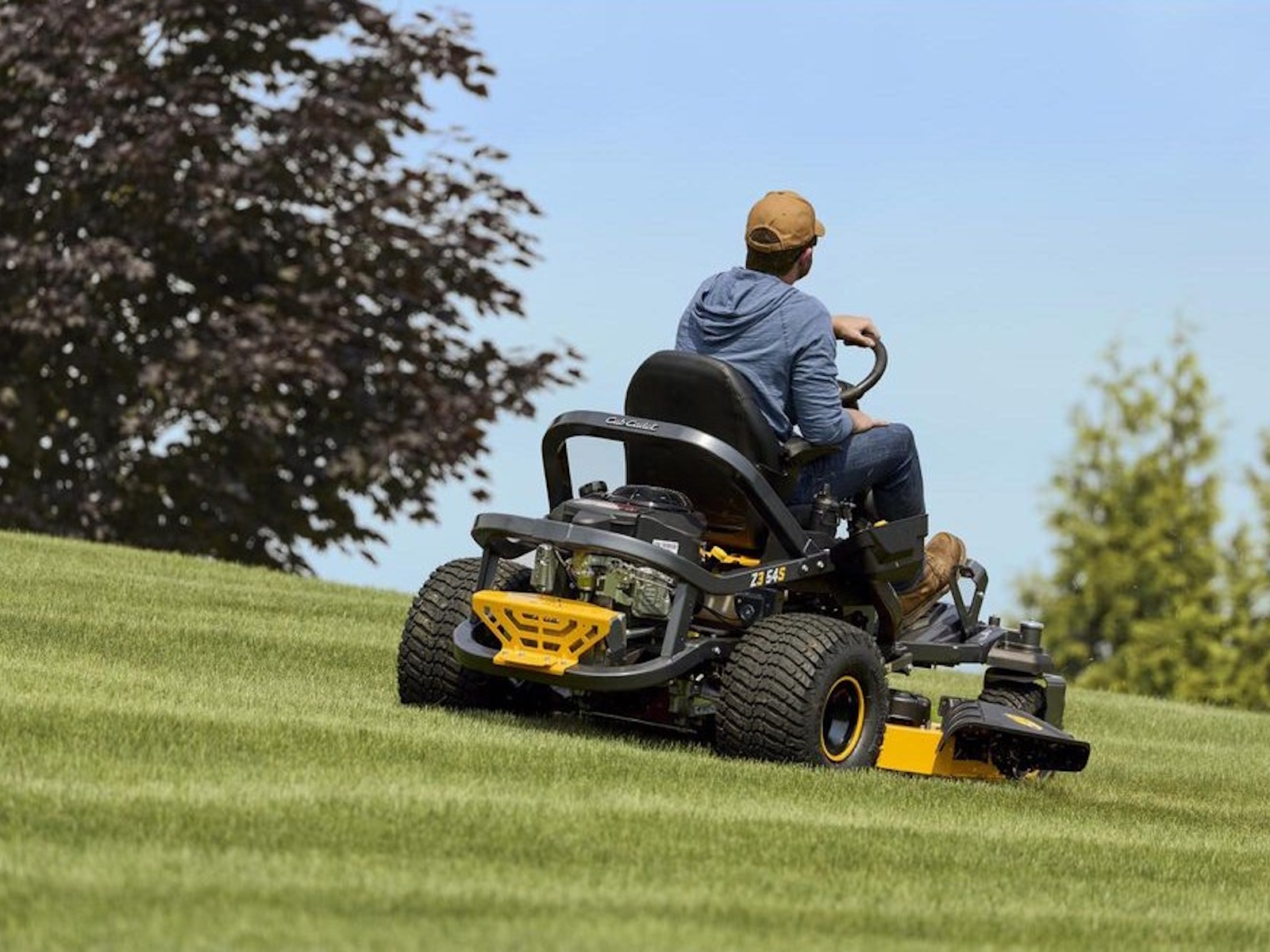

Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z3 54S 54-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees**. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.

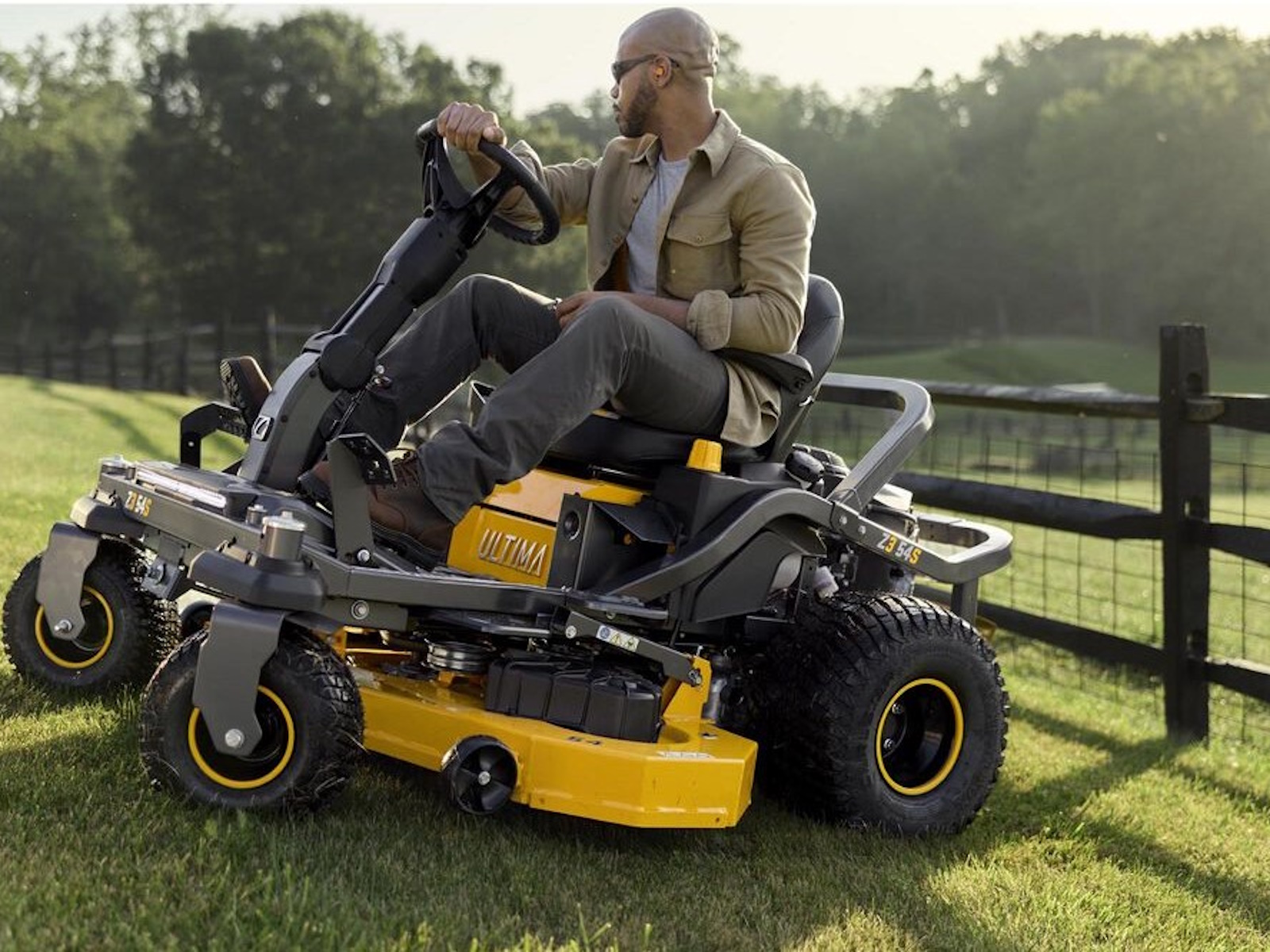

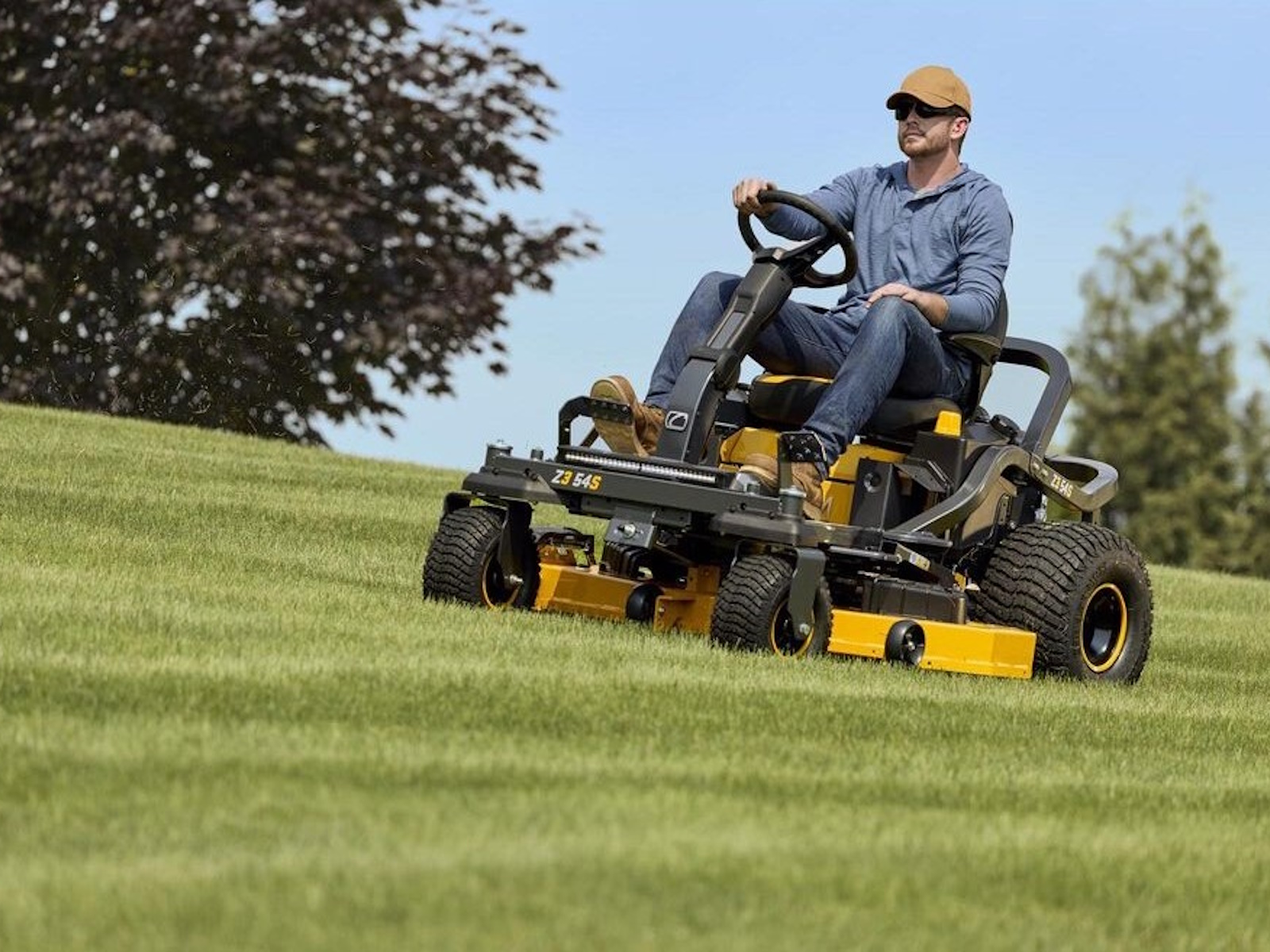

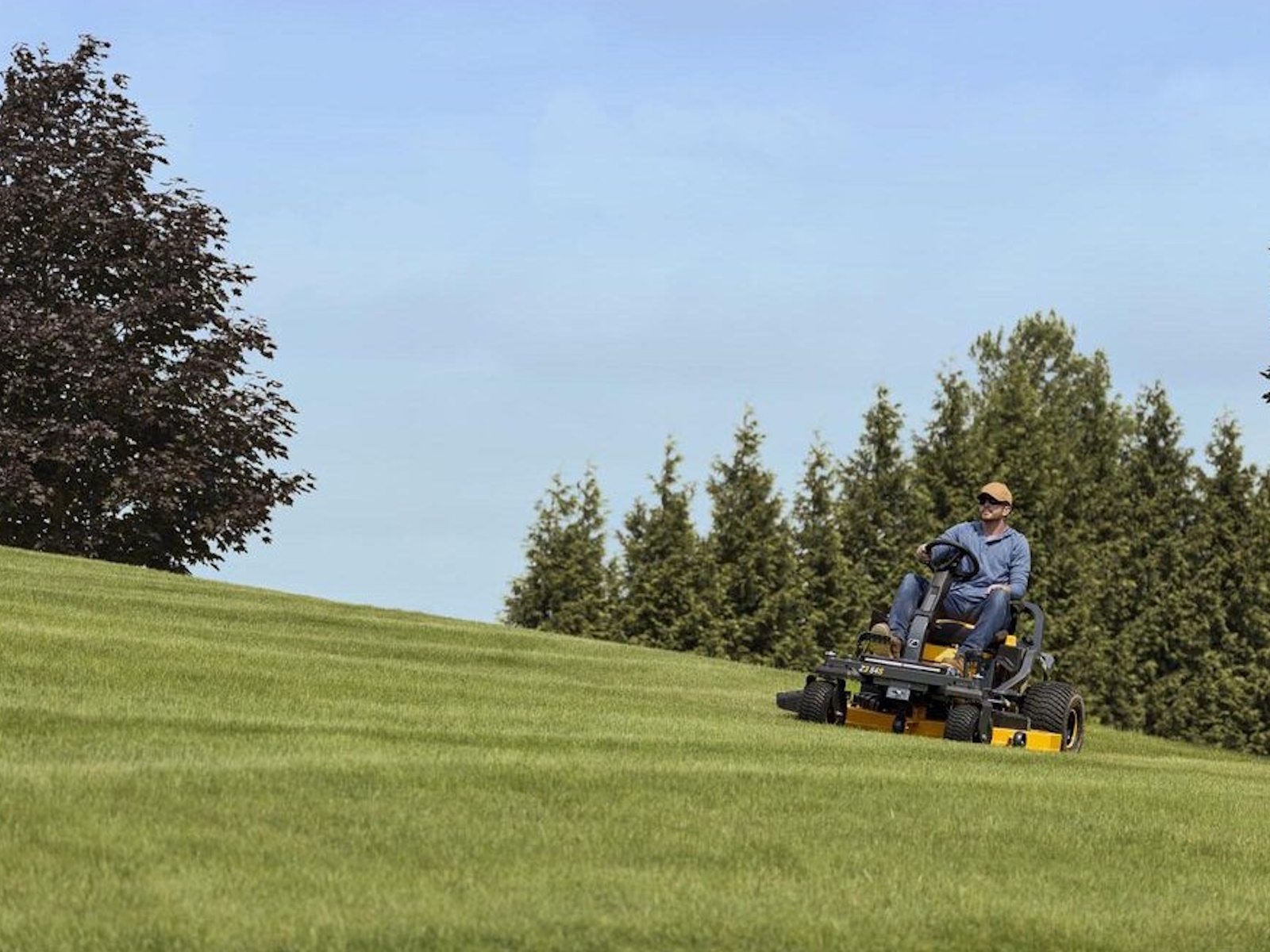

• Experience the ultimate in control even when facing slopes and hills up to 20-degrees with Cub Cadet® steering wheel zero-turns equipped with patented Synchro-Steer™ technology.
• The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine. A 23 HP* Kawasaki® twin-cylinder OHV engine delivers high-performance to tackle your yard.
• A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
• Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.

Features May Include:

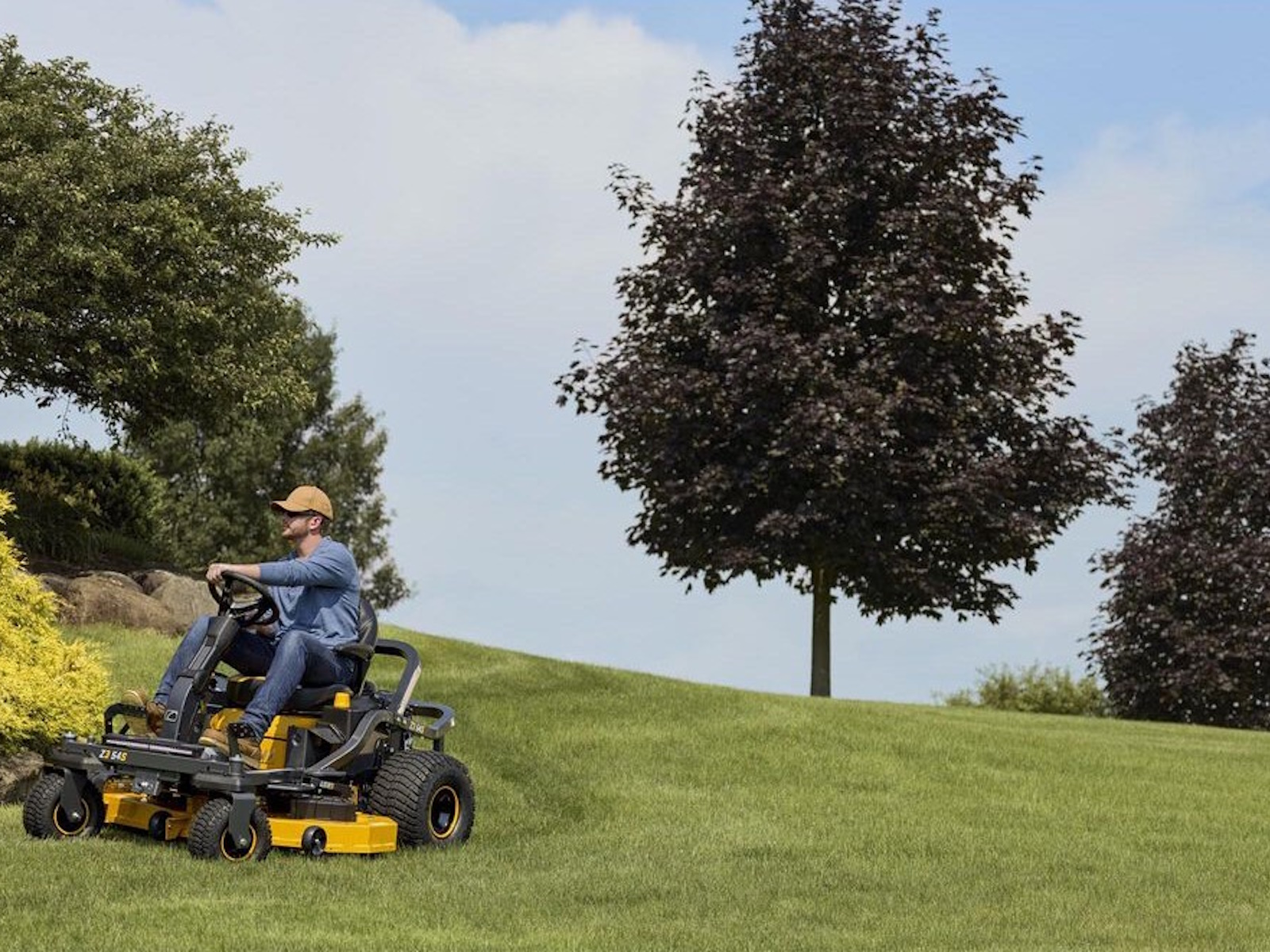

Synchro-Steer™ Technology

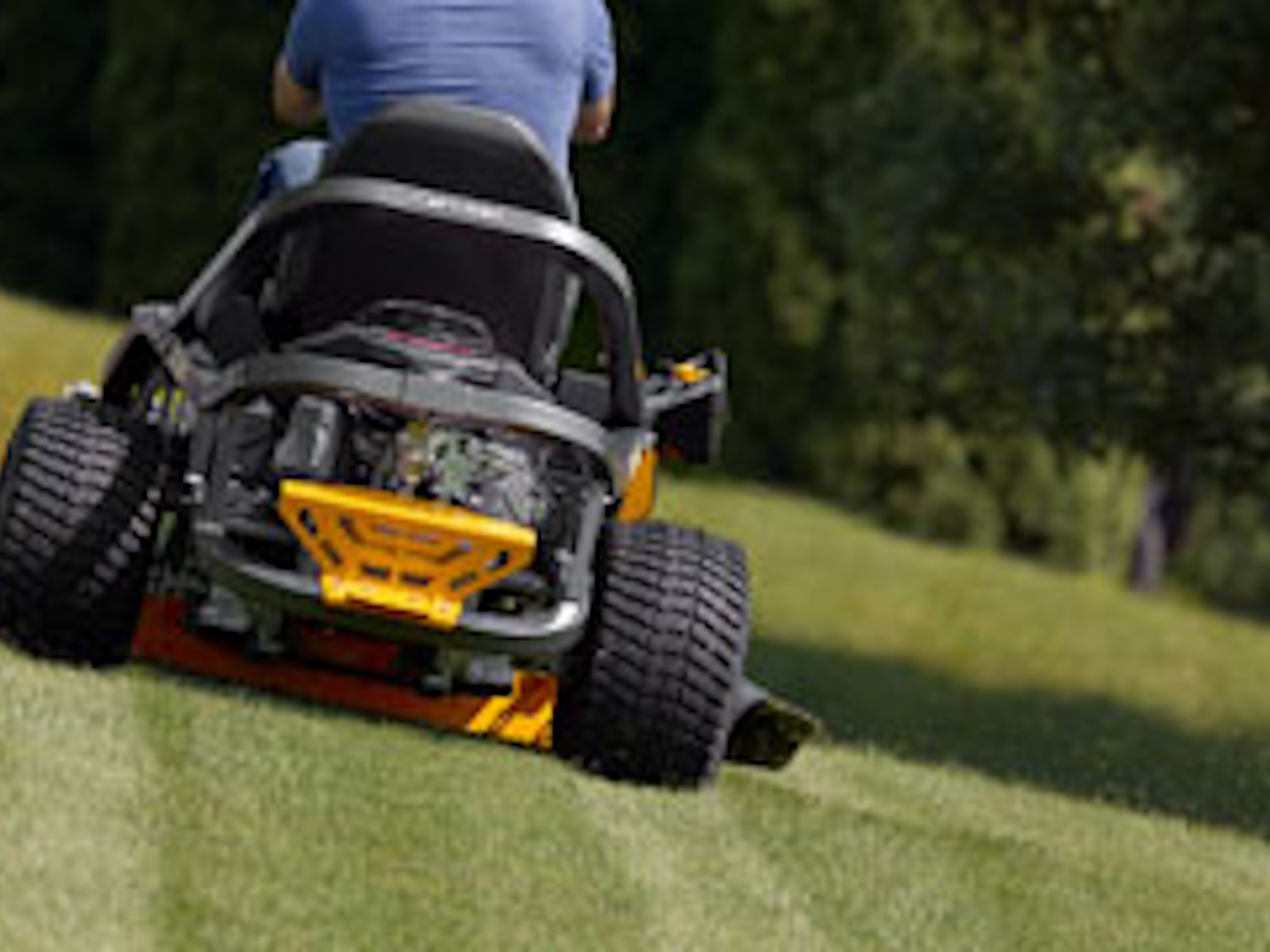

• Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides and slopes up to 20-degrees*.

2x2 Tubular Frame

• Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.

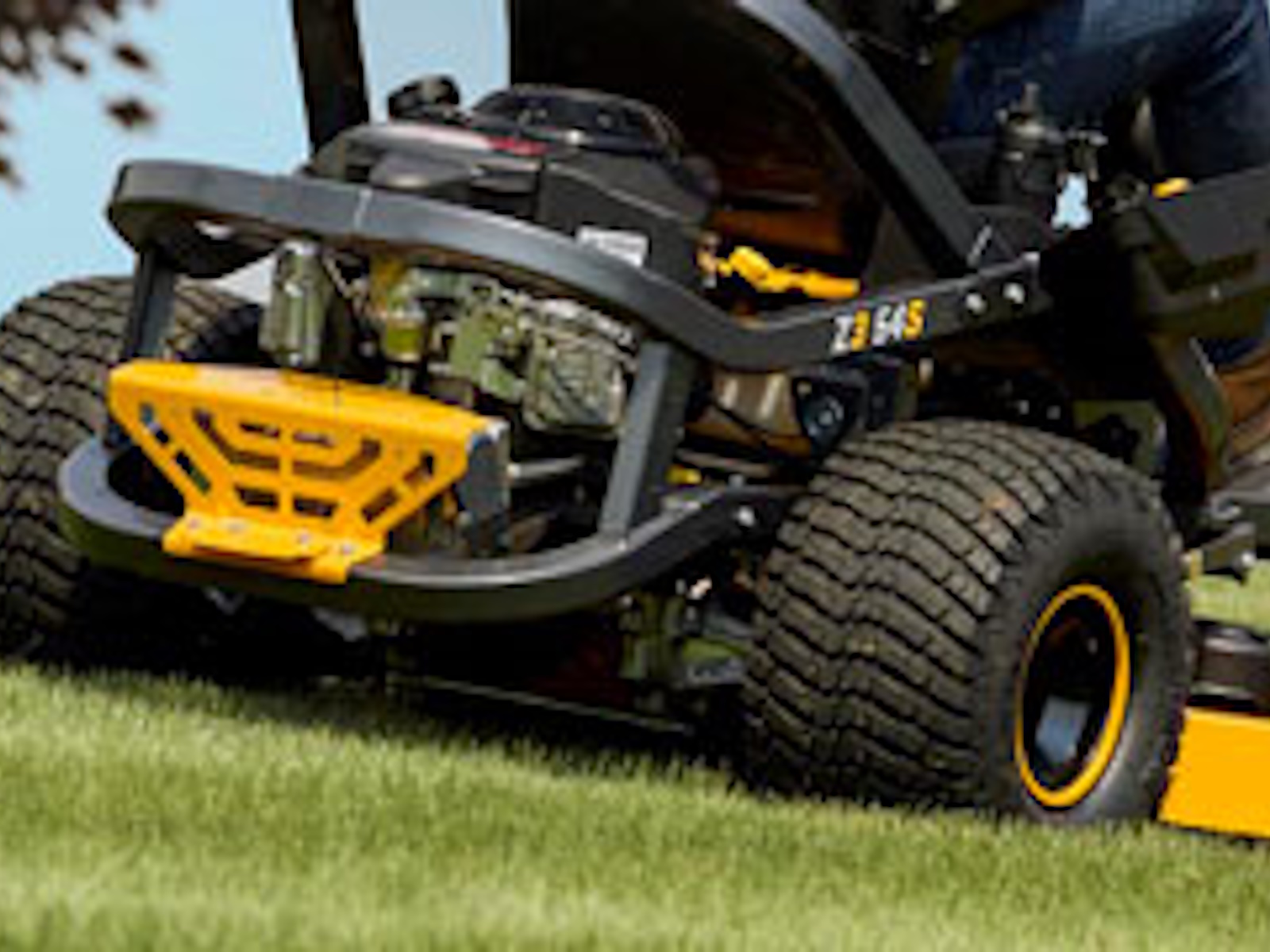

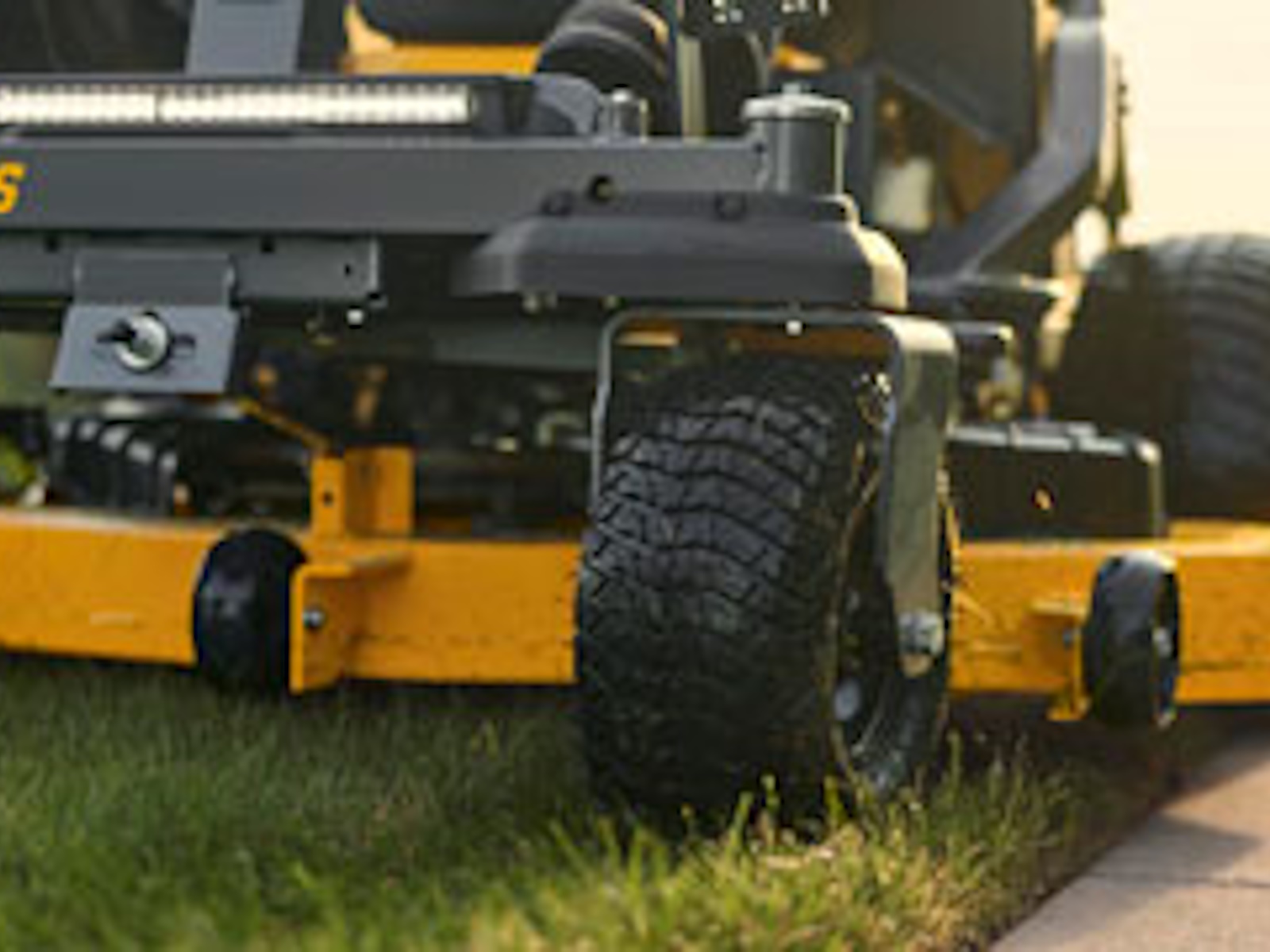

Front Axle:

• Trim with precision thanks to an offset front axle designed to deliver a quality cut.

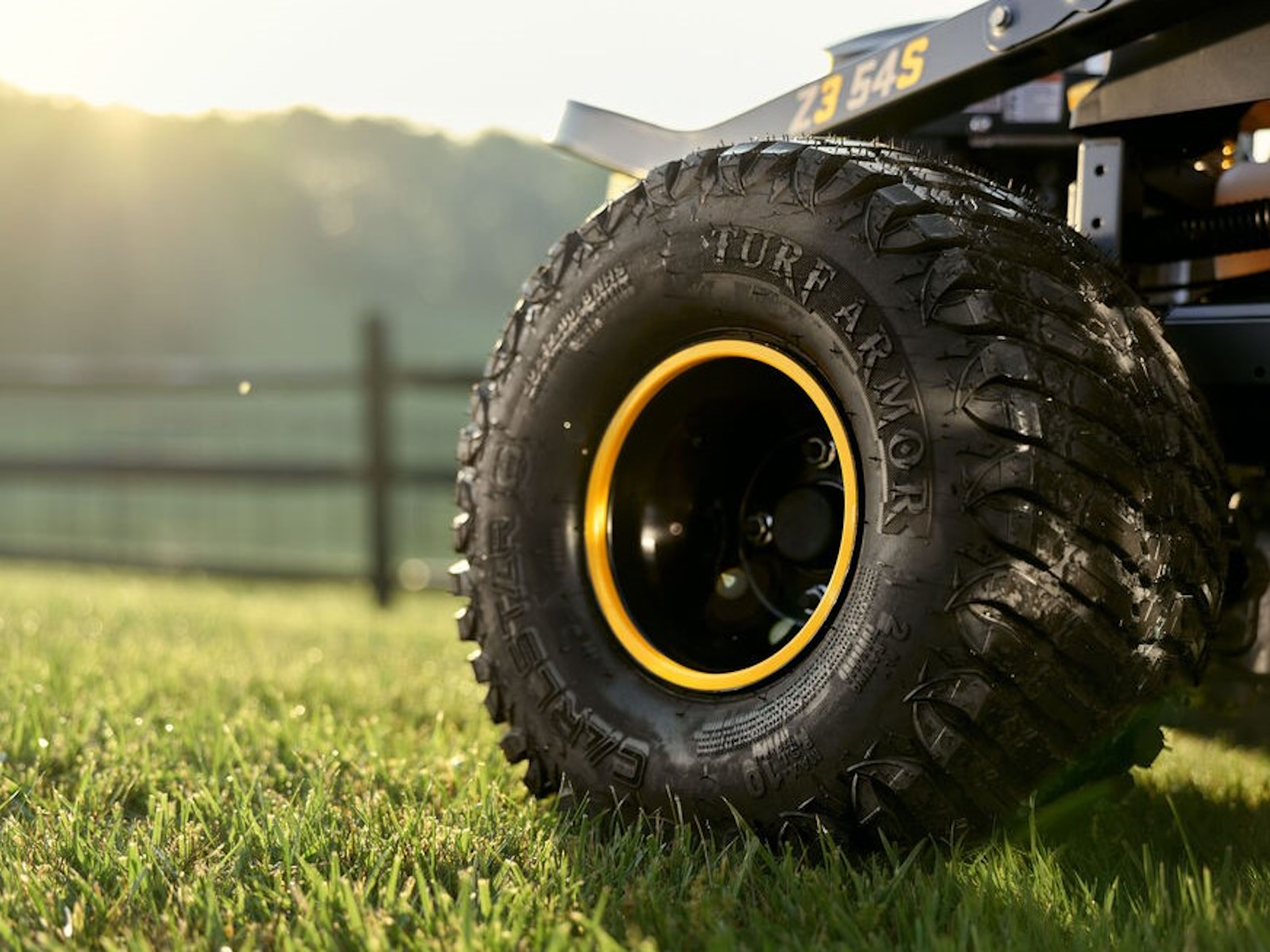

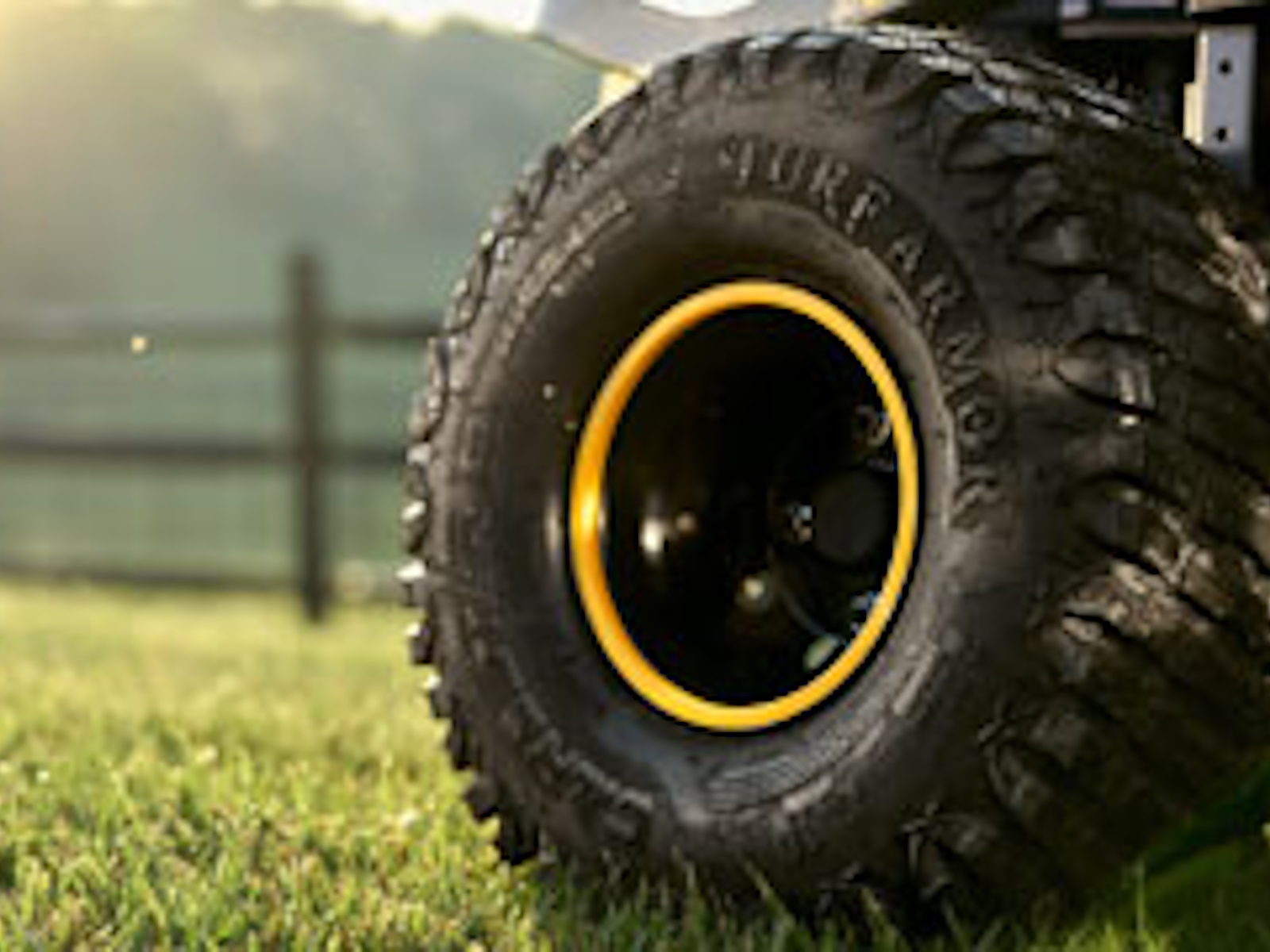

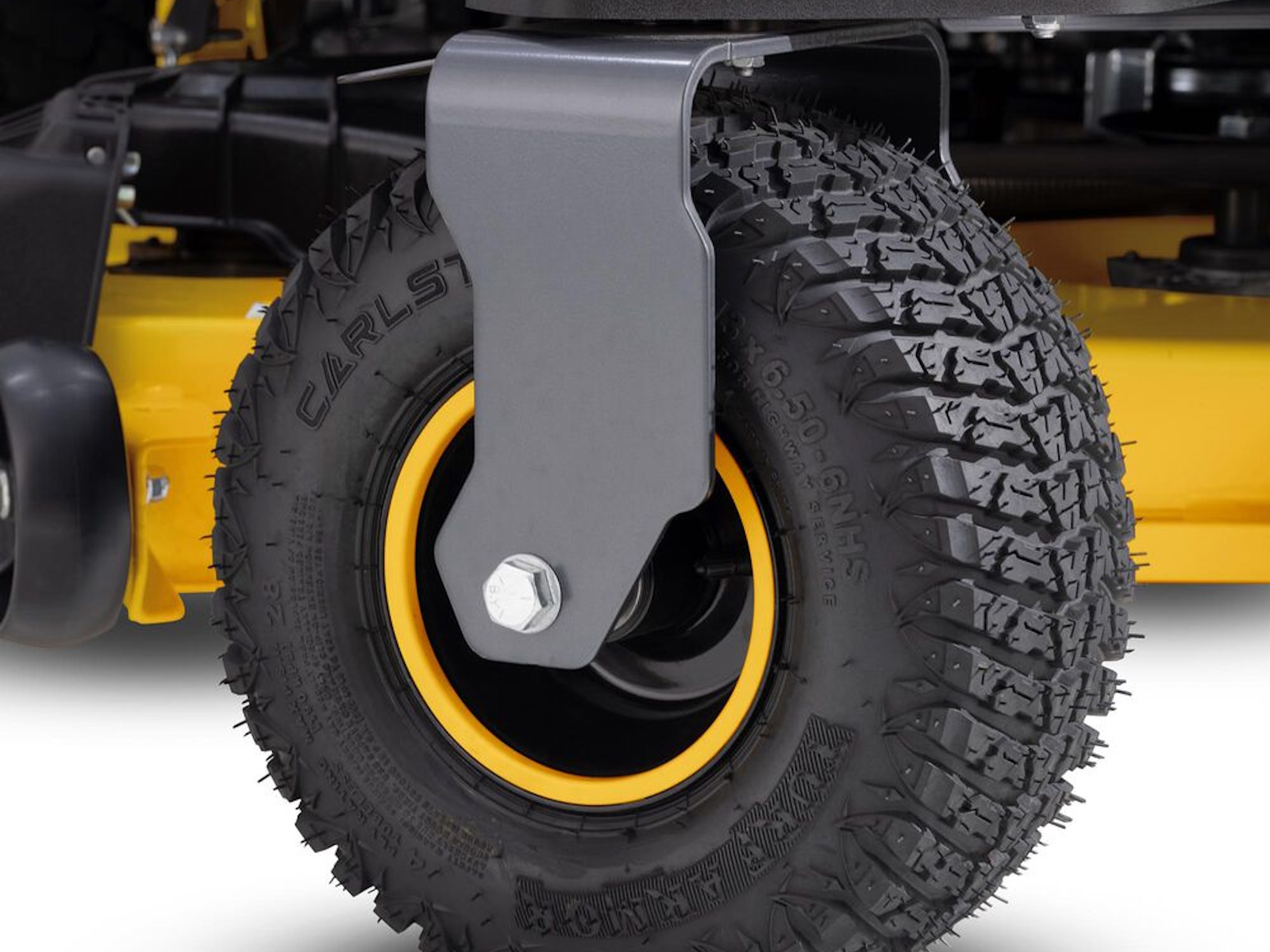

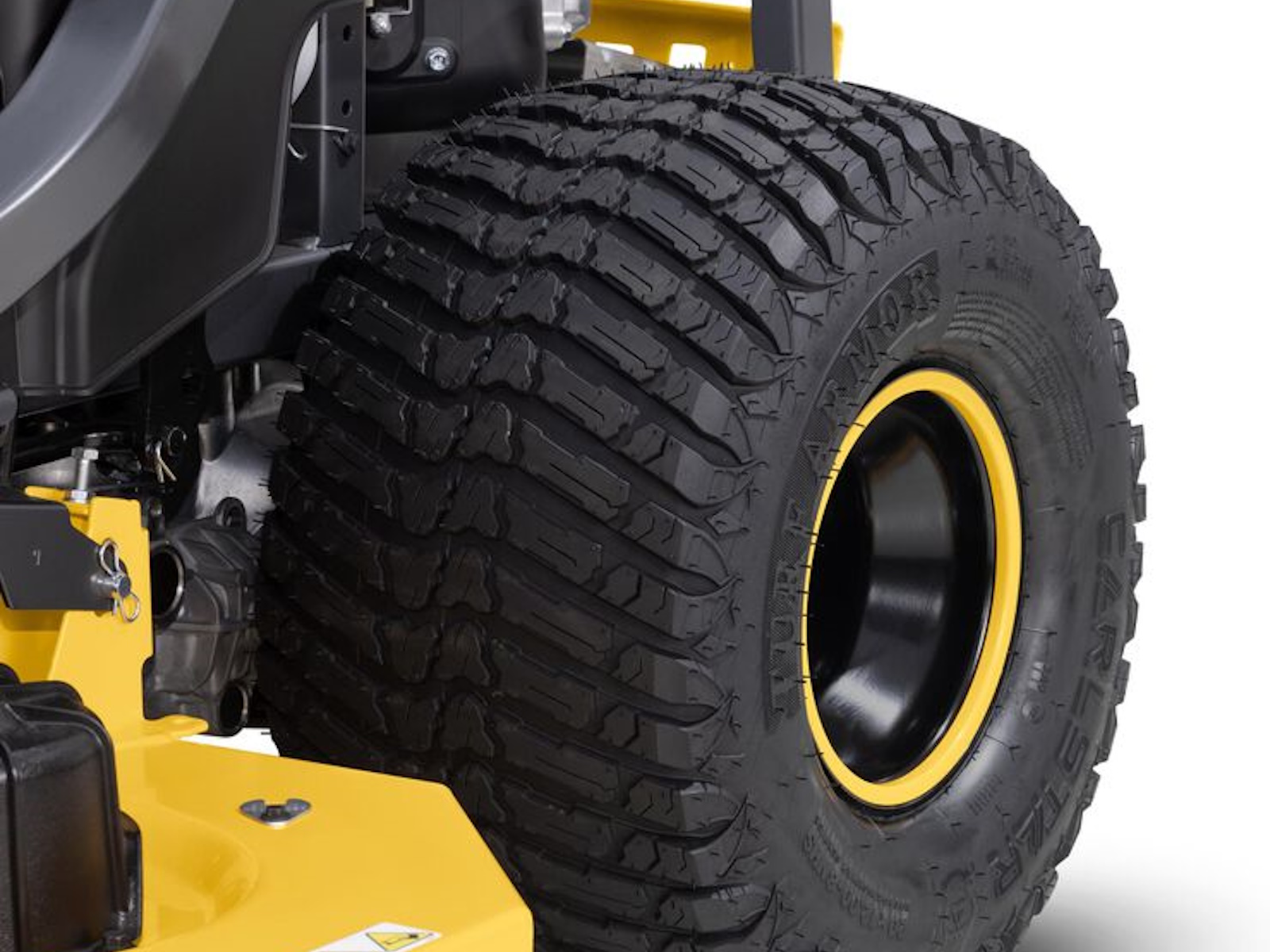

Turf Armor® Tires

• Tackle wet, uneven terrain in style with an aggressive tire tread designed to deliver reliable traction and minimize turfing. .

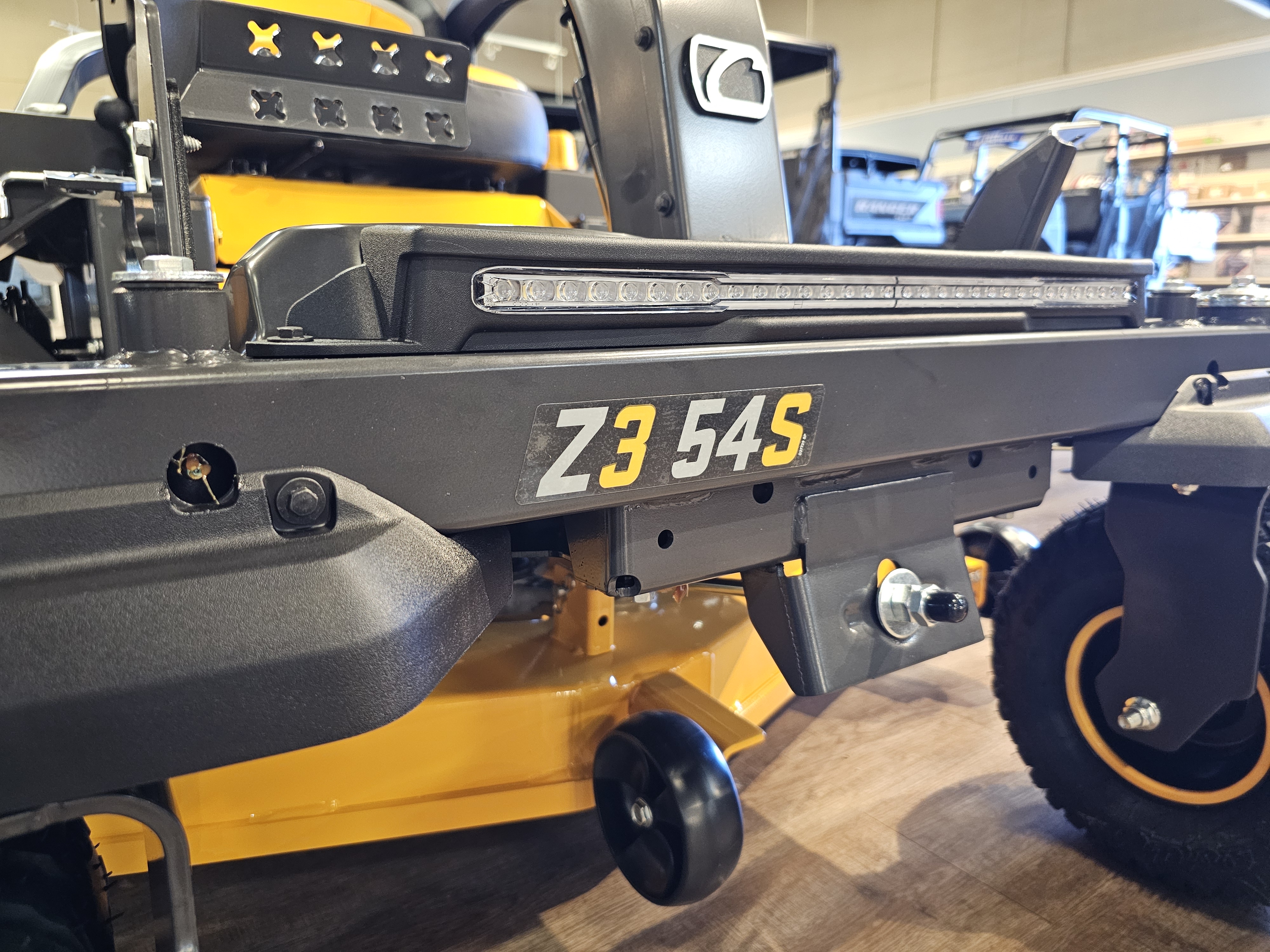

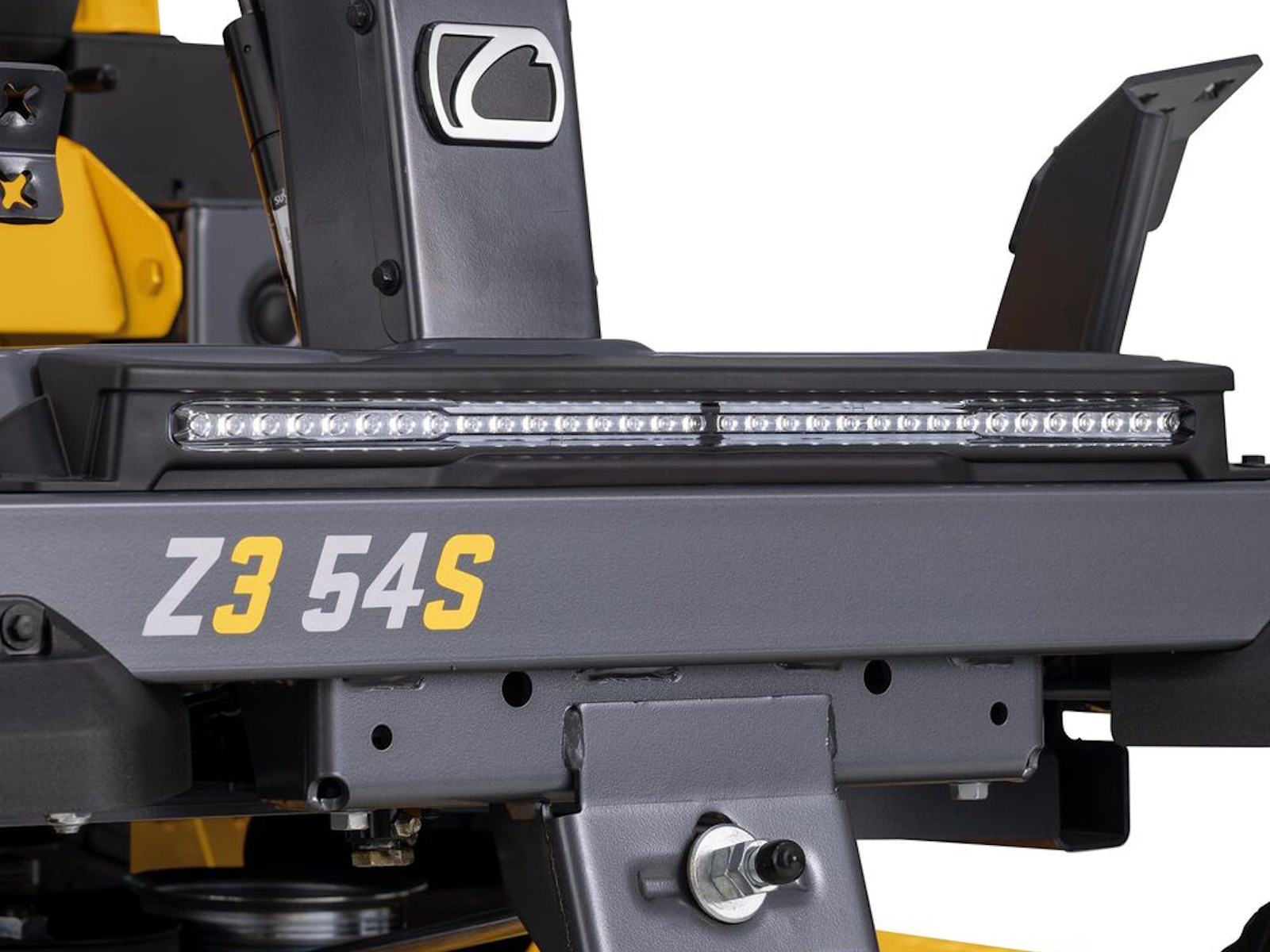

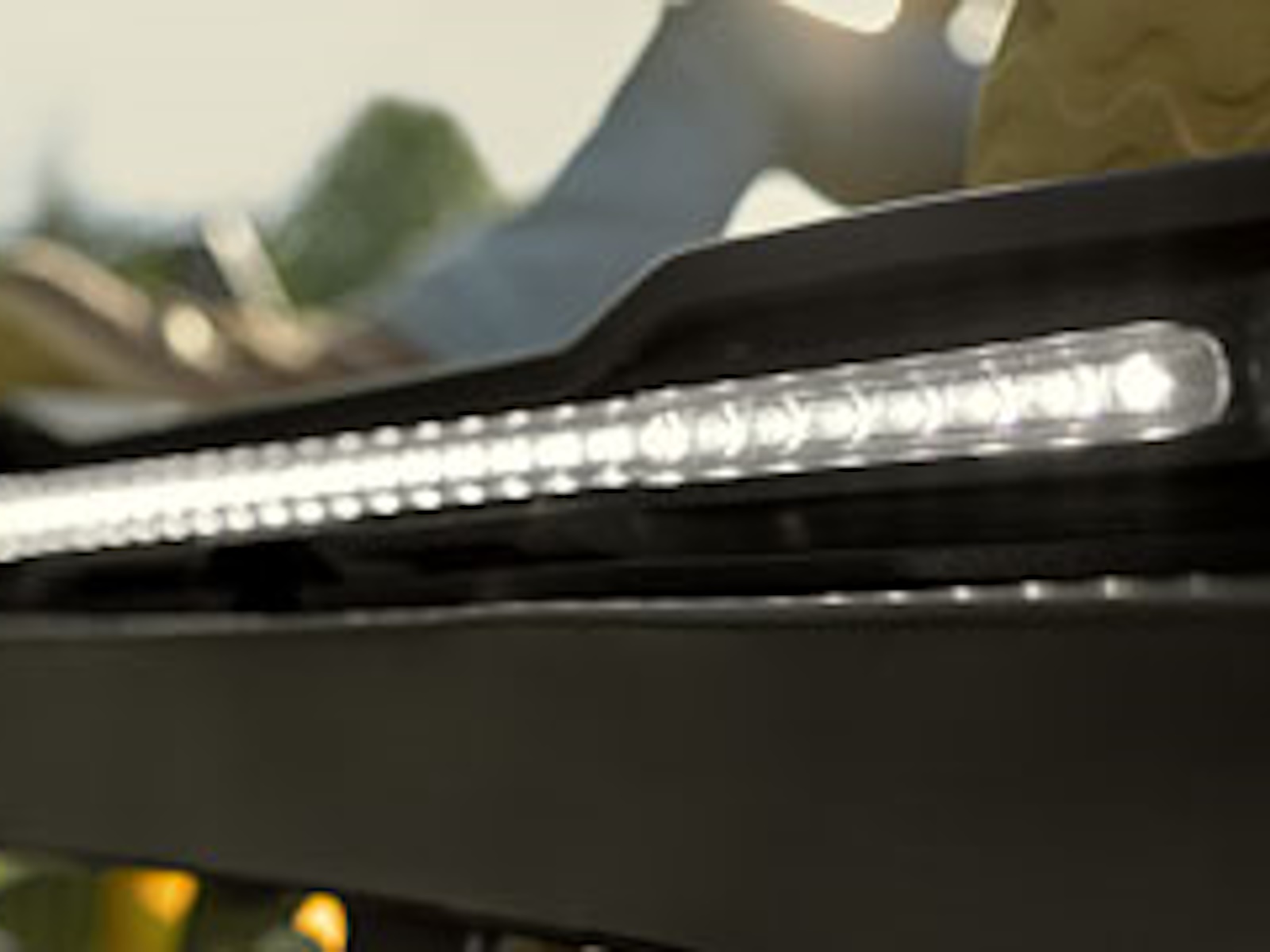

Front LED Bar Headlight

• Illuminate your path with a front LED bar built to be 4x as bright.* Engineered for ultimate vision to help see hidden obstacles like tree roots, branches, and rocks in low light.*

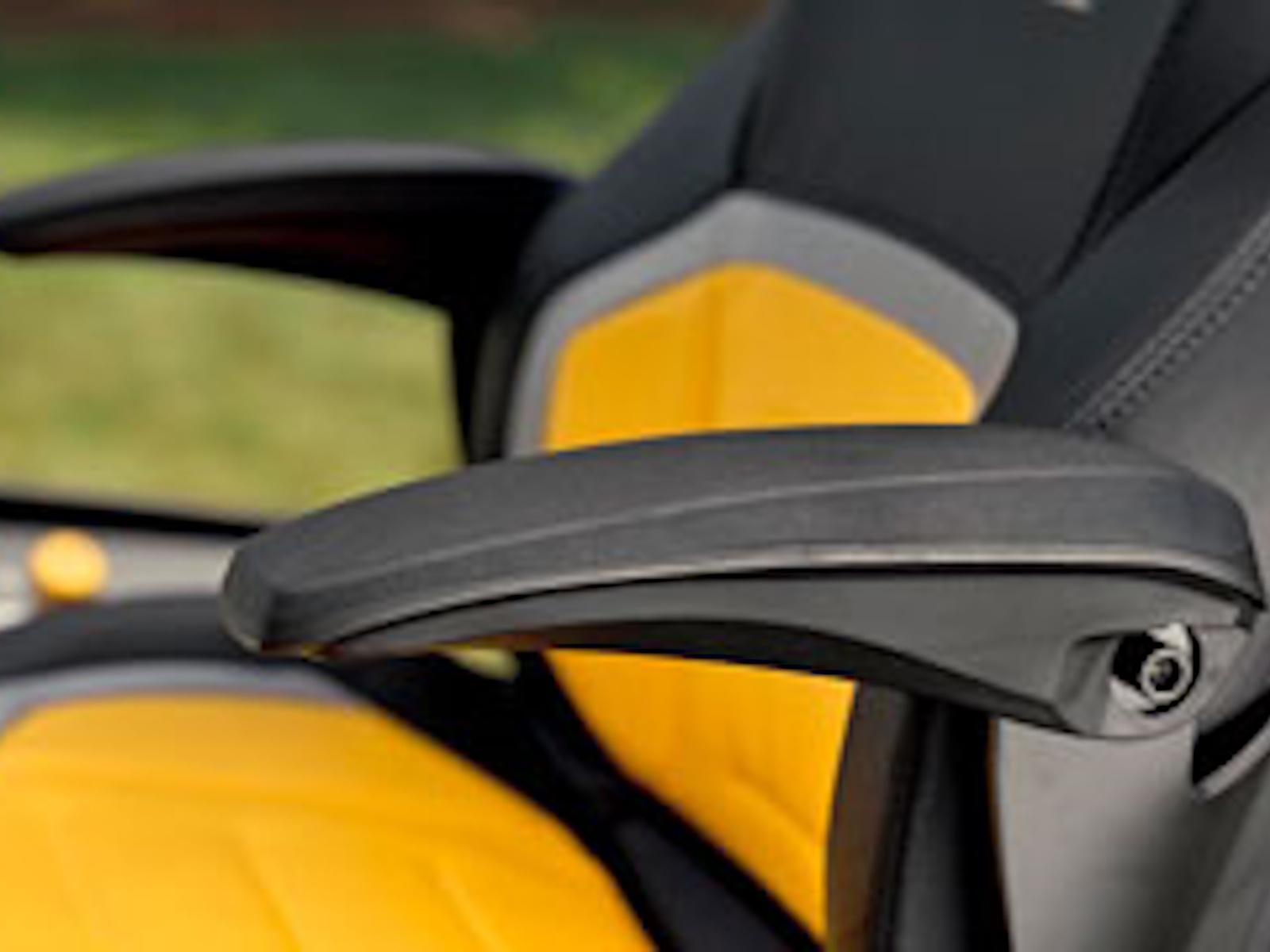

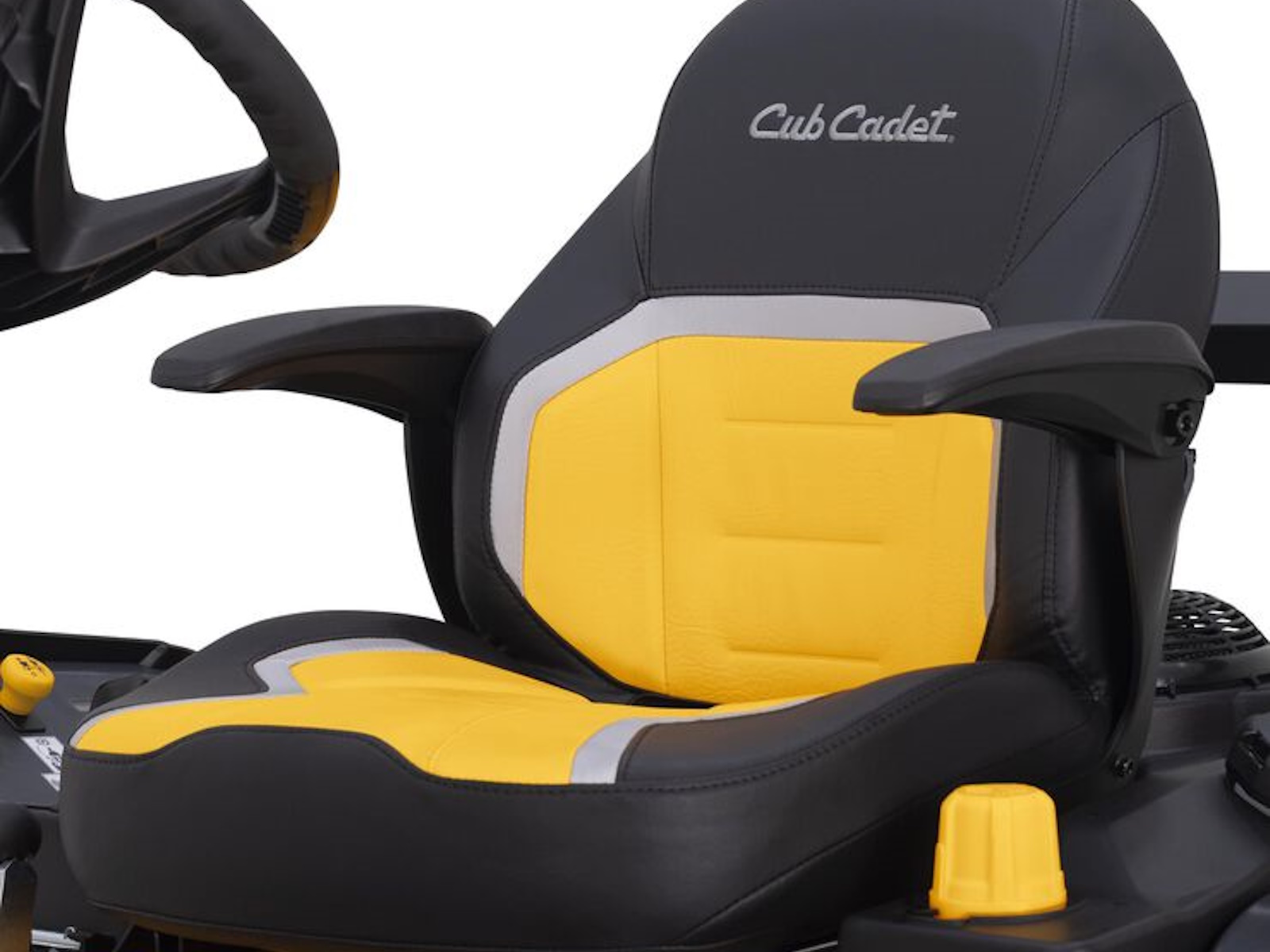

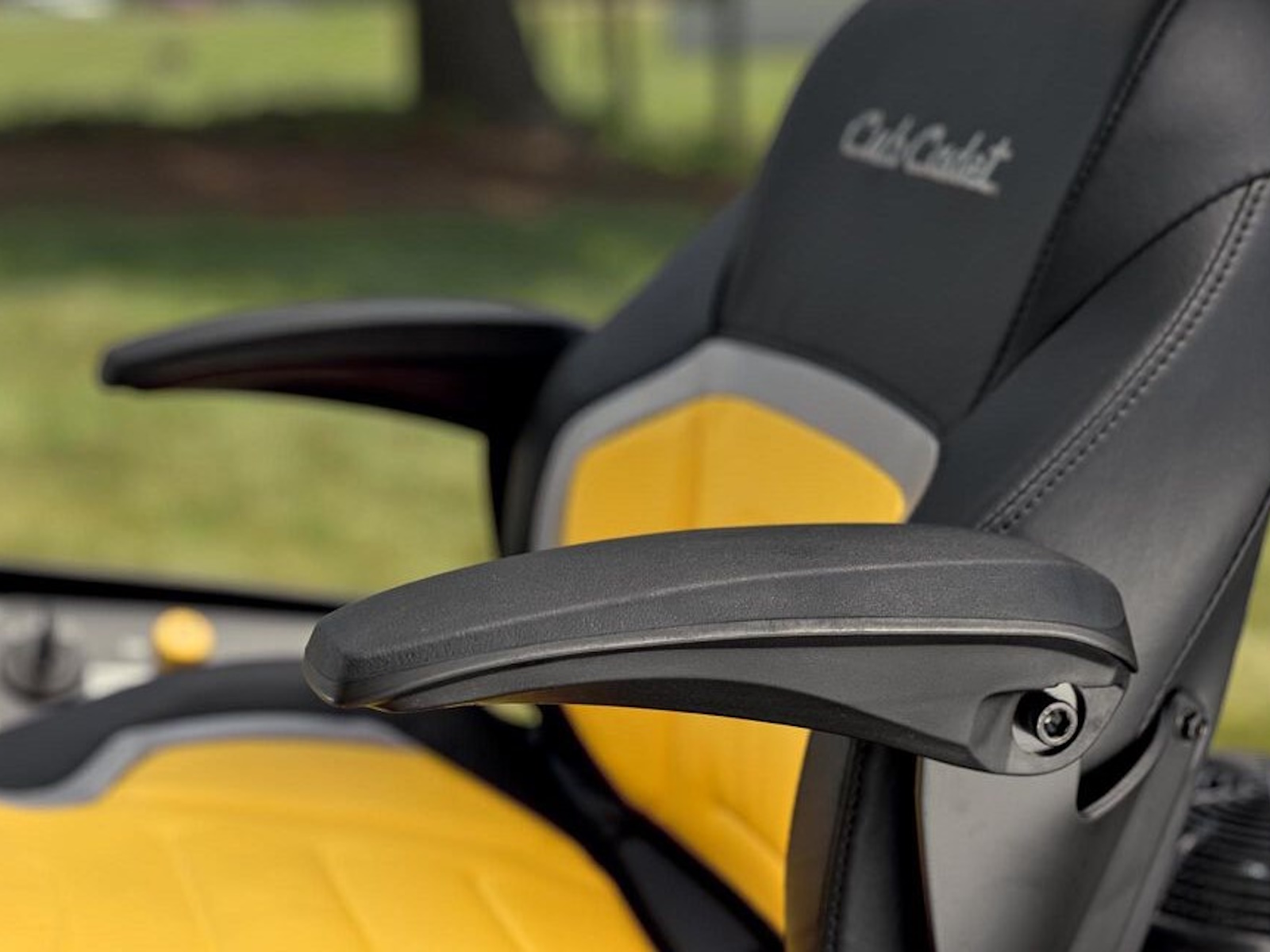

20" High Back Seat with Arm Rests

• Mow comfortably with a luxury-styled high-back seat bolstered using a custom foam designed to minimize vibration.

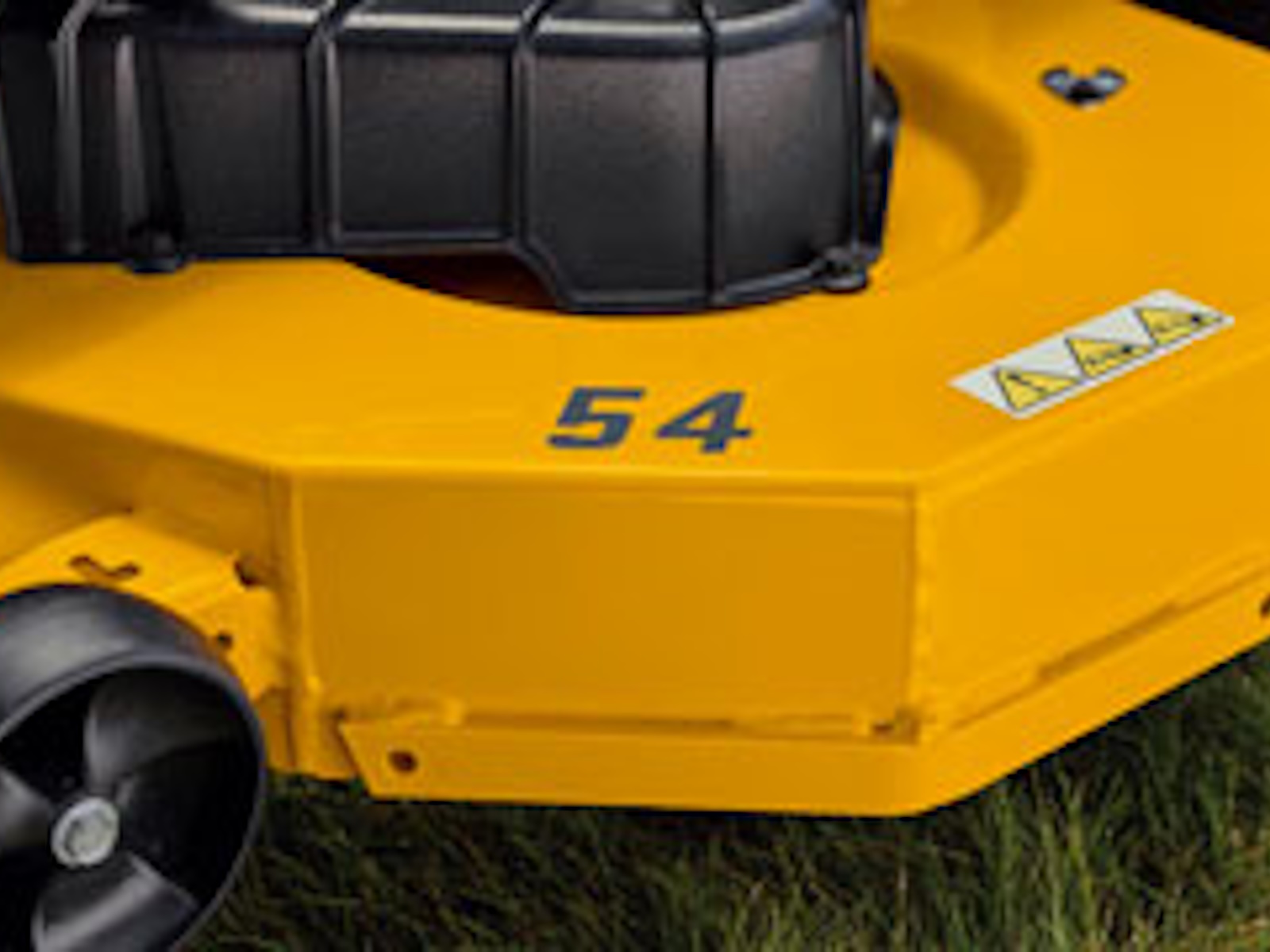

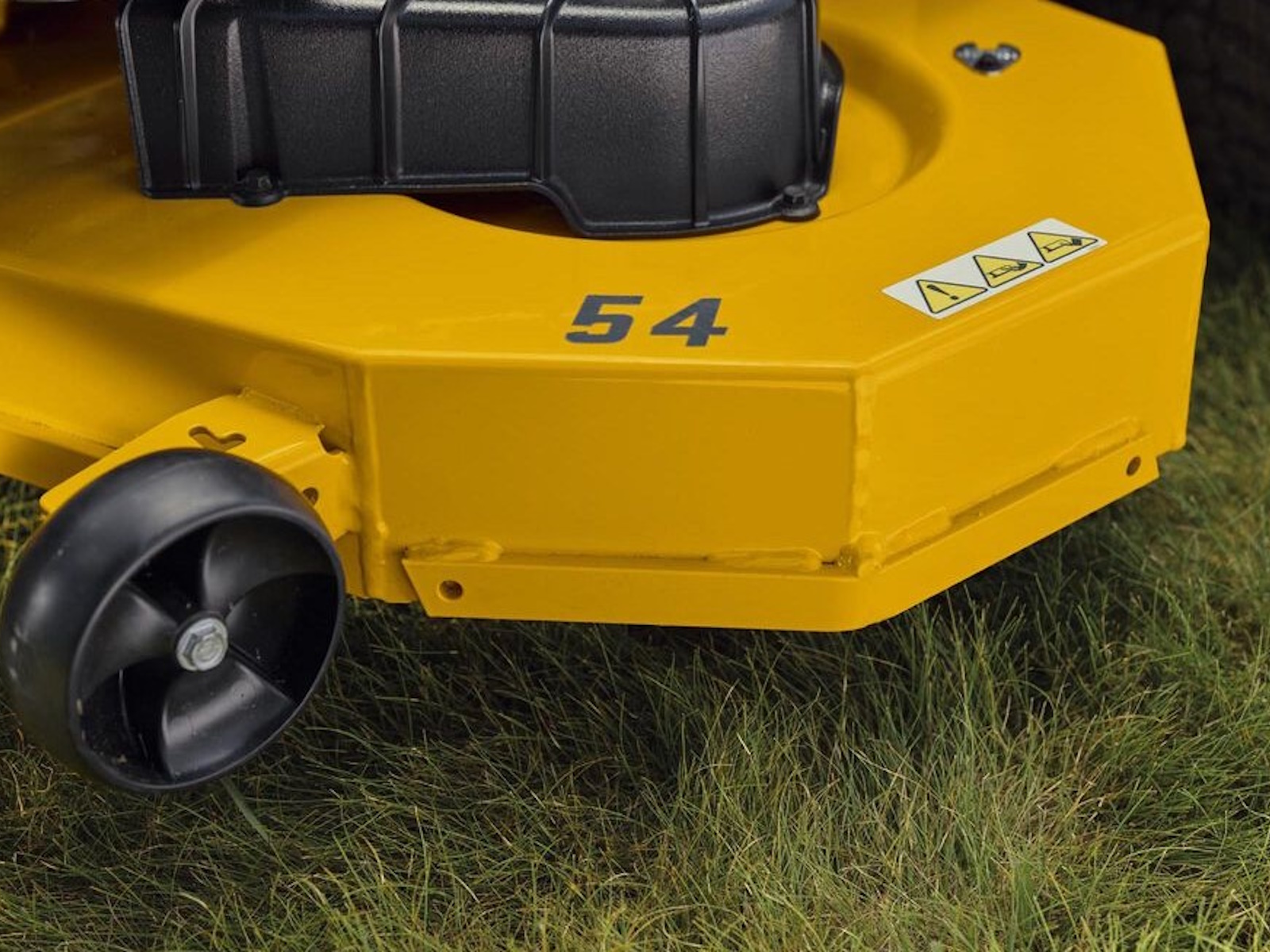

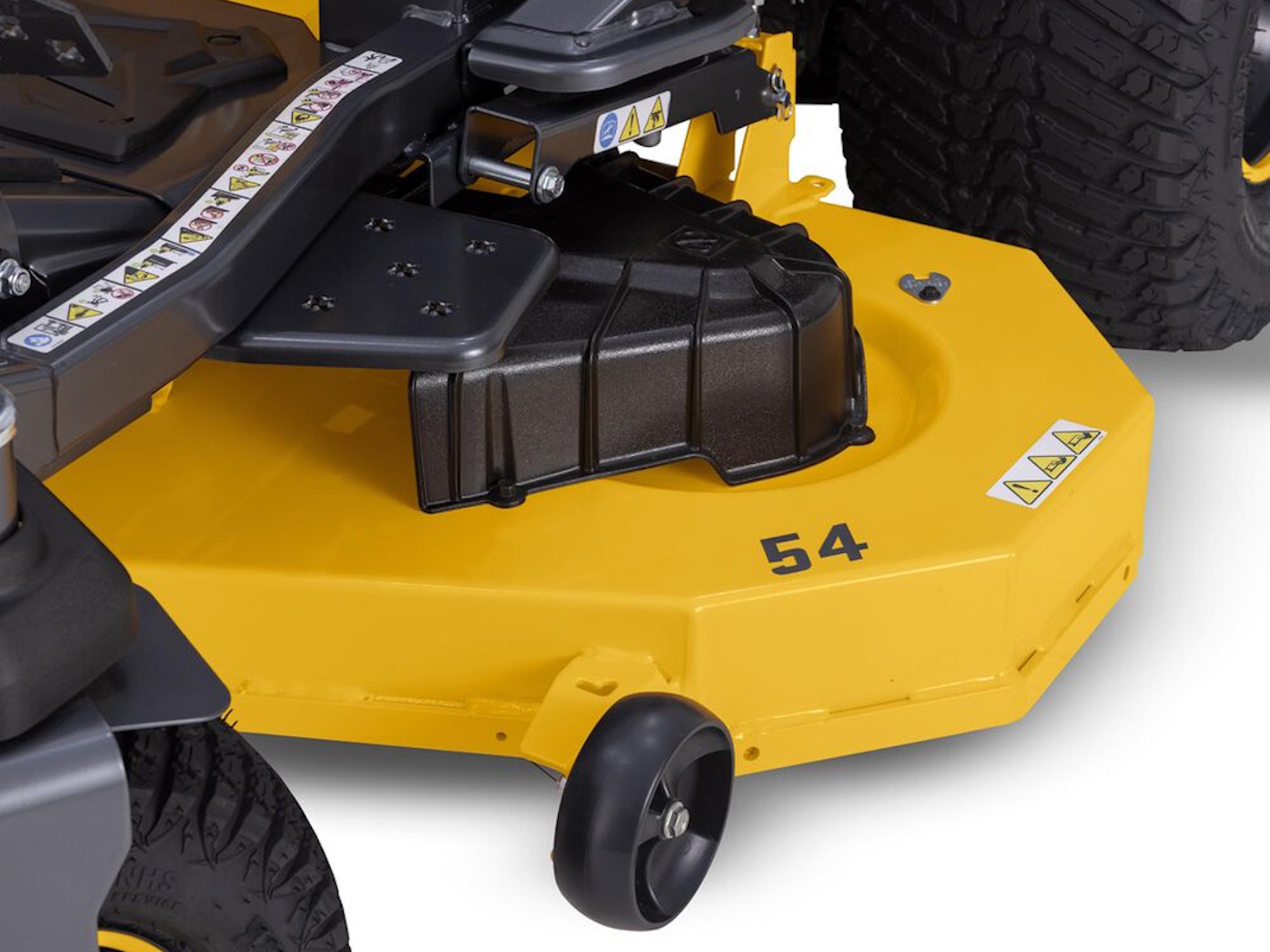

AeroForce™ Reinforced Fabricated Deck

• A 10-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.

Strong Warranty

• Backed by a 3-year no hour limit warranty, and lifetime limited frame and deck warranty.

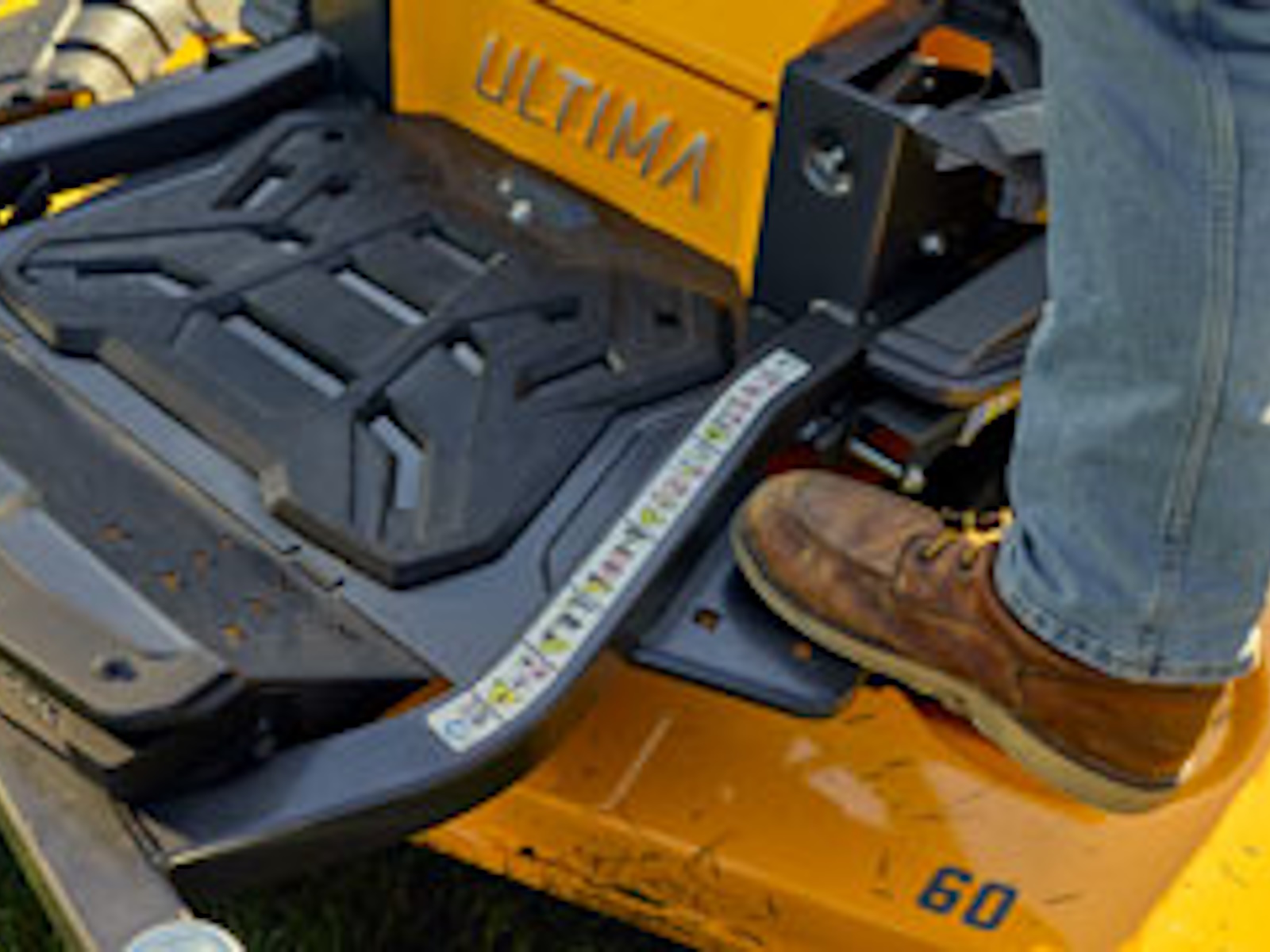

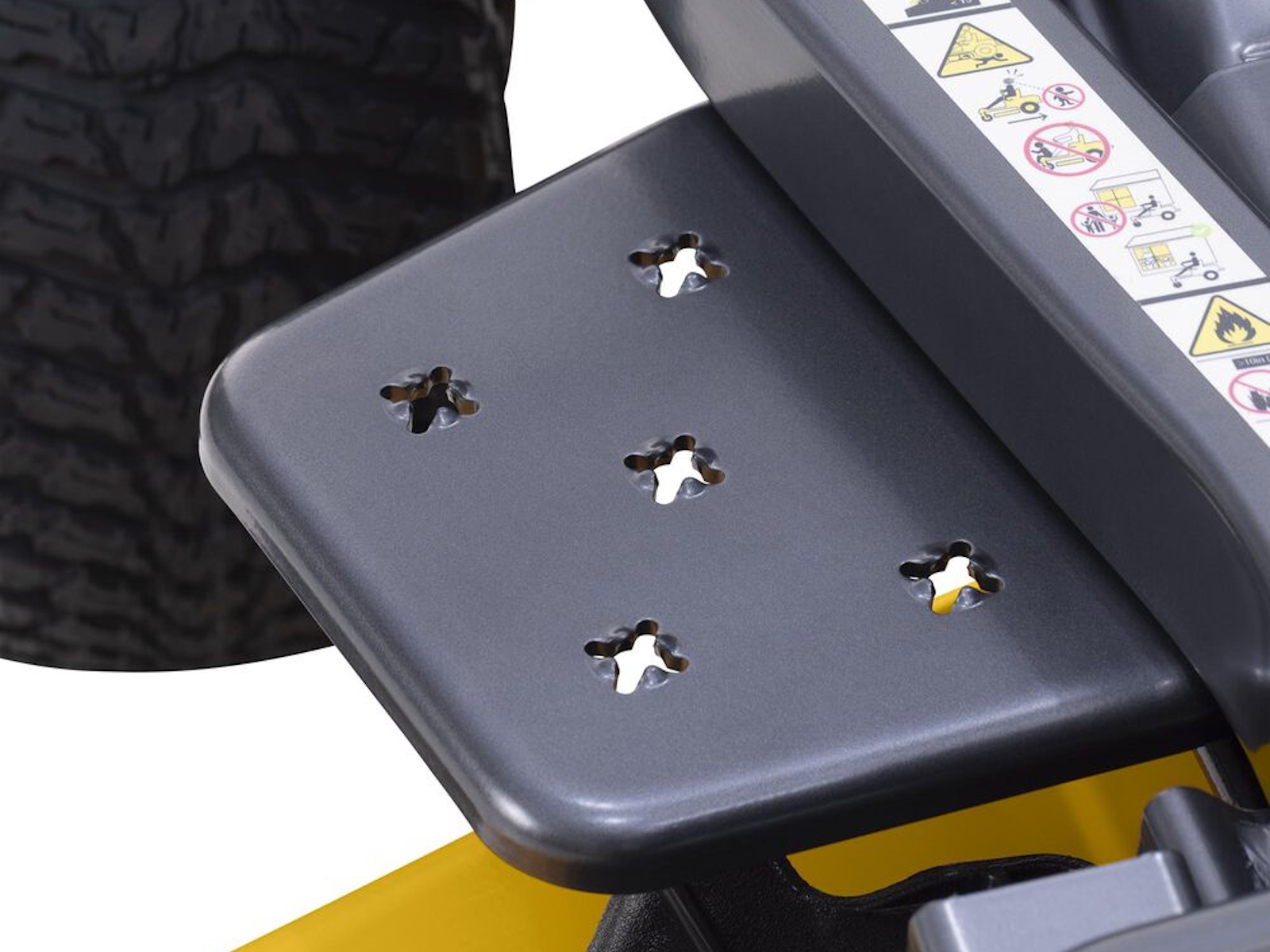

Step Assist

• Climb aboard your zero-turn with a step assist that provides a stable and secure foothold.

Smooth Drive

• Dual hydrostatic transmissions are designed to eliminate shifting and allow for quick and easy 7 MPH forward (3.5 MPH reverse) ground speeds for a smooth drive.

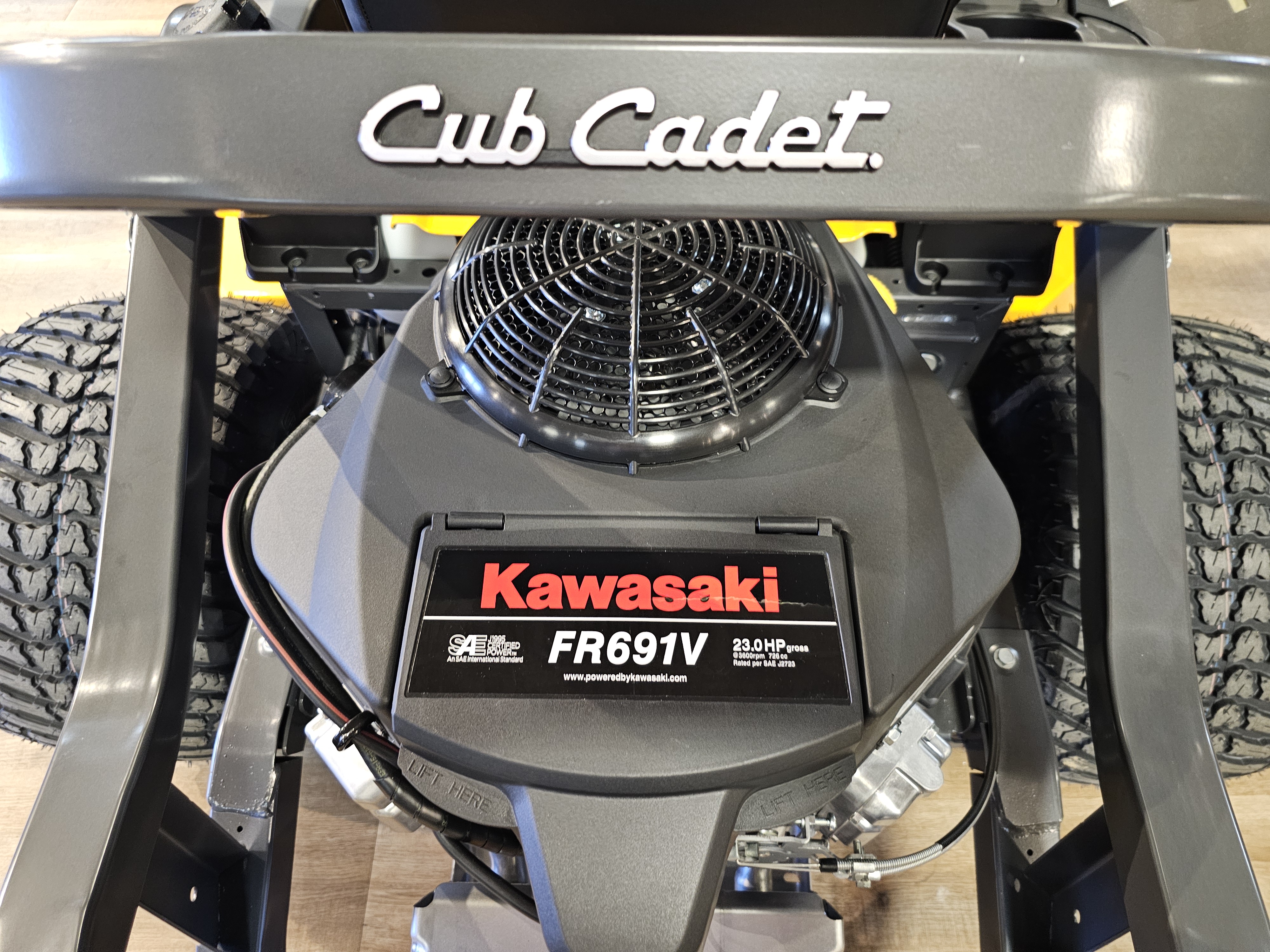

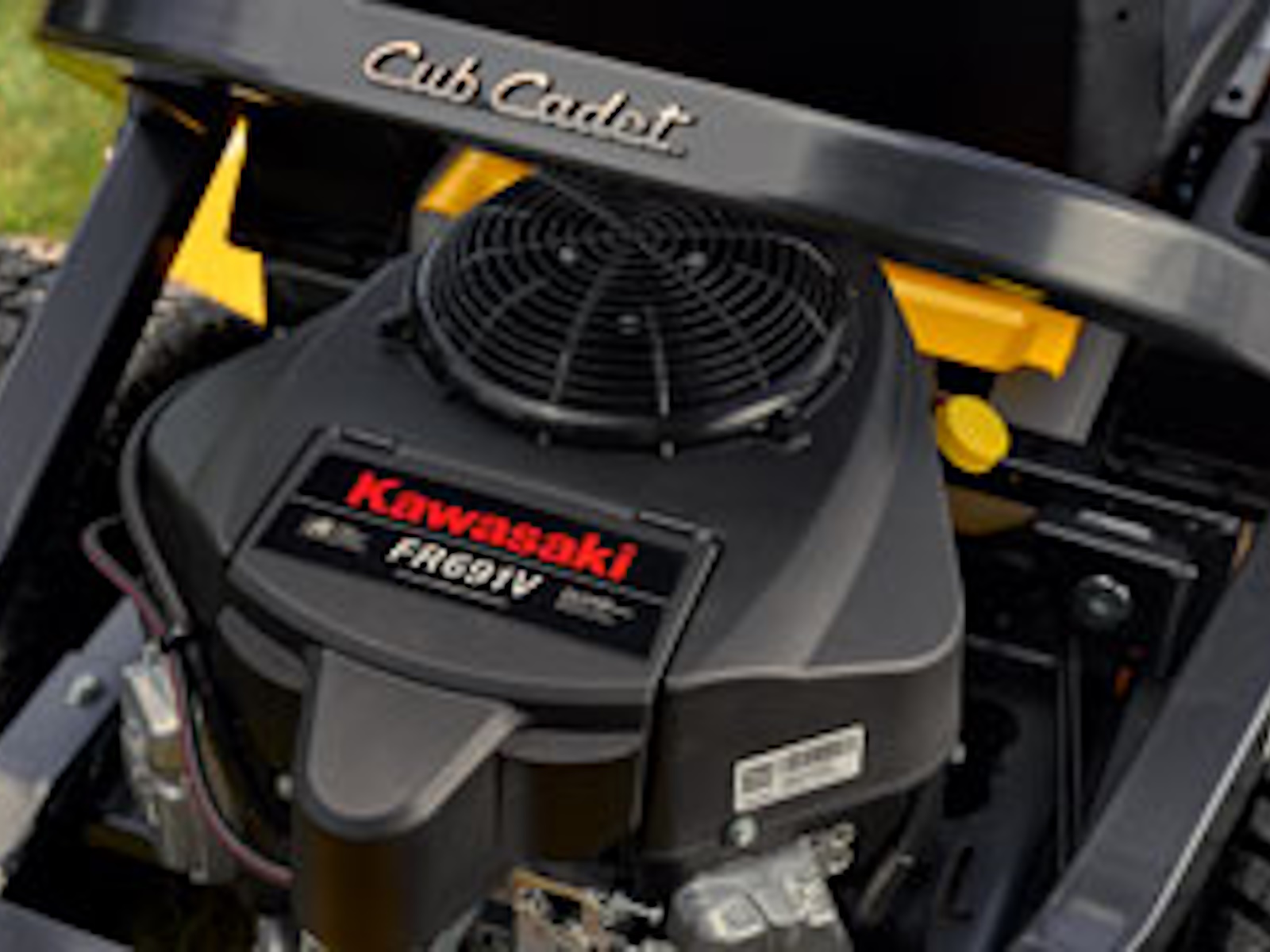

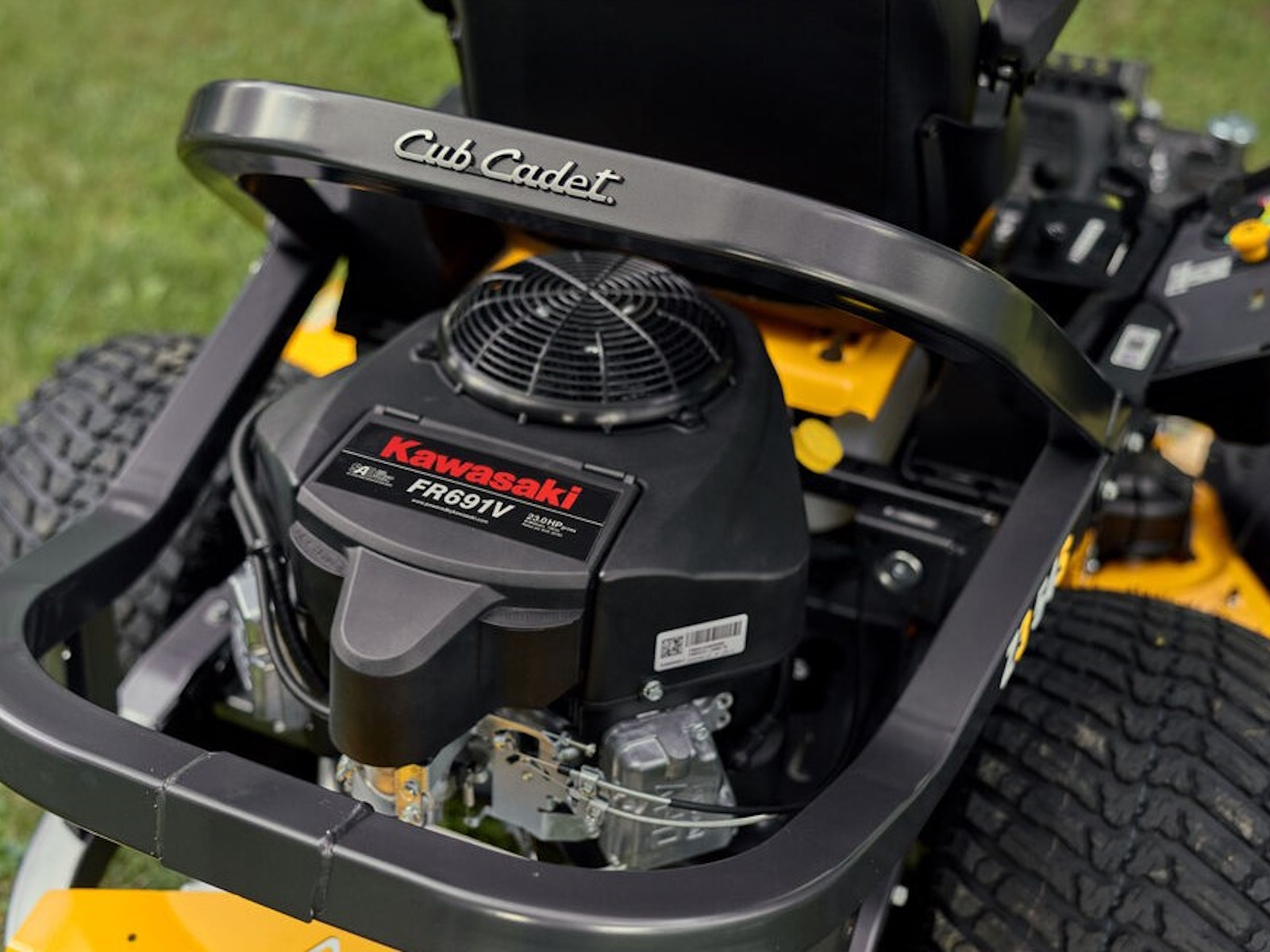

Kawasaki® Engine

• The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine.

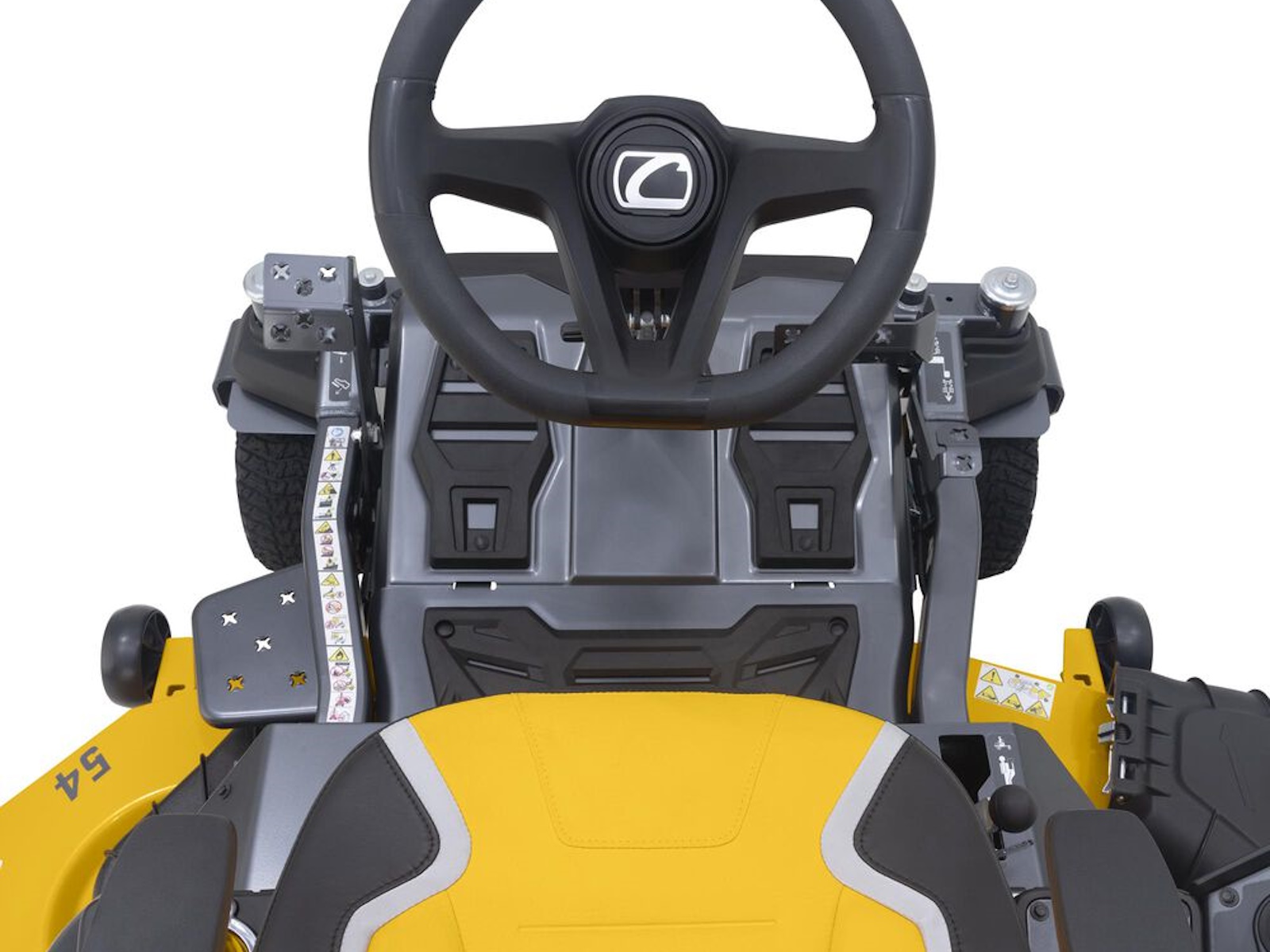

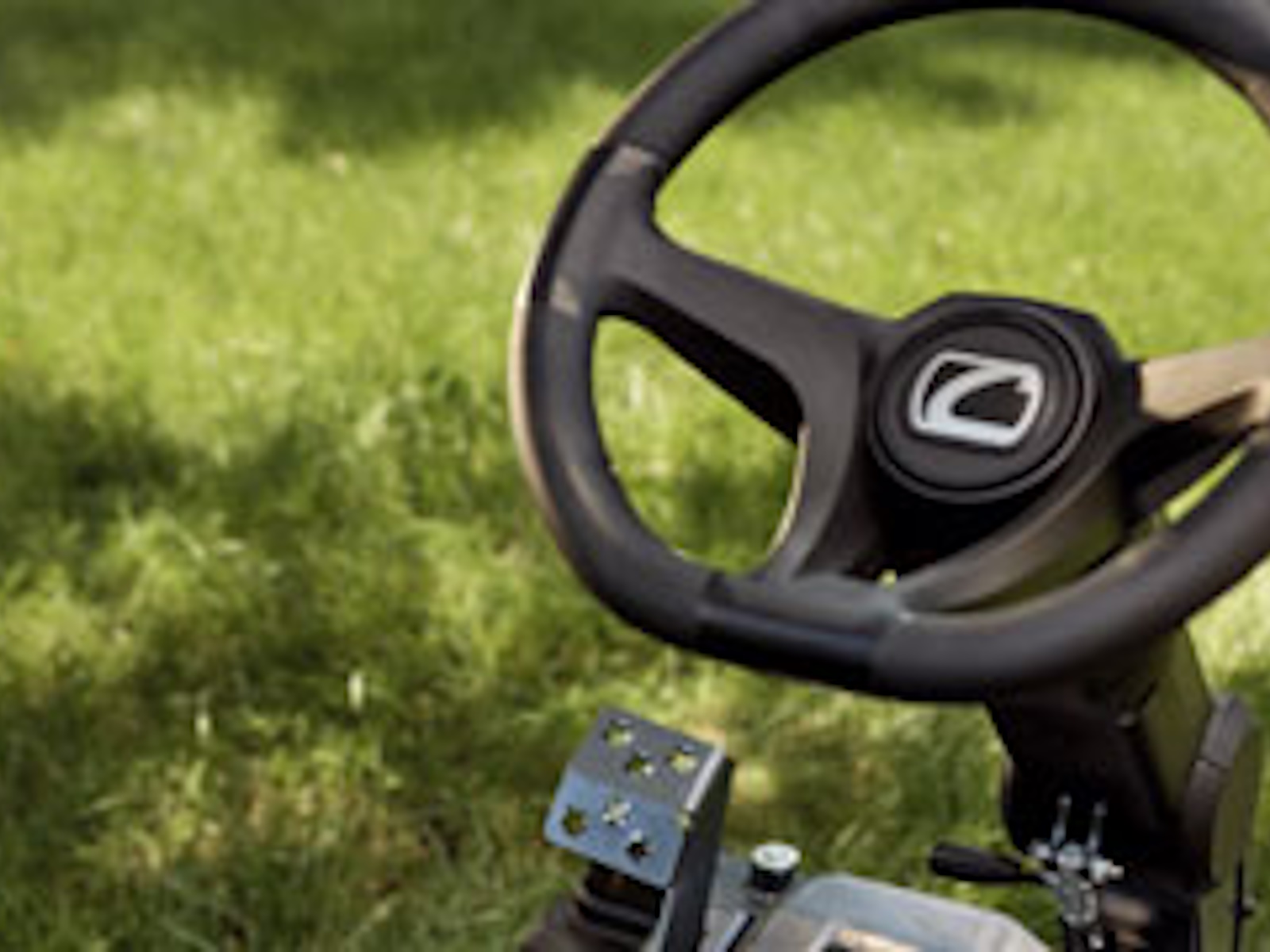

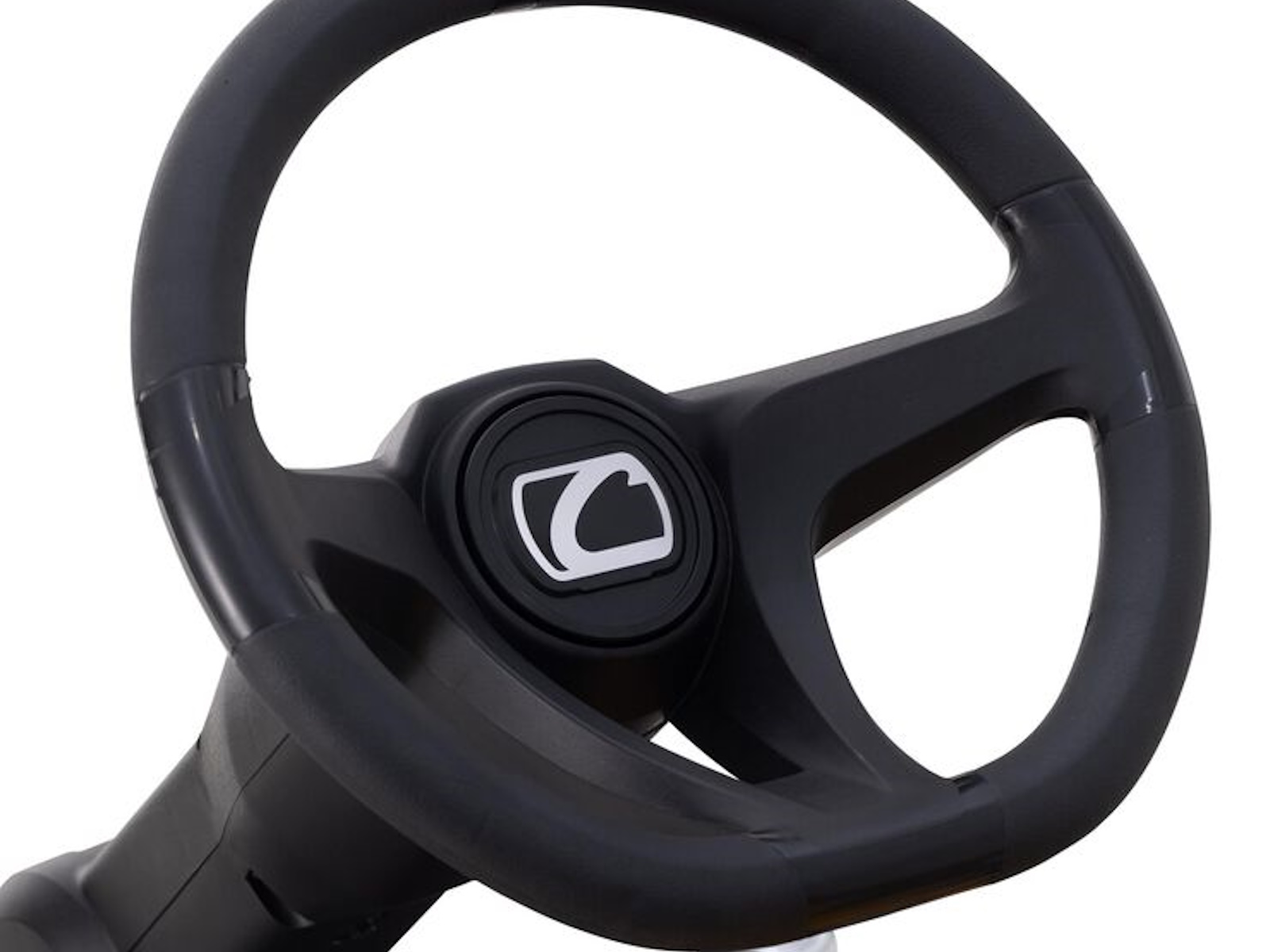

SoftTouch™ Steering

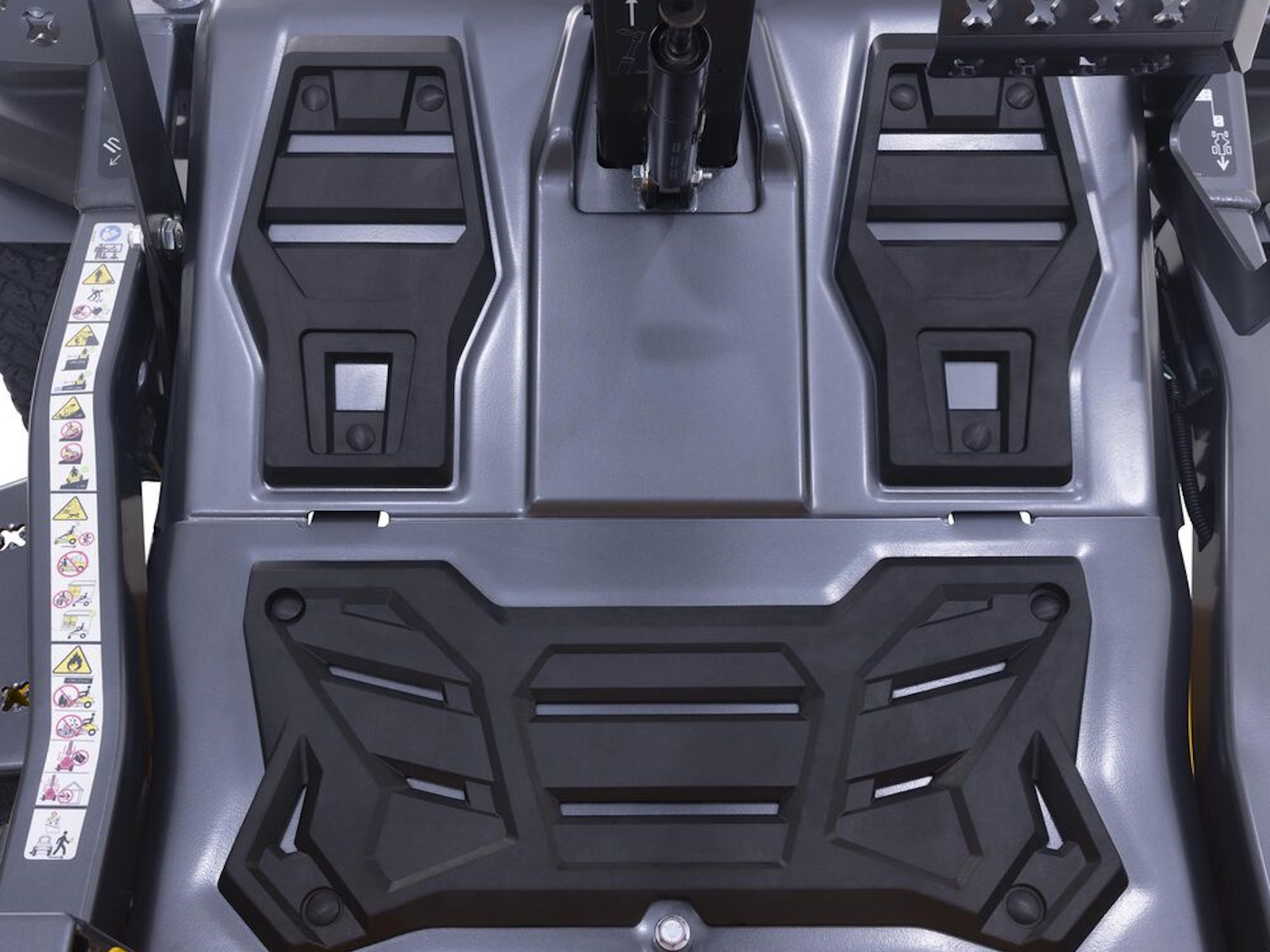

• SoftTouch™ steering wheel and vibration-dampening rubber floor mat helps provide sure footing and maximize comfort.

Options:

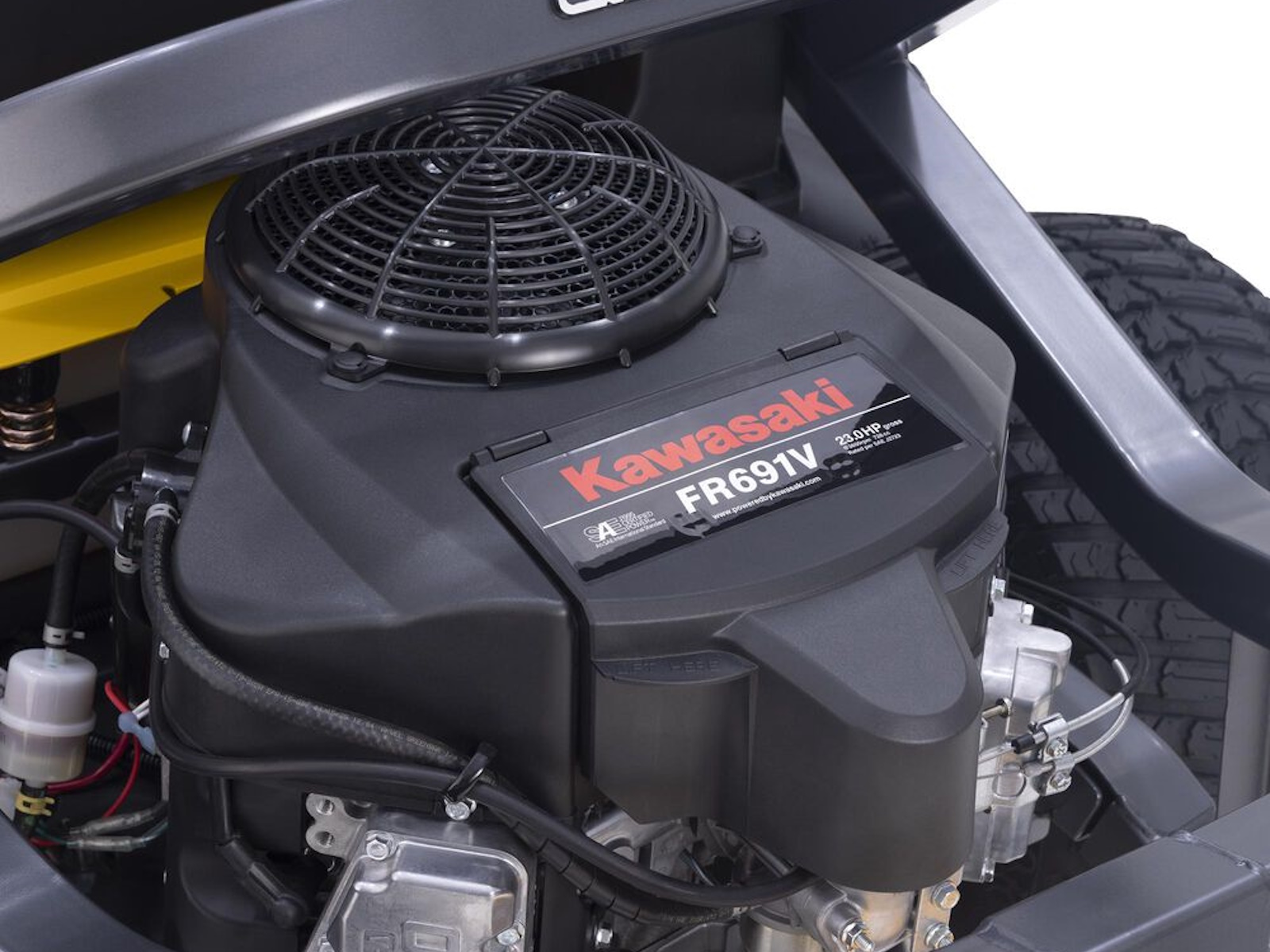

Engine

• Engine Brand: Kawasaki®

• Engine Model: FR Series

• Engine Model Number: 691V

• Engine Displacement: 726cc

• Engine Output: 23HP

• Starter Type: Electric

• Fuel Tank Capacity: 3.5 gal. US (13.25 L)

• Cylinders: Twin

• Engine Start: Ignition Key

• Engine Oil Capacity: 2.1 qt US ( 2 L)

• Lubrication: Fully pressurized

• Charging System: 12 amp regulated

• Fuel Gauge: No

• Governor: Mechanical

• Choke: Separate Choke

• Air Filter: Single element

• Oil Filter: Yes

• Fuel Delivery: Carburetor

Battery

• Battery: 230 CCA

• Battery Type: Lead Acid

• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 2800

• Forward Speed: 7 MPH / 11.3 km/h

• Reverse Speed: 3.5 MPH / 5.6 km/h

• Drive System: Hydrostatic

• Serviceable Transmission: Yes (Serviceable)

Cutting Deck

• Deck Cutting Width: 54 in

• Deck Wash: No

• Deck Material: 11-gauge steel

• Deck Engagement (PTO): Electric

• Deck Construction: Reinforced Fabricated

• Blade(s): Three

• Deck Lift: Foot pedal with Dial Adjust

• Cutting Height Range: 1'' - 4.5''

• Anti-Scalping: Three gauge wheels

• Deck Positions: 15

Chassis

• Frame: 2'' x 2'' tubular steel

• Turning Radius: 0°

• ROPS: No

• Rear Tow Hitch: Yes

• Corrosion Protection: Yes

• Front Caster Yokes: 1/4" Steel

Controls

• Cruise Control: No

• Brakes: Disc

• Steering Control: Steering Wheel

Comfort

• Seat Type: 20" Cut-and-Sew with Head Bolster

• Armrests: Yes

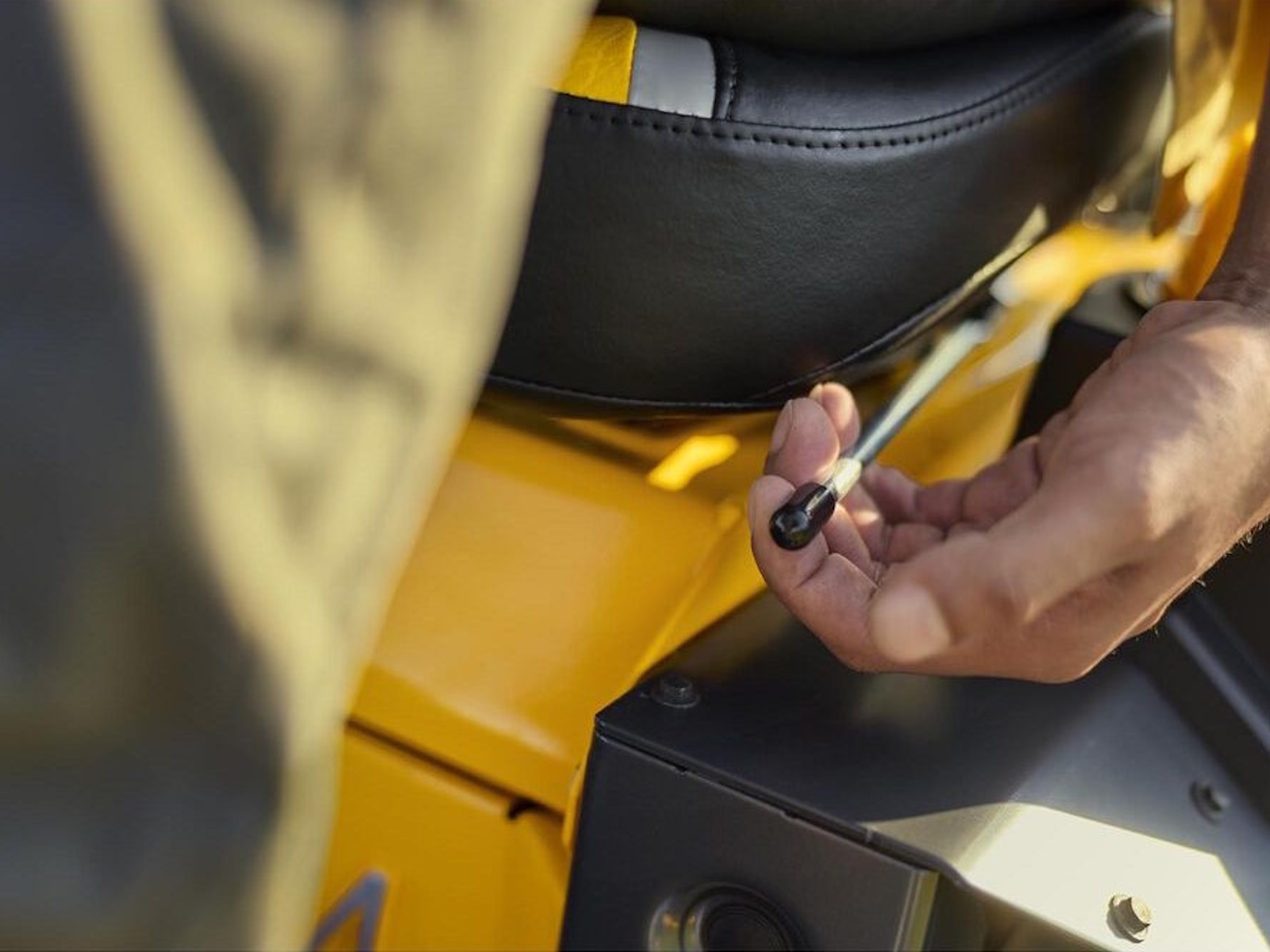

• Seat Adjustment: Lever

• Front Caster Suspension: No

Wheels

• Rear Tires: 20”x 12”-8"

• Front Tires: 13"x 6.5"-6"

• Tire Tread: Turf Armor

Specifications

• Series: Ultima Series™ ZS

Additional Specifications

• Hour Meter: Yes

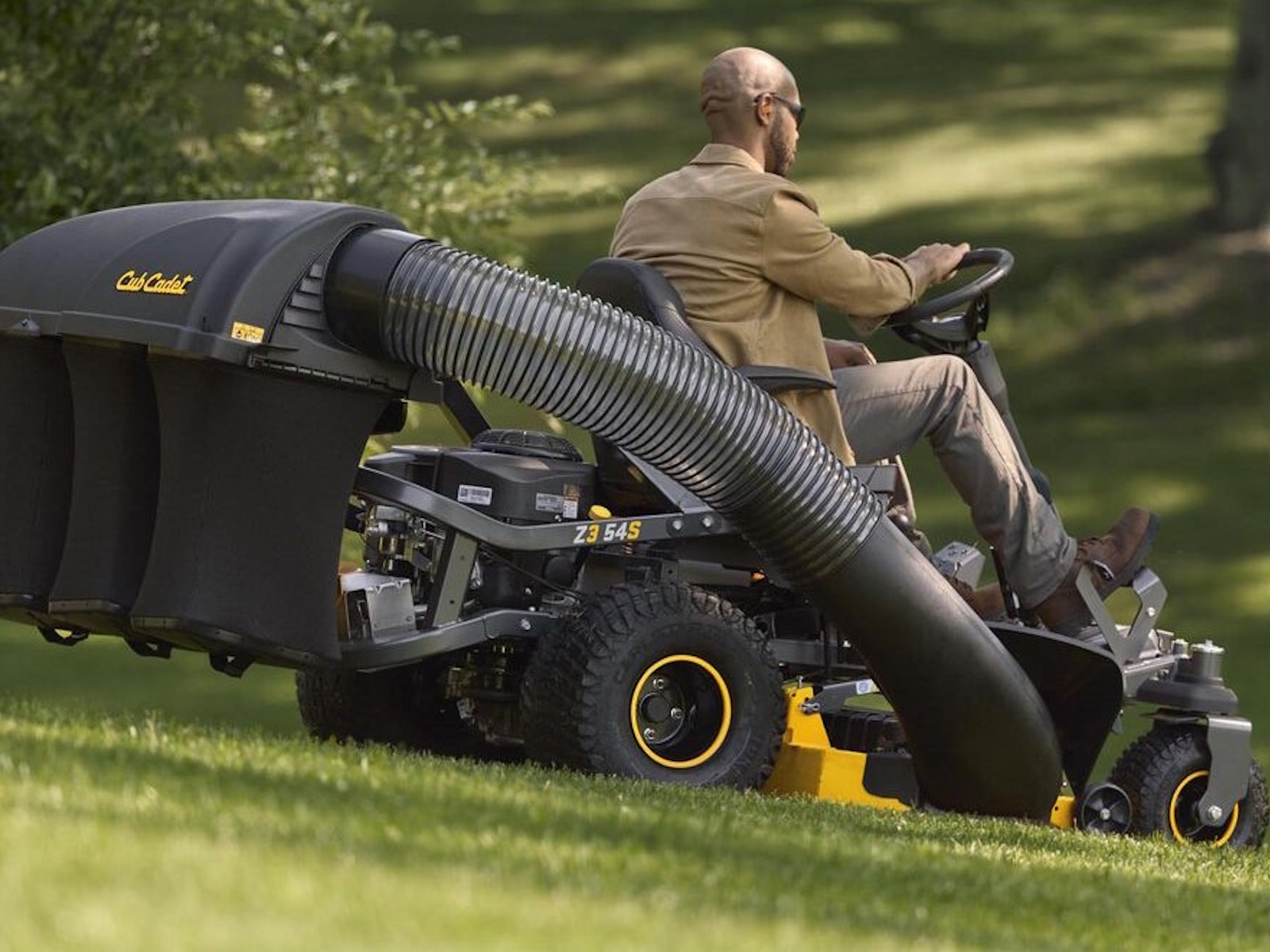

• Mulch Kit: Available separately

• Headlight(s): LED Lightbar

• Cup Holder: Yes

• Operator Presence System: Yes

• Parking Brake: Hand Lever

• Model Number: 17CIGGY3A10
