2026 TYM Tractors T3025















Get in Touch
Description

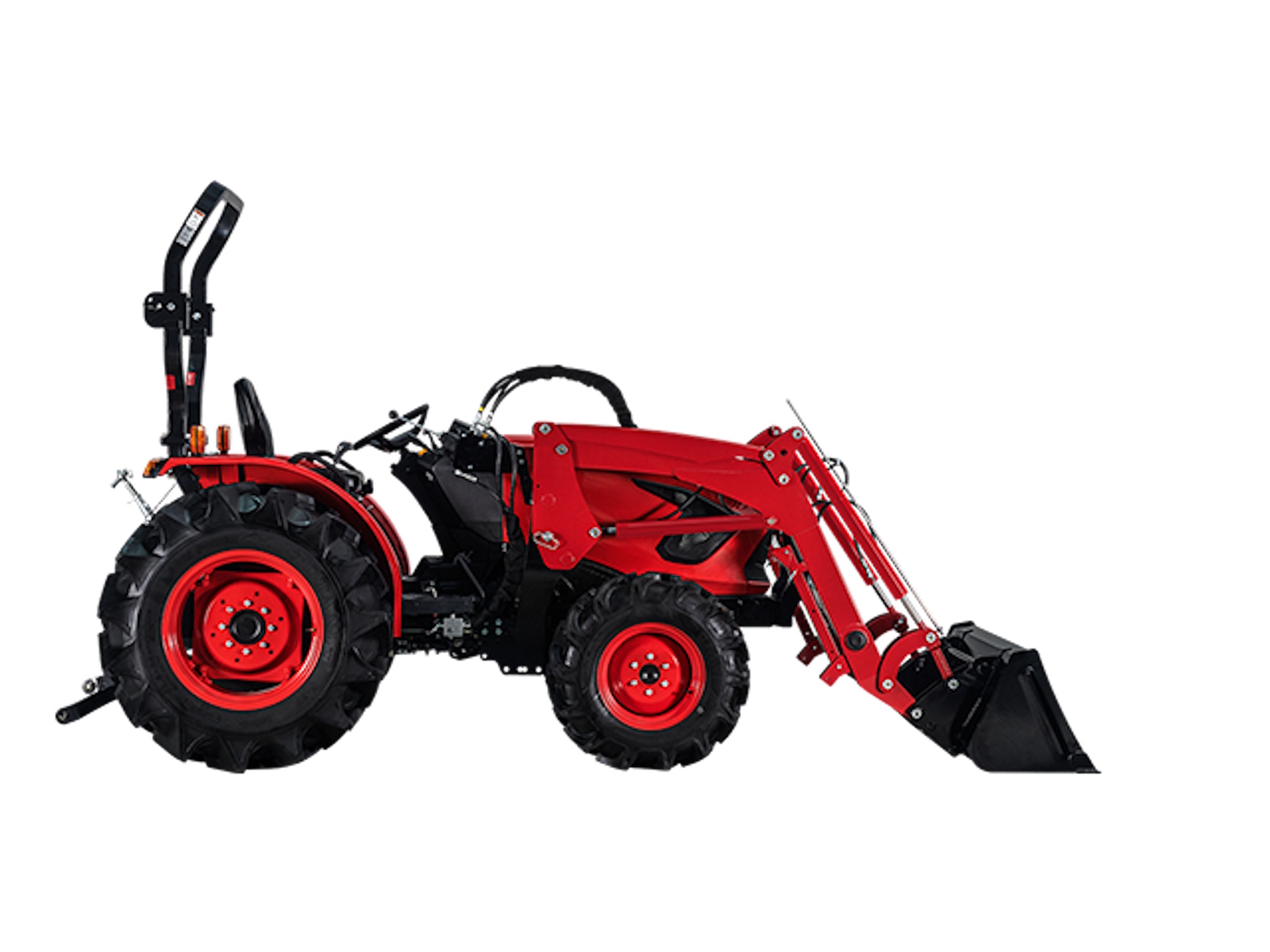

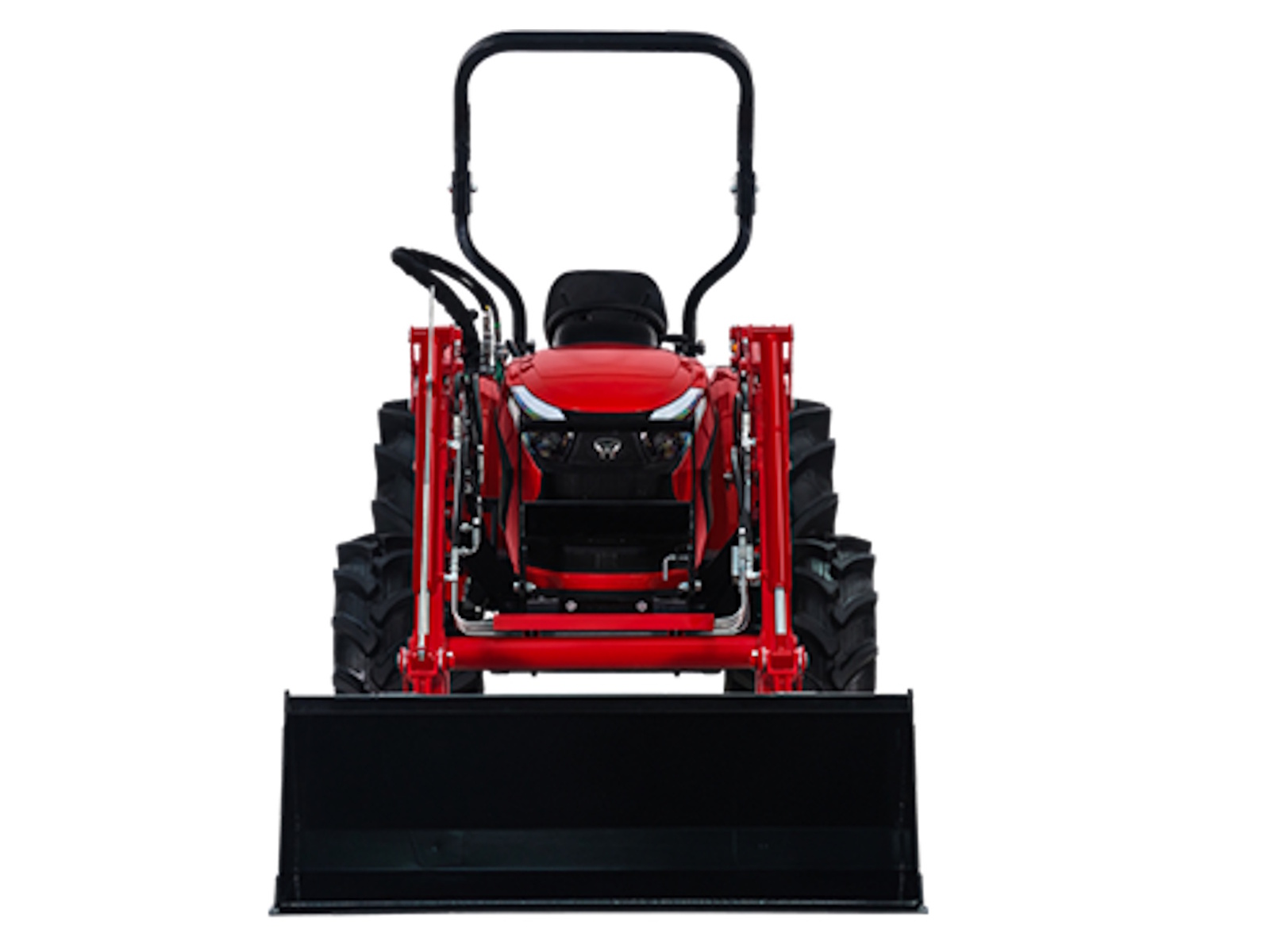

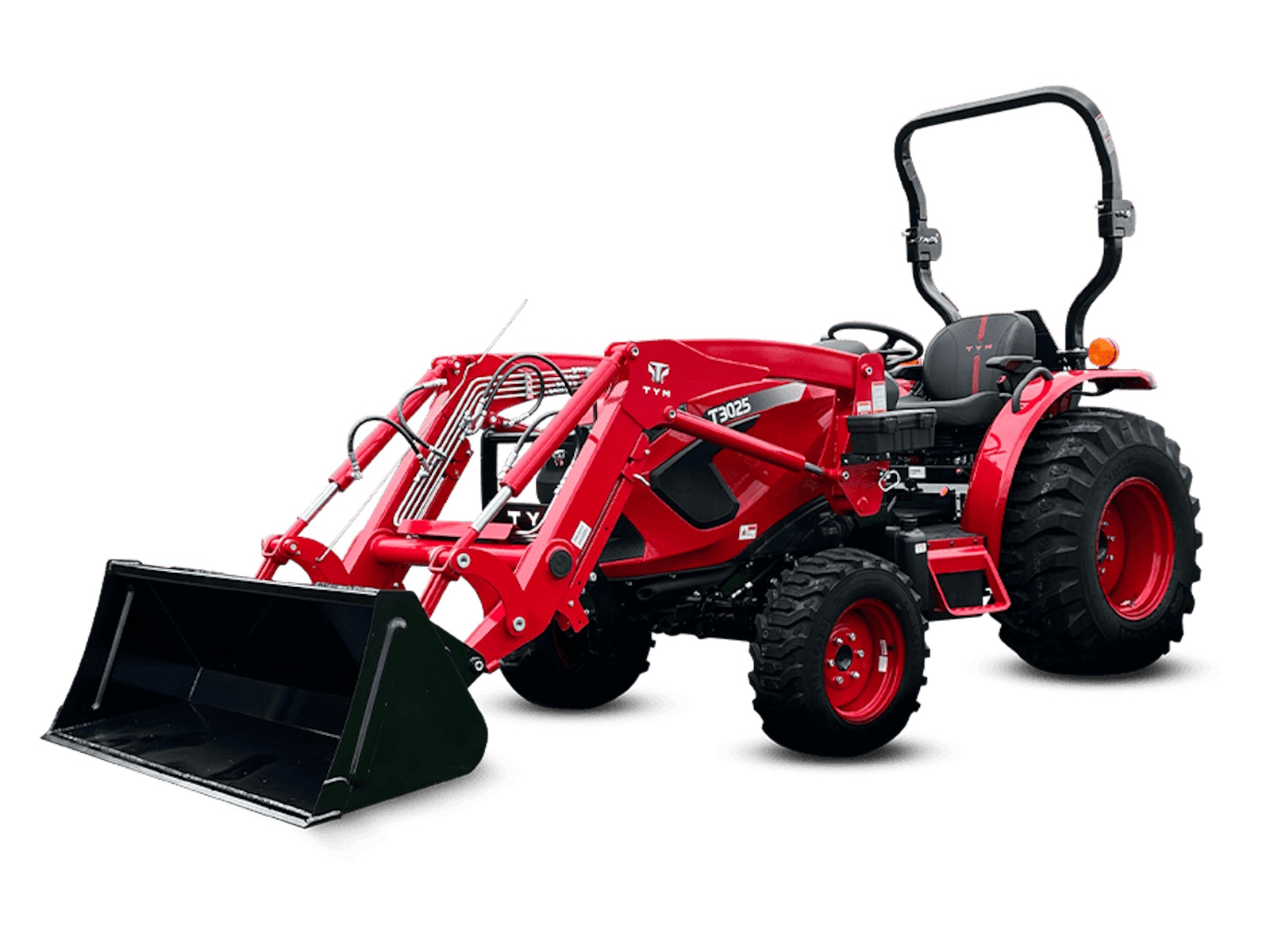

2026 TYM Tractors T3025
A compact tractor robust enough to take on challenges of all sizes
The T3025 tractor is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 3 compact tractor helps you achieve your goals in applications of varying intensities.
Features May Include:

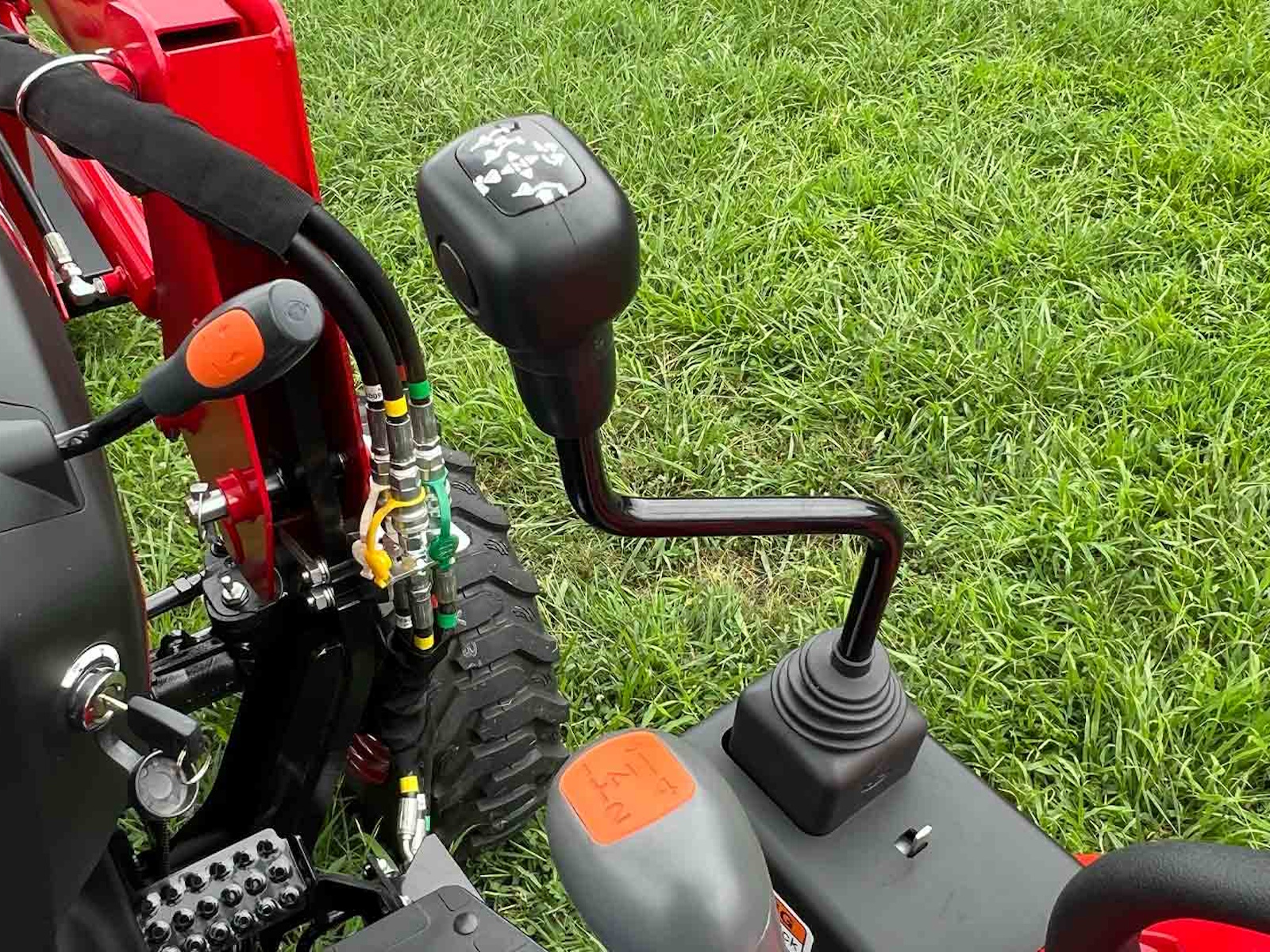

Factory-installed joystick
- The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.

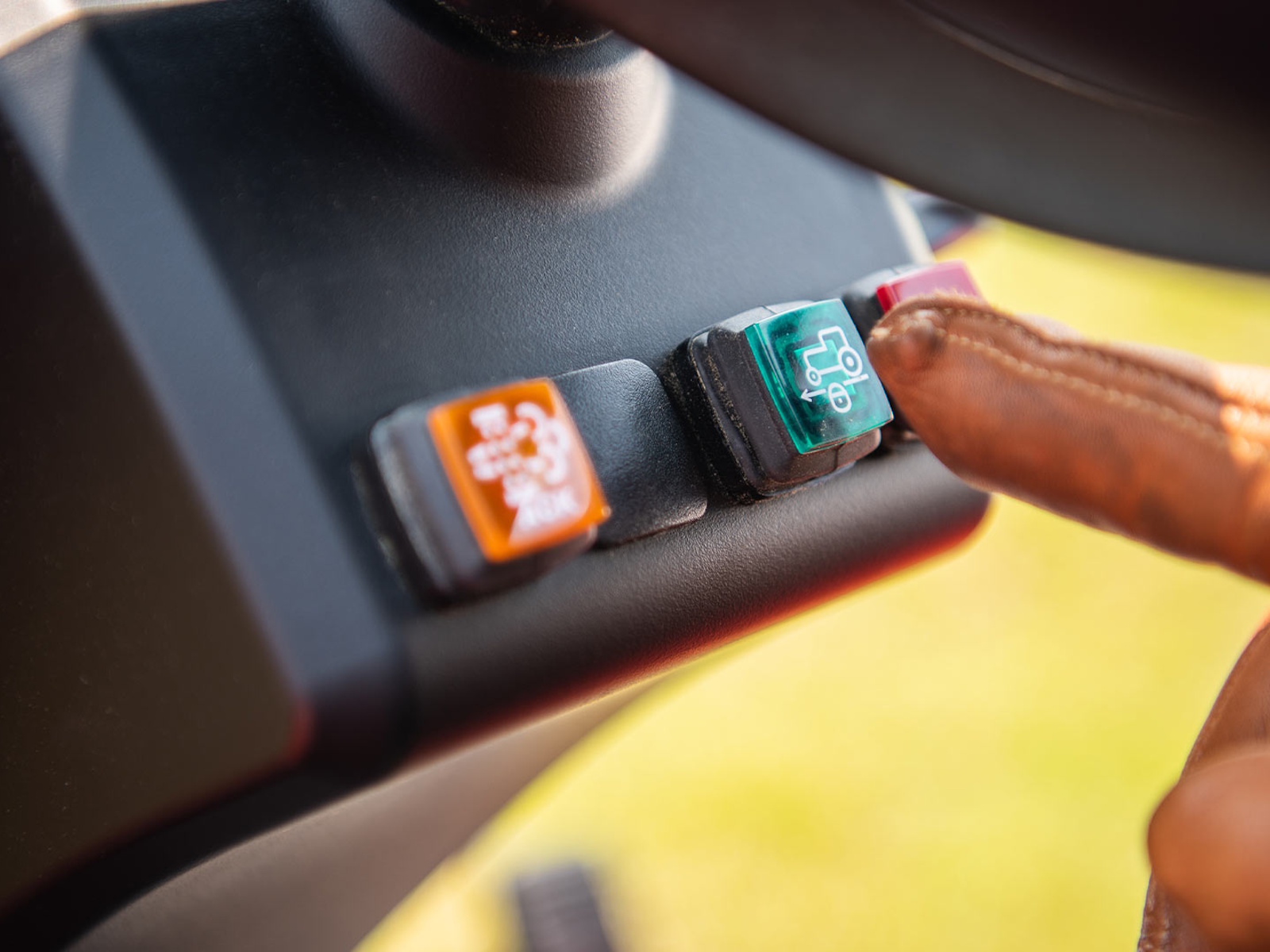

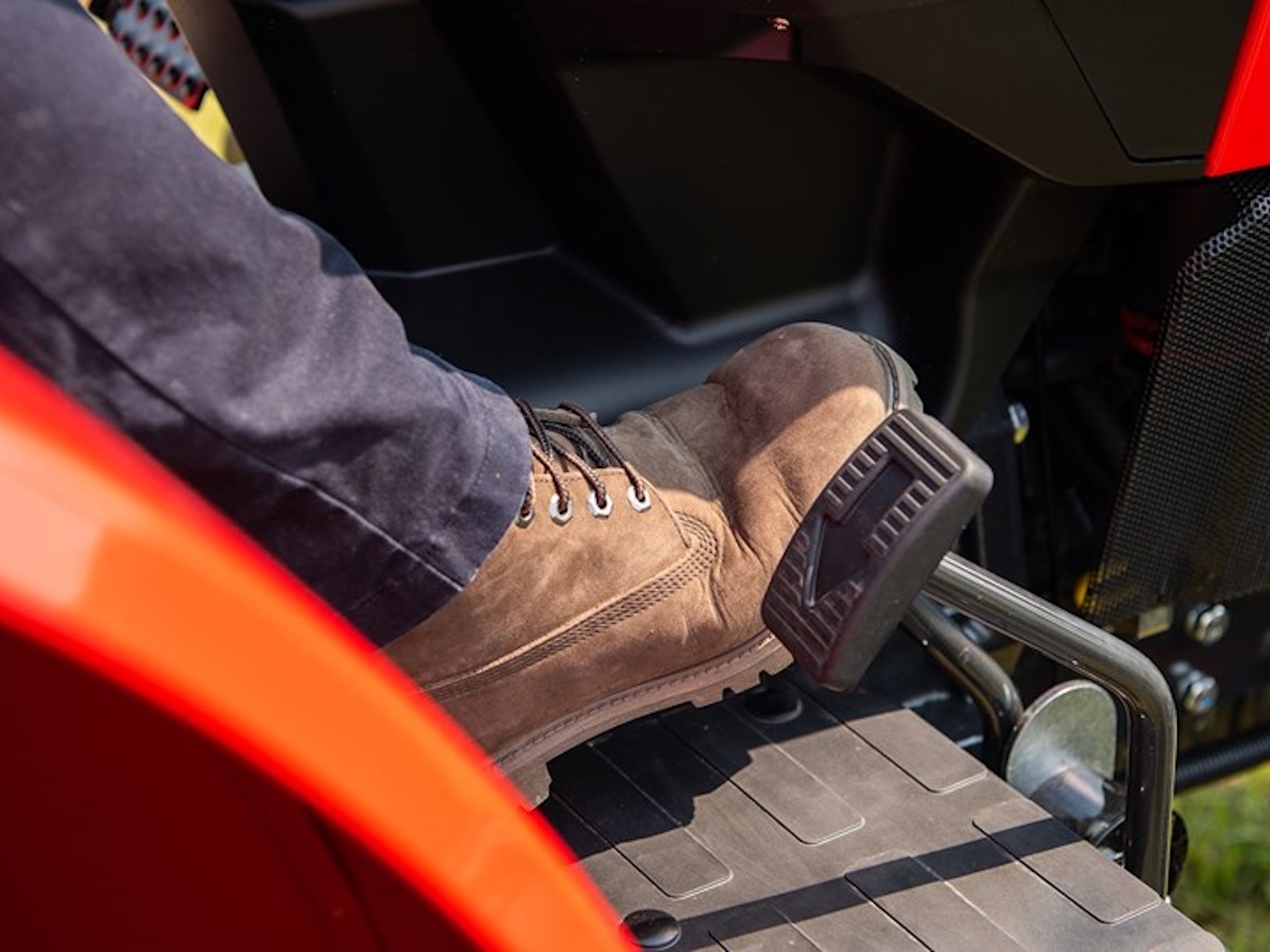

Cruise control
- The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor’s load conditions.
Lift more

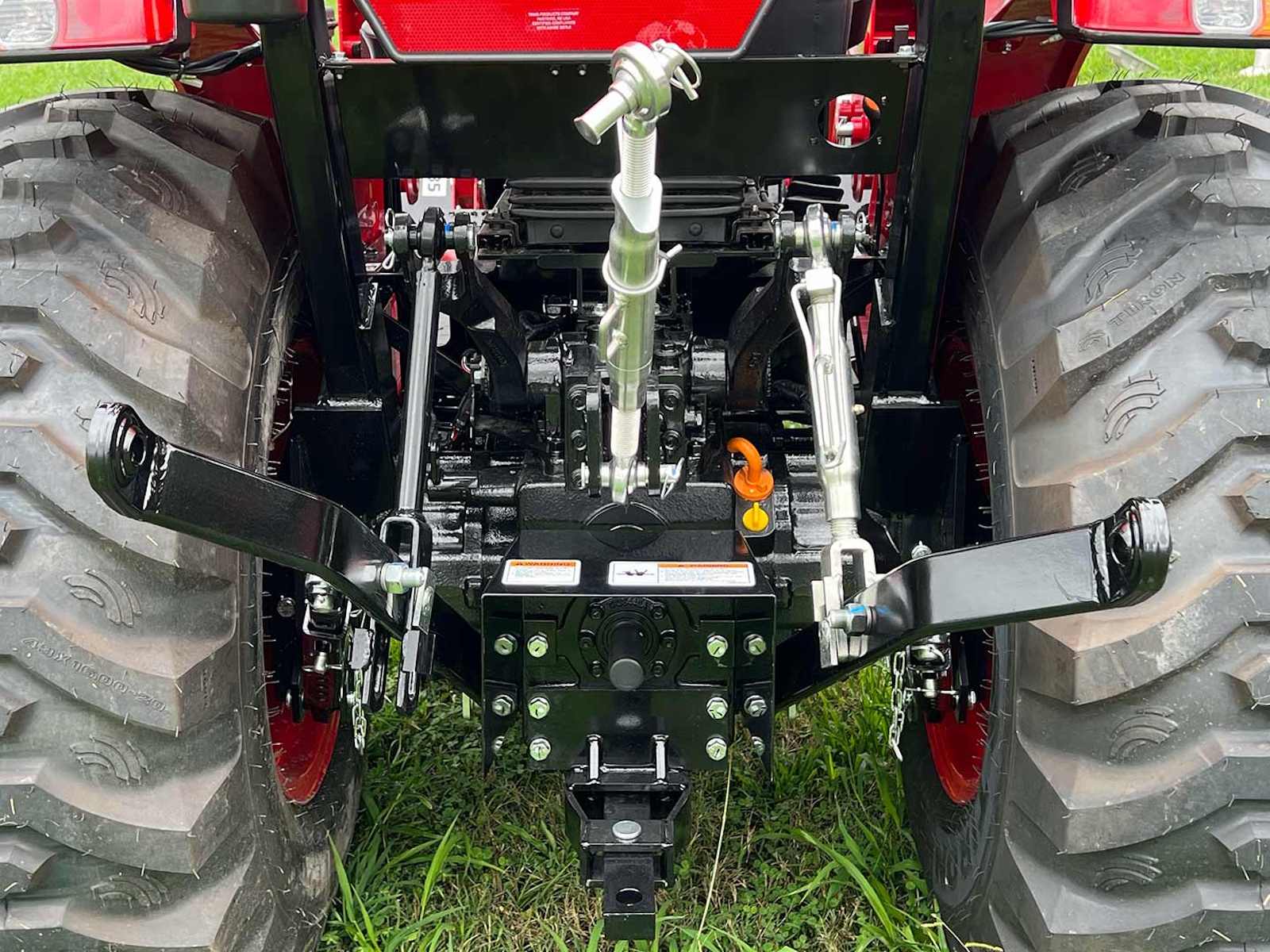

- Don’t let the size fool you. The T3025 ROPS offers 3,307lb of hitch lift capacity of and 2,200lb of bucket lift capacity.

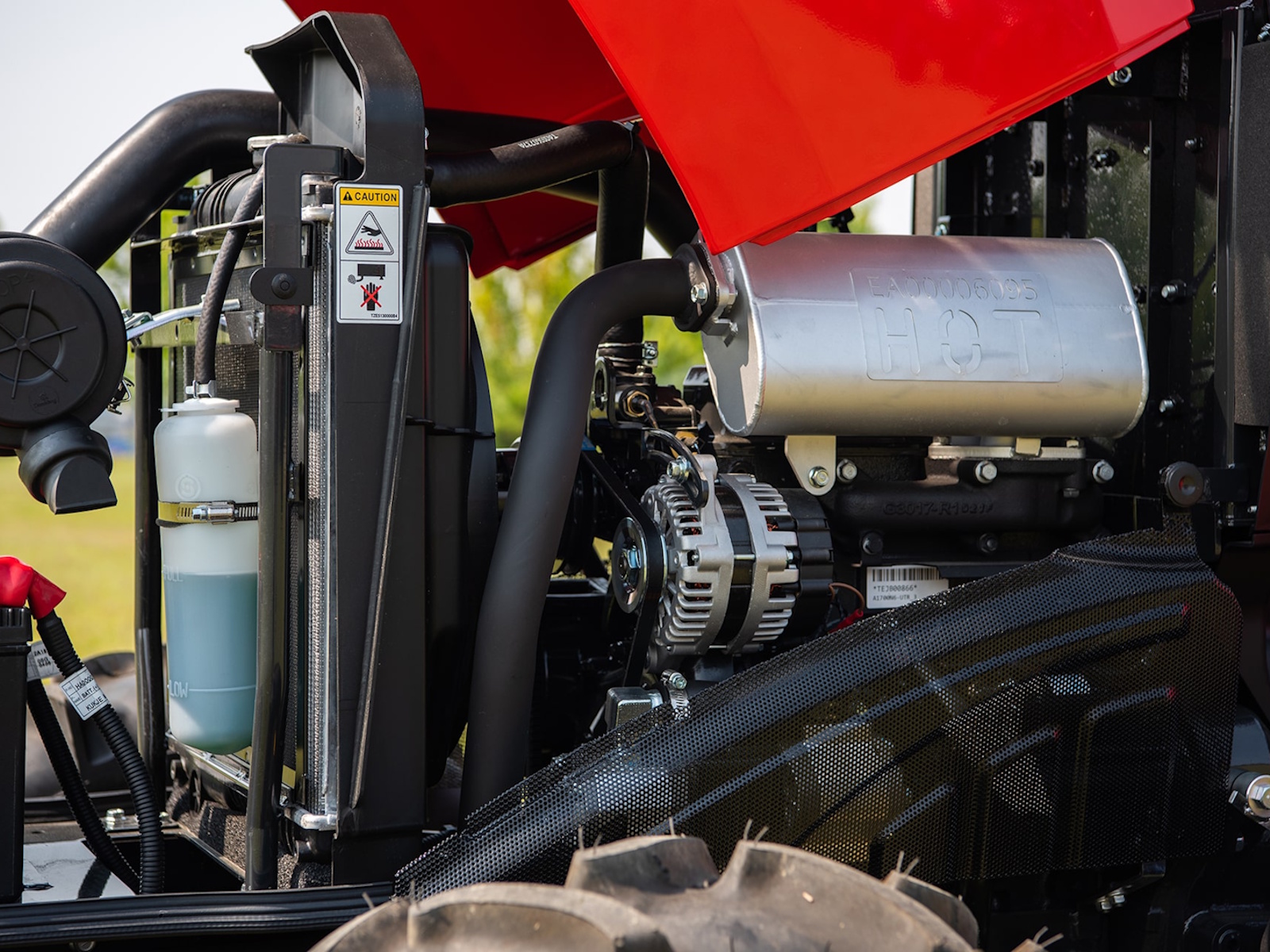

TYM power
- Our TYM diesel is not just smooth, quiet and Tier 4 Certified. It puts out 24 engine hp and 21 PTO hp. Plus it’s covered by our 6-year powertrain warranty.

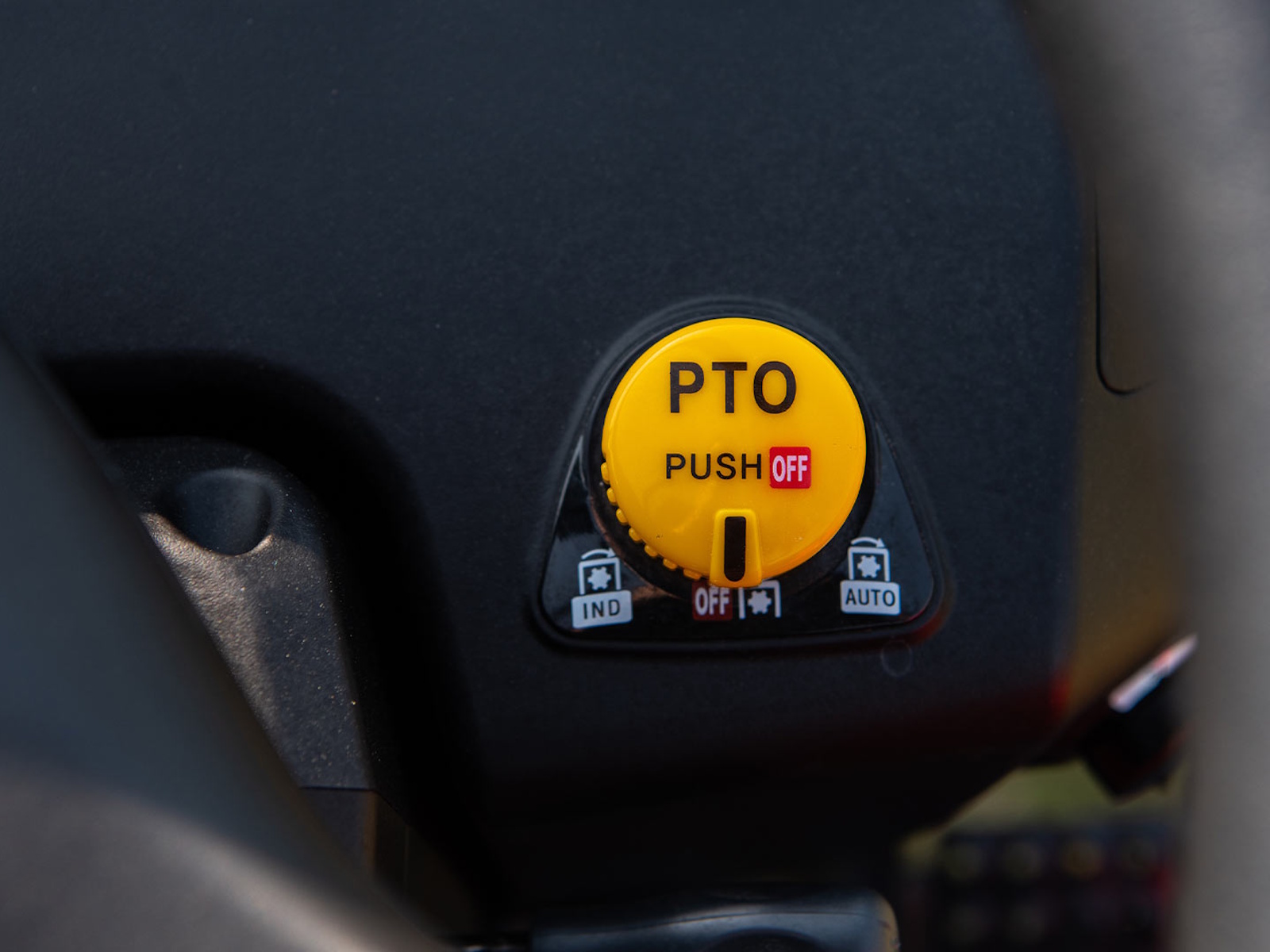

Simple PTO
- The Power Take Off (PTO) switch is designed to engage and disengage easily. This will help you with smoother operation and less jerking when using attachments.
Control
- The ergonomic joy-stick allows for better control for multiple functions, reducing muscle strain during long hours in the field.
Info
Industry
Agriculture
Make
TYM Tractors
Model
T3025
Trim
Base
Year
2026
MSRP
N/A
Category
Tractor
Subcategory
Compact
Specs
Engine
Manufacturer: TYM T1700N6
Engine Type
Natural aspiration
Power/Horsepower
Engine: 24 hp | PTO: 21 hp
RPM
Rated engine speed: 2100 rpm
Cylinders
No. of cylinders: 3
Displacement
104.5 cu. in. | 1714 cc
Alternator
12V, 50A
Fuel System
IDI
Family/Type
Pump type: Dual gear pump
Notes
Implement flow: 7.5 gpm | Category, 3-point hitch: I | Hitch lift capacity: 3307 lb | Hitch lift capacity at 24 inches behind link ends: 2425 lb | Lift control type: Position | No. of standard remote valves: Loader: 4 / Rear: 0 (Optional, up to 4) | No. of speeds: 2515R: F12 x F12 2515H: 3-Range | Max. traveling speed: 2515R: 11.7 mph (18.8 km/h) 2515H: 16.7 mph (26.8 km/h) | Coolant: 5.3 qt | Crankcase: 4.5 qt | R1 Agricultural - Front: 8-16 | R1 Agricultural - Rear: 12.4-24 | R3 Turf - Front: 27x8.5-15 | R3 Turf - Rear: 41x14.00 | R4 Industrial - Front: 10-16.5 | R4 Industrial - Rear: 420/70-24
Steering
Flow: 4.0 gpm | Hydrostatic
Transmission
Type: 2515R: Synchromesh 2515H: HST | Hydraulics system: 8.9 gal -34 L (Synchro) -9.8 gal | 37 L (HST)
Wheels
Brakes
Wet, Multi disc
Clutch
Dry single plate / N/A
PTO Type
Type: Independent | Control: Electric/Hydro | Rear: 540 rpm

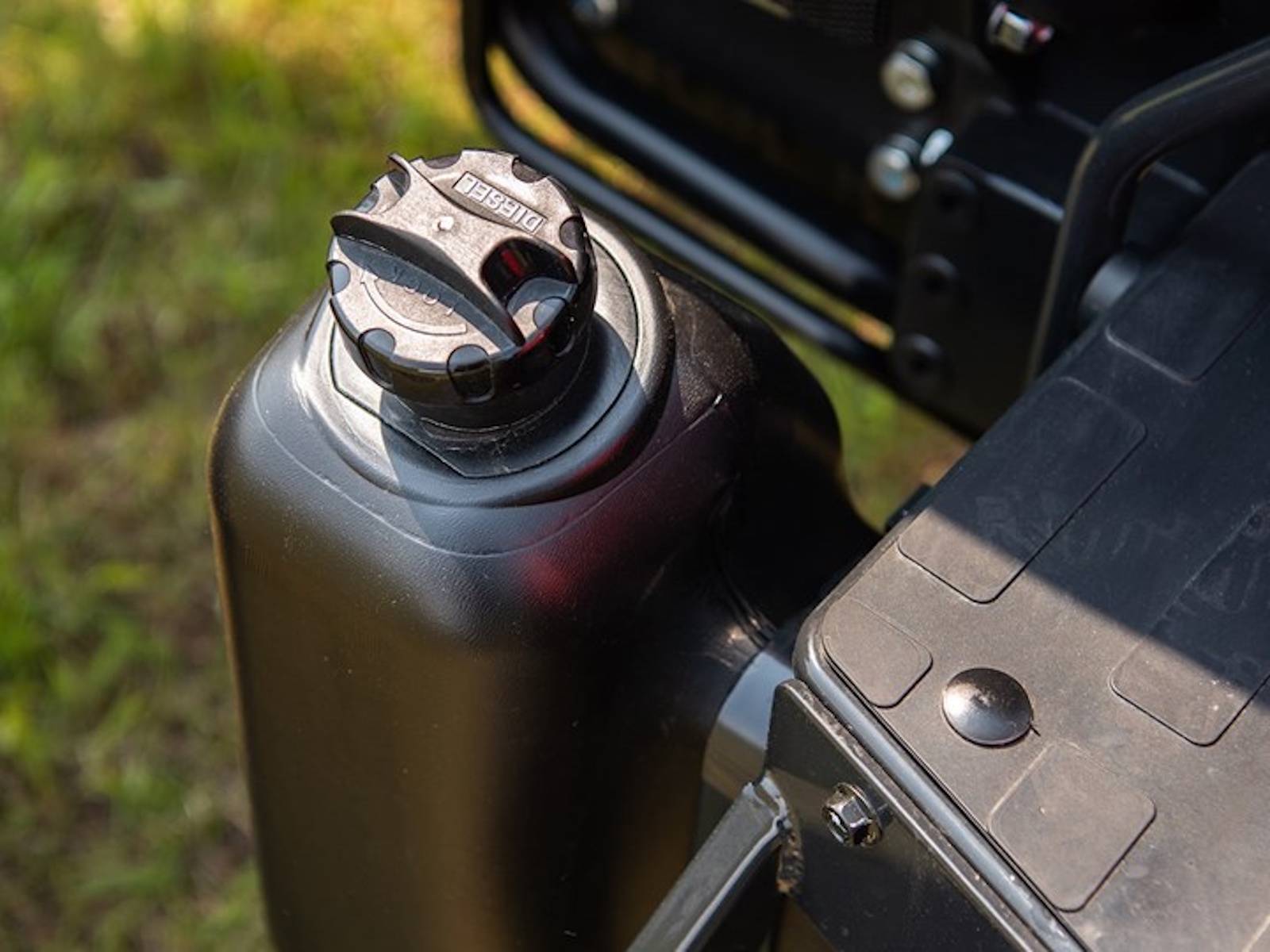

Fuel Capacity
8.7 gal
Length
With 3-point hitch: 121 in.
Width
56.3 in
Wheelbase
65.7 in.
Height
To top of ROPS: 97.2 in
Ground Clearance
Min: 14.4 in
Turning Radius
Min. turn radius without brakes: 105.5 in. / 2680 mm
Weight
With ROPS: 1347 kg | 2969.6 lb
Fuel Type
Diesel
