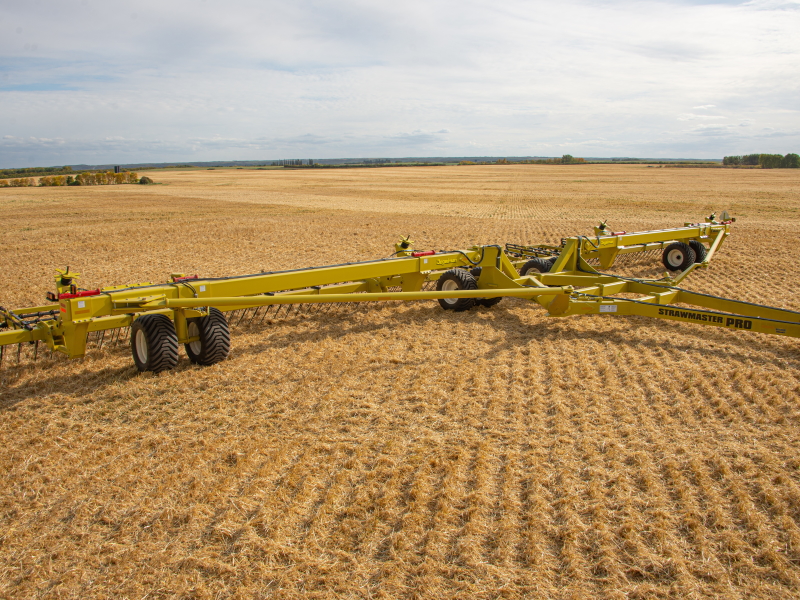

2023 Degelman SMP80 Base

STRAWMASTER PRO

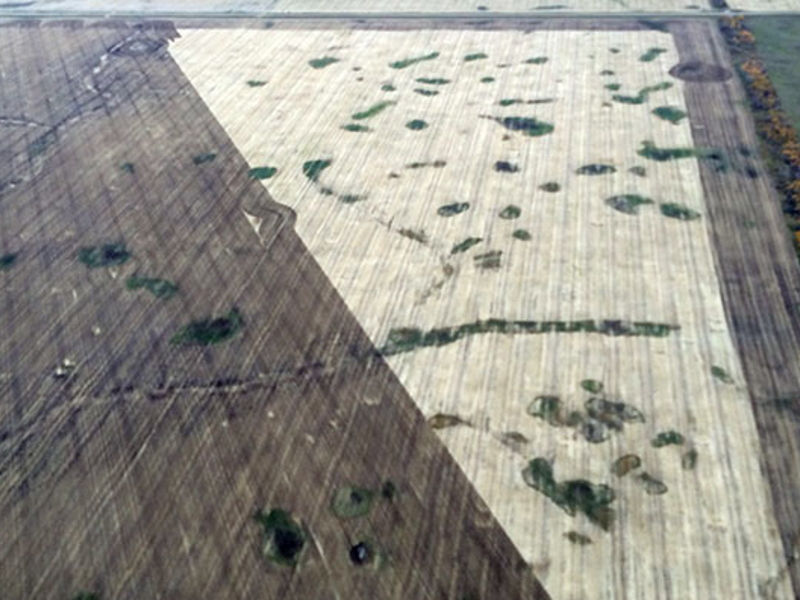

In today’s farming, time is precious. We have lots of land to cover, with a relatively short growing season. Our leading farmers have been waiting for a tool to help warm the soil and promote effective seed germination. The Pro, with its incredible tine penetration, not only rakes straw, but moves ground, blackening up the field, stimulating plant growth when it’s most critical. The Strawmaster Pro is a lot more than a big harrow.

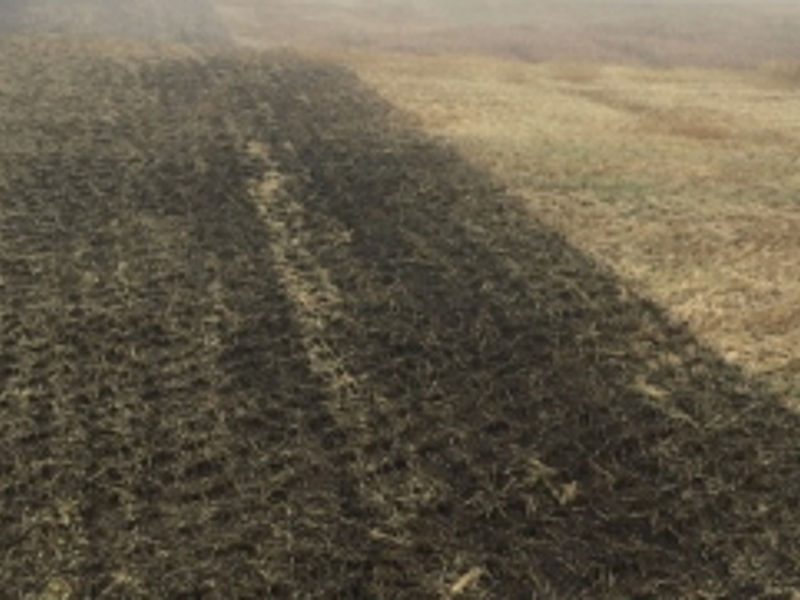

Harrowing Becomes Light Tillage

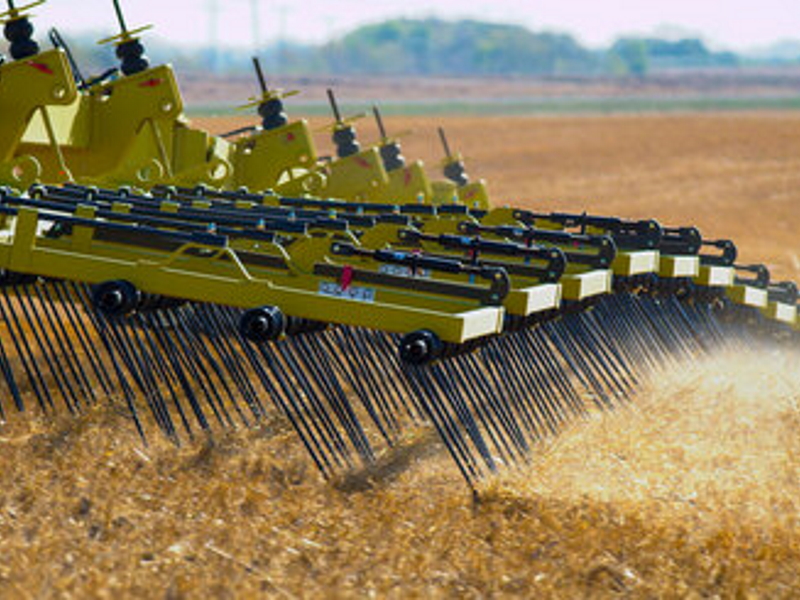

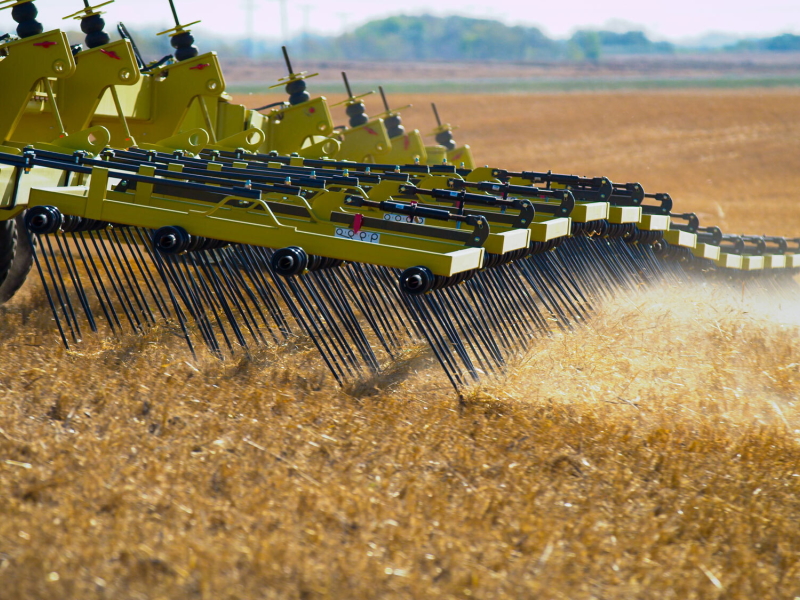

The Degelman Strawmaster Pro is a revolutionary machine designed for both straw management or light tillage applications. With 30 inch long tines placed in 4 rows, this machine is beyond any other harrow bar. The Strawmaster Pro will shatter straw, control weeds, rake flax straw, and incorporate seed and chemicals or act as light tillage.

Contouring Frame

Under float or under pressure, the harrow sections are designed for flexibility. The spring bars are positioned along the sides of the harrow frame providing an even distribution of pressure to the frame. The spring bars can then flex In response to counter pressure from the land contours with each section rising over hills and falling into hollows.

Unique Adjustment for Harrow Sections

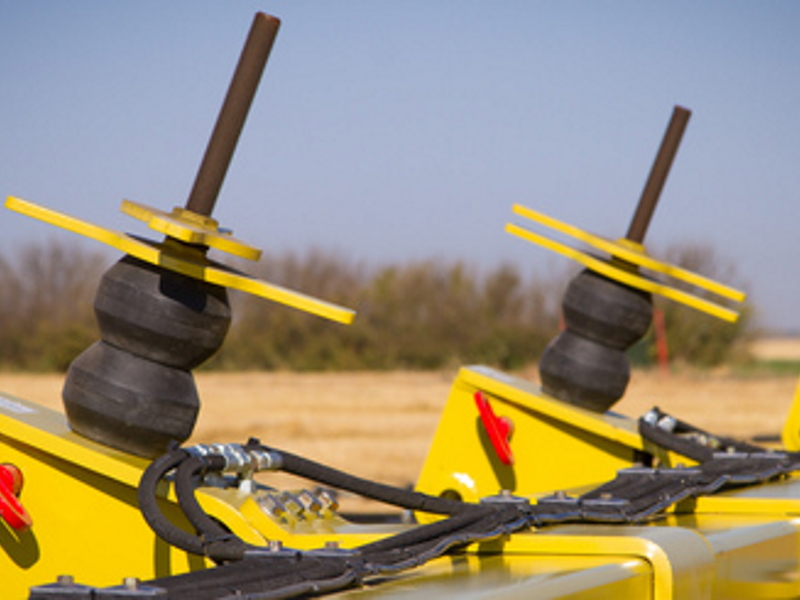

The Strawmaster Pro is equipped with an adjusting rod and arm located on a rubber dampening system. This will allow for harrow frame sections adjustment to ensure that they are running parallel to the ground.

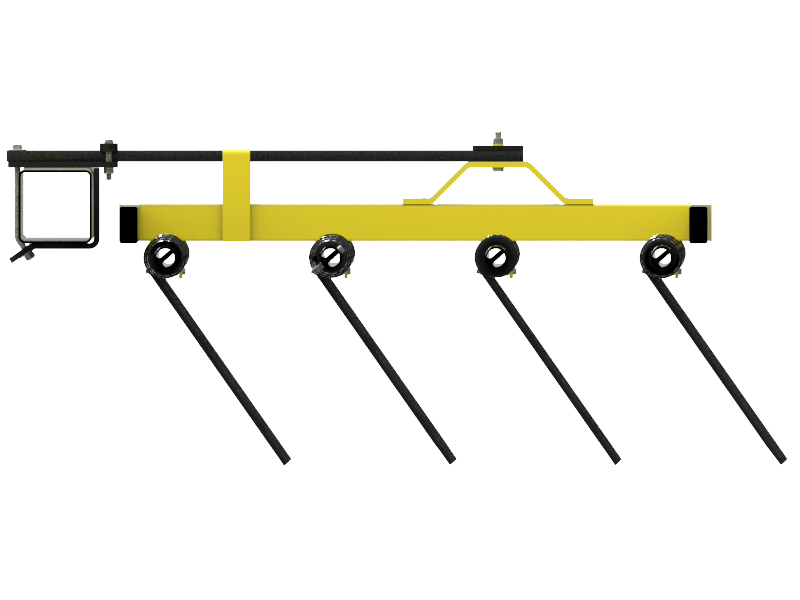

Patented Torsion Technology

Simply rotate the 8” x 8” beam
hydraulically and apply more pressure
through the spring bars. Strawmaster
works the way you want it to.

Alliance Tires

The Alliance 328 HS (High Speed Flotation I-328) is designed with good selfcleaning
characteristics, which is suitable for on and off-the-road agricultural service
on trailers and implements. The high load capacity and low inflation pressure
of the tire results in high degree of agricultural soil protection, as well as low
rolling resistance on both, on and off-road uses. It’s strong nylon construction and
compounds ensure long life.

Solid Truss Autofold

The solid truss on the Strawmaster Pro allows for sharp turning while maintaining a rigid connection between the hitch and wing sections - no breaking cables. This system allows you to back up and maneuver out of tight situations.

Put away the grease gun. The window for spring and fall work is quick and unforgiving. Give yourself the upper hand with game-changing, maintenance-free technology.

You may have noticed, Degelman has made its mark in the industry by over doing things. Making our machines big and heavy, developing practical solutions and holding tight manufacturing tolerances, simply makes Degelman machines perform better, last longer with less problems.

Exclusive Self-Lubricated, Zero Maintenance Bushing

These bushings, manufactured from a friction liner applied on a glass fiber structure, have excellent friction properties and improved wear resistance without external lubrication, even on high loads.

Bushing Seal

The wiper edge removes even the toughest dirt and contaminants from the pin, keeping the system running clean and at its peak performance. The metal enclosure ensures a secure fit in the open housing, preventing expulsion of the wiper, even under extreme
